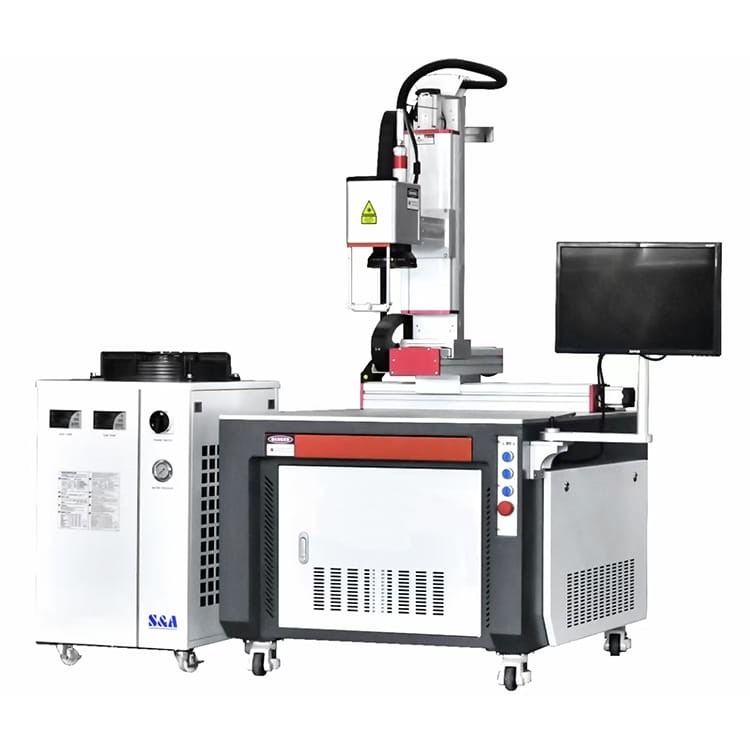

Continuous 1000w 1500w 2kw Fiber Laser Welding Machine For Lithium Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BW1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-BW1000W | Laser Power: | 1KW 1.5KW 2KW 3KW |
|---|---|---|---|
| XY Travel: | 400*300MM | Z Travel: | 300MM |
| Control Method: | Control Card And Computer | Maximum Depth Of Weld: | 2mm |
| Fiber Cable Length: | 10m | Working Voltage: | 220V/32A |
| Highlight: | Continuous Battery Laser Welding Machine,Lithium Battery Fiber Laser Welding Machine,10m Battery Laser Welding Machine |
||
Product Description
Continuous 1000w 1500w 2kw Fiber Laser Welding Machine For Lithium Battery Pack
The laser welding machine is used to weld all kinds of metal materials. It can realize stainless steel mirror characters,stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, precision aluminum characters, iron paint characters, etc. In addition, laser welding machines can also be used in lighting and mold industries, communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.
Features:
1. Designed with compact machine body and handheld welding head, this laser welding machine is convenient to use and makes the welding process more flexible.
2. With the function of automatic laser welding, this machine has fast welding speed, about 2-10 times faster than traditional welding machines.
3. Adopting simple control panel, this laser welding machine is easy to learn and simple to operate. No certificate is needed to operate it for beginners.
4. The finished welding seam is smooth and almost doesn’t need any further polishing process.
Battery laser welding machine parameters
|
No
|
Item
|
XW-BW1000W
|
XW-BW1500W
|
XW-BW2000W
|
XW-BW3000W
|
|
1
|
Laser Power
|
1000W
|
1500W
|
2000W
|
3000W
|
|
2
|
Voltage
|
Single phase 220V/50Hz 3-phase 380V/50Hz
|
|||
|
3
|
Control Method
|
Control card and computer
|
|||
|
4
|
XY Travel
|
Customizable, Max 700*500mm
|
|||
|
5
|
Z Travel
|
Customizable, Max 400mm
|
|||
|
6
|
R Axis
|
Optional, 360° rotation
|
|||
|
7
|
Laser Source Brand
|
RAYCUS/JPT
|
|||
|
8
|
Position Accuracy
|
±0.02mm
|
|||
|
9
|
Repeatability Accuracy
|
±0.01mm
|
|||
|
10
|
Motion Source
|
Servo motor
|
|||
|
11
|
Max Speed
|
500mm/s
|
|||
|
12
|
Welding Penetration
|
0.1-3.0mm
|
|||
|
13
|
Cooling Method
|
Water cooling 1P-3P
|
|||
|
14
|
Laser Wavelength
|
1080nm
|
|||
|
15
|
Observation System
|
Red light and CCD system
|
|||
|
16
|
Consumables
|
Protection lens, purified water, protection gas
|
|||
|
17
|
Weight
|
About 450kg
|
|||
High-performance Laser Generator & Industrial Control Computer
The JPT is China famous brand of laser generator.
JPT’s single-mode continuous fiber laser is an optimized combination of optical, mechanical, electrical, and soft. Through the control interface and Jept’s standard software, the laser’s operating status can be monitored and alarmed in real time. Collect and record operating data. The laser adopts water-cooled heat dissipation and rack-mounted chassis design. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, flexible fiber optic transmission output, and easy integration for customers. It is industrial laser cutting, welding and other Ideal light source for application.
Chiller Controller
It is very important to match a suitable chiller for the laser welding machine. The cooling performance and temperature control accuracy of the chiller are closely related to the stability of the laser output.
Compressed Air & Protect Gas
Compressed air is used to protect the lens of the laser welding head, and protect gas is used to protect the workpiece to be welded from oxidation
Buttons
The welding machine have Emergency Stop button, Start button, and Stop button for fast operation.
