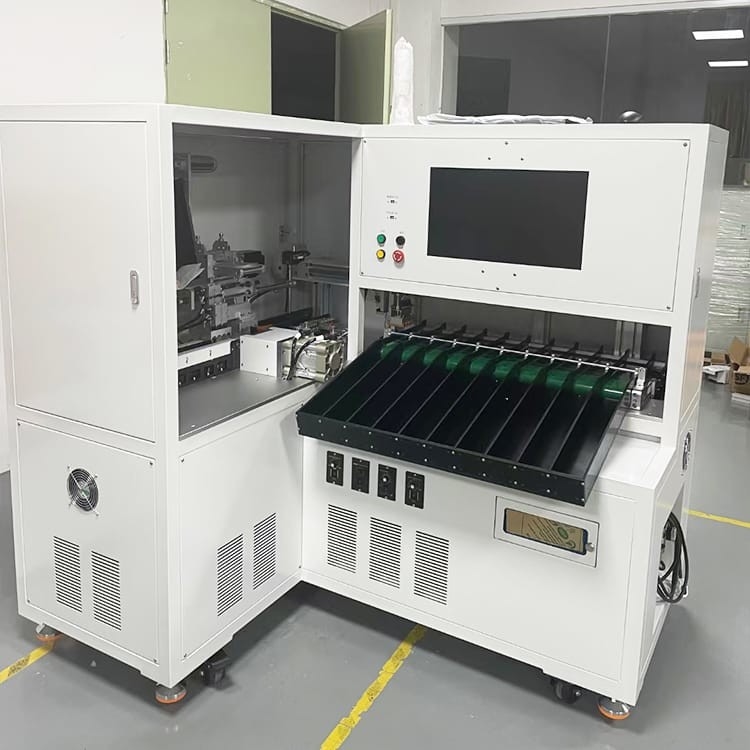

High Speed Battery Barly Paper Sticking Machine Automatic Sorting For 18650 Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| IR Tester: | Precision Voltage Resistance Tester (HK3561) | Battery Type: | Cylindrical Cells, 18650, 21700... |
|---|---|---|---|
| Sticking Channel: | 2 - 4 | Sorting Channel: | 5 - 21 |
| Pressure: | 0.5-0.8MPa | Efficiency: | 60-70PPM |
| Dimension: | 1500L X 700W X 1600H Mm | Batteries Sorting Parameters: | Open Circuit Voltage & AC Resistance |
| Open Circuit Voltage Accuracy: | ± 0.05% Rdg Display Resolution: 0.1 Millivolt | AC Resistance Accuracy: | ± 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Highlight: | Battery Barly Paper Sticking Machine,Battery Cell Barly Paper Sticking Machine,18650 Battery Cell Sorting Machine |
||
Product Description
High Speed Battery Barly-Paper Sticking Machine With Automatic Battery Sort Machine For 18650 Battery Pack
Sticking and Sorting Machine Process
Filling the whole box of battery→Motor rotation→The cylinder pushes the battery out→Belt transport battery→Battery launch→Battery entering conveyor belt→Stop cylinder released→Lead screw drives cylinder battery team→The battery is full of four lead screws to shift the battery→Under cylinder pressure→Move the battery to the highland barley paper position→Secondary positioning of cylinder to battery→Barley paper pasted on stepper motor→Waste recovery→Finished battery to discharge chute→The cylinder pushes the battery onto the sorter belt→Battery launch→Test battery→After the battery is full, the manipulator grabs the battery→Battery sorting→Manual packing
Sticking and Sorting Machine Description
The sorting and battery insulation paper sticking machine is a kind of testing and sorting equipment which is suitable for cylindrical battery to be pasted first, then checked the internal resistance, voltage and other parameters. It is equipped with a high-precision internal resistance, voltage automatic testing system. According to the internal resistance set on the computer software, the equipment accurately sends the battery to the designated position according to the voltage value, and the system can equip with optional channel battery sorter which can realize (5 / 6 / 11 / 21) sorting. The overall design efficiency of this equipment is about 4500 electric cores per hour, the structure design is simple and generous, and the performance is stable.
Sticking and Sorting Machine Mechanical Structure
Compact structure design, beautiful appearance and small space occupation;
Manual packing and loading of equipment;
The equipment adopts high quality and thick cold-rolled sheet metal, aluminum profile frame;
The equipment is equipped with universal movable casters, which makes it easy to move and handle the equipment.
Sticking and Sorting Machine Specification
| Electricity Source | 220VAC±10%/50Hz |
| Power | 1KW |
| Working Gas Source | 0.5-0.8MPa |
| Adaptation Battery | 18650,26650,32650,21700 ect |
| Efficiency | 60-70PPM |
| Dimension | 1500L X 700W X 1600H mm |
| Instrument | Precision voltage resistance tester (HK3561) |
| Batteries Sorting Parameters | Open circuit voltage & AC resistance |
| Open Circuit Voltage Accuracy |
± 0.05% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.01 milliohm |
| Channel | 13 channel |
| Linear Guide Rail | HIWIN |
| PLC | Motion Controller |
| Solenoid Valve | AirTAC |
| Cylinder | AirTAC |
| Noise | ≤65db |
| Equipment Crop Mobility | ≥95% |
