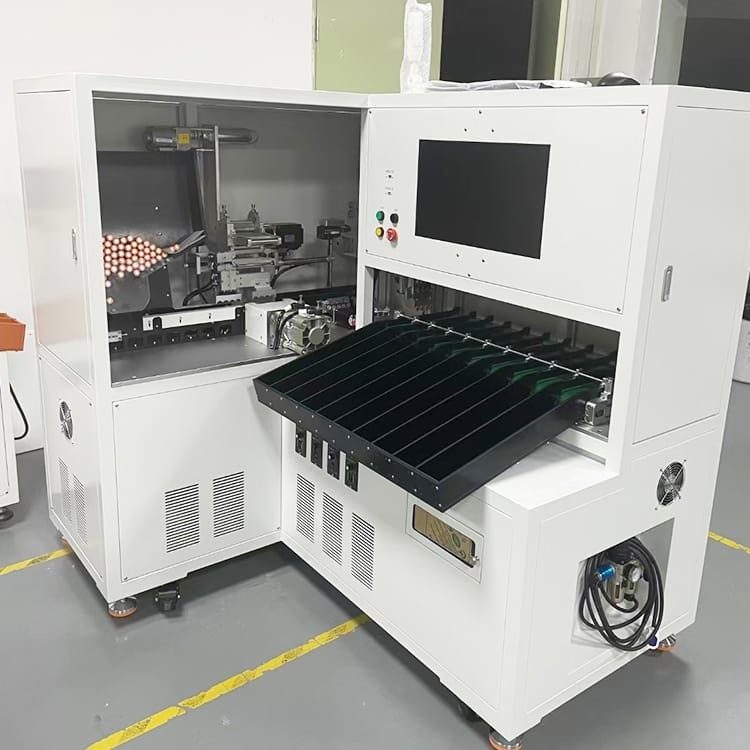

Automatic Battery Sorting Machine Insulation Paper Sticker Machine For Cylindrical Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| IR Tester: | Precision Voltage Resistance Tester (HK3561) | Cell Type: | Cylindrical, 18650,26650,32650,21700 Optional |
|---|---|---|---|
| Sticking Channel: | 2 To 4 | Sorting Channel: | 5 To 21 |
| Pressure: | 0.5-0.8MPa | Efficiency: | 60-70PPM |
| Dimension: | 1500L X 700W X 1600H Mm | Batteries Sorting Parameters: | Open Circuit Voltage & AC Resistance |
| Open Circuit Voltage Accuracy: | ± 0.05% Rdg Display Resolution: 0.1 Millivolt | AC Resistance Accuracy: | ± 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Highlight: | 0.8MPa Battery Sorting Machine,220V AC Battery Sorting Machine,Cylindrical Battery Paper Sticker Machine |
||
Product Description
Automatic Battery Sorting And Insulation Paper Sticking Sticker Machine For Cylindrical Battery Packing
Sticking and Sorting Machine Description
The sorting and battery insulation paper sticking machine is a kind of testing and sorting equipment which is suitable for cylindrical battery to be pasted first, then checked the internal resistance, voltage and other parameters. It is equipped with a high-precision internal resistance, voltage automatic testing system. According to the internal resistance set on the computer software, the equipment accurately sends the battery to the designated position according to the voltage value, and the system can equip with optional channel battery sorter which can realize (5 / 6 / 11 / 21) sorting. The overall design efficiency of this equipment is about 4500 electric cores per hour, the structure design is simple and generous, and the performance is stable.
Why need the sticking machine?
For the cylindrical cells, the positive terminal and negative terminal are very closed, have the risk of short circuit when assembly to a pack by nickel strip. Especially for those battery pack without a plastic holder.
If we paste a insulation paper on the positive terminal, will avoid the risk of sort circuit.
Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balanced.
Sticking and Sorting Machine Specification
| Electricity Source | 220VAC±10%/50Hz |
| Power | 1KW |
| Working Gas Source | 0.5-0.8MPa |
| Adaptation Battery | 18650,26650,32650,21700 ect |
| Efficiency | 60-70PPM |
| Dimension | 1500L X 700W X 1600H mm |
| Instrument | Precision voltage resistance tester (HK3561) |
| Batteries Sorting Parameters | Open circuit voltage & AC resistance |
| Open Circuit Voltage Accuracy |
± 0.05% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.01 milliohm |
| Channel | 13 channel |
| Linear Guide Rail | HIWIN |
| PLC | Motion Controller |
| Solenoid Valve | AirTAC |
| Cylinder | AirTAC |
| Noise | ≤65db |
| Equipment Crop Mobility | ≥95% |
