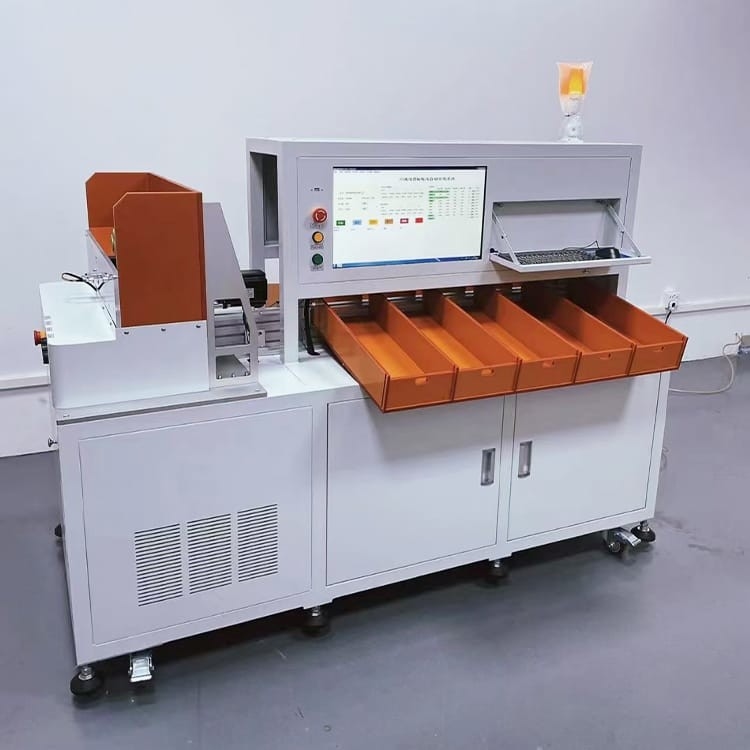

10 Channel Cylindrical Cell Sorting Machine For Big Cylindrical Cell 33138 33140
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channel: | 10 Channels | User Interface: | Computer |
|---|---|---|---|
| Cell Type: | 33138 33140 | Efficiency: | 80PPM |
| Voltage Supply: | 220V±10%/50Hz±10% | Power: | <800W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | Tester: | HK3561 |
| Highlight: | 10 Channel Cylindrical Cell Sorting Machine,33140 Cylindrical Cell Sorting Machine,DC voltage Cylindrical Cell Sorting Machine |
||
Product Description
10 Channel Cylindrical Cell Sorting Machine For Big Cylindrical Cell 33138 33140
Cell Sroting Machine Features
XW-BS110 Cylindrical battery sorter, is the internal resistance, voltage sorting equipment, for 33138 33140 and similar cells.
Kindly set the desired internal resistance, voltage on the operation screen,the equipment will accurately sort the battery into the correspoding channels.
The system can perform the 9 GO channel and 1 NG channel sorting.It's equipped with whole hopper feeding, automatic sorting, manually receiving, saving 2-3 manpower meanwhile.
Why need the sticking machine?
For the cylindrical cells, the positive terminal and negative terminal are very closed, have the risk of short circuit when assembly to a pack by nickel strip. Especially for those battery pack without a plastic holder.
If we paste a insulation paper on the positive terminal, will avoid the risk of sort circuit.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Large size LCD screen/Touch screen |
| Battery Types |
Cylindrical Cell (33138 33140) |
| Receiving Channel | 10 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 80PPM |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000pcs/h |
Cell Sroting Machine Operation

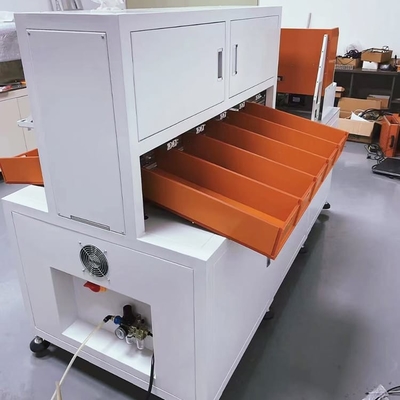

Structure of Sorter
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
5) The equipment is equipped with universal movable casters, which can move easily when shifting.
