11 Channel Battery Cell Sorting Machine Battery Sticking Highland Barley Paper Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Cell Support: | 18650,26650,32650,21700 Optional | Max Sticking Channel: | 4 |
|---|---|---|---|
| Max Sorting Channel: | 21 | Working Gas Source: | 0.5-0.8MPa |
| Efficiency: | 60-70PPM | Dimension: | 1500L X 700W X 1600H Mm |
| Instrument: | Precision Voltage Resistance Tester (HK3561) | Batteries Sorting Parameters: | Open Circuit Voltage & AC Resistance |
| Open Circuit Voltage Accuracy: | ± 0.05% Rdg Display Resolution: 0.1 Millivolt | AC Resistance Accuracy: | ± 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Highlight: | 11 Channel Battery Cell Sorting Machine,PLC computer Battery Cell Sorting Machine,Battery Sticking Highland Barley Paper Machine |
||
Product Description

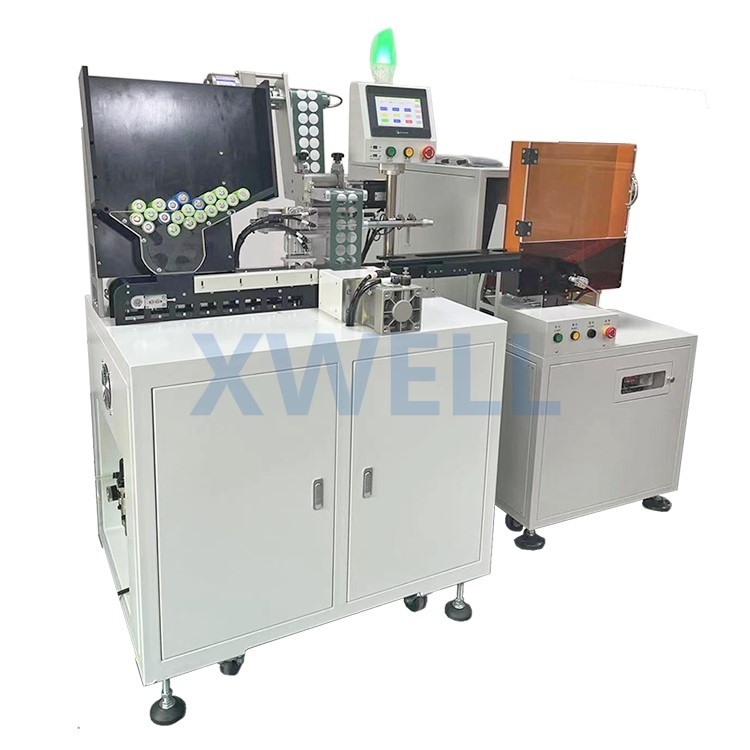

Automatic Paste Highland Barley Paper Machine Connected Lithium Battery Automatic Eleven Channel Sorting Machine
Sticking and Sorting Machine Description
XW-BSM-BS11 Cylindrical battery (18650, 26650, 21700...) sticking highland barley paper machine is an automatic equipment for testing and sorting cylindrical batteries after sticking highland barley paper first. This equipment is an automatic equipment for testing and sorting by the PLC battery first paste the highland barley paper. This equipment completes the test and sorting function by PLC computer and PLC, and completes about 4,000 finished cylindrical cells per hour. The mechanical structure design is simple and elegant, and the system performance is stable. In the current market, it is one of the most cost-effective equipment for sticking highland barley paper and sorting the cylindrical battery.
Sticking and Sorging Machine Work Process
Filling the whole box of batteries → Motor rotation → The cylinder pushes the battery out of a belt to transport the battery → The battery is pushed out → The battery enters the conveyor belt - the stopper cylinder is released → The screw drives the cylinder battery to form a group → The battery is full of 4 screw rods to move the battery →Press down the cylinder → move the battery to the position where the highland barley paper is attached → the cylinder repositions the battery > the stepper motor pastes the highland barley paper → waste recycling → the finished battery goes to the feeding chute → the cylinder pushes the battery to the sorting machine belt (printing code Optional) → battery push out → test battery -> the manipulator grabs the battery after the battery is full 5 → 10 gears are sorted and manually packed.
Sticking and Sorting Machine Features
1. This equipment is a kind of automatic device for detecting and sorting cylindrical battery by PLC after first sticking highland barley paper.
2. The equipment adopts PLC computer and PLC detection and sorting, which can complete about 4000 cylindrical electrolytic cells per hour.
3. Dual machine integrated, high degree of automation, reduce intermediate links, save manpower.
4. The operation is simple and easy to learn, without professional personnel.
5. HD LCD touch screen, man-machine interaction interface more convenient operation.
6. Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design, stable performance, greatly extended service life.
7. Simple and generous mechanical structure design, stable system performance. This is a relatively high cost performance on the market at present.
8. The equipment is made of high quality thick cold rolled metal plate and aluminum frame.
9. The equipment is equipped with universal movable casters, which makes it easy to move and carry.
Sticking and Sorting Machine Specification
| Electricity Source | 220VAC±10%/50Hz |
| Power | 1KW |
| Working Gas Source | 0.5-0.8MPa |
| Adaptation Battery | 18650,26650,32650,21700 ect |
| Efficiency | 60-70PPM |
| Dimension | 1500L X 700W X 1600H mm |
| Instrument | Precision voltage resistance tester (HK3561) |
| Batteries Sorting Parameters | Open circuit voltage & AC resistance |
| Open Circuit Voltage Accuracy |
± 0.05% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.01 milliohm |
| Channel | 13 channel |
| Linear Guide Rail | HIWIN |
| PLC | Motion Controller |
| Solenoid Valve | AirTAC |
| Cylinder | AirTAC |
| Noise | ≤65db |
| Equipment Crop Mobility | ≥95% |
Why need the sticking machine?
For the cylindrical cells, the positive terminal and negative terminal are very closed, have the risk of short circuit when assembly to a pack by nickel strip. Especially for those battery pack without a plastic holder.
If we paste a insulation paper on the positive terminal, will avoid the risk of sort circuit.
Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balanced.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.
