PLC Lithium Battery Sorting Machine Insulating Paper Paste Machine For Lithium Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Sticking Channels: | 2 To 4 | Sorting Channels: | 5 To 21 |
|---|---|---|---|
| Cell Model: | 18650,26650,32650,21700 Optional | Working Gas Source: | 0.5-0.8MPa |
| Efficiency: | 60-70PPM | Dimension: | 1500L X 700W X 1600H Mm |
| Instrument: | Precision Voltage Resistance Tester (HK3561) | Batteries Sorting Parameters: | Open Circuit Voltage & AC Resistance |
| Open Circuit Voltage Accuracy: | ± 0.05% Rdg Display Resolution: 0.1 Millivolt | AC Resistance Accuracy: | ± 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Highlight: | PLC Lithium Battery Sorting Machine,13 channel Lithium Battery Sorting Machine,Lithium Battery paper pasting machine |
||
Product Description

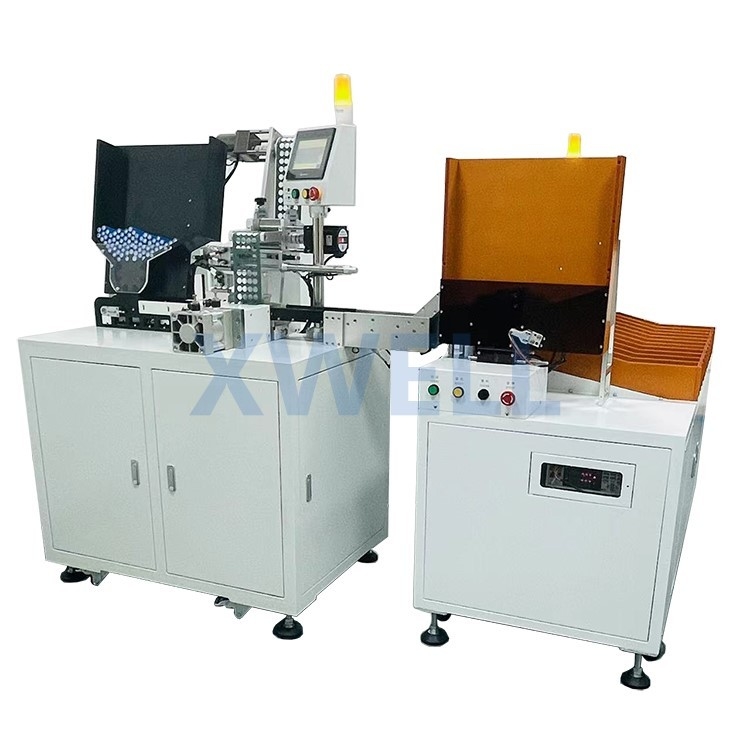

Lithium Battery Sorting Machine And Insulating Paper Paste Machine Used For Lithium Battery Cylinder
Sticking and Sorting Machine Description
The sticking machine and the sorting machine are connected together.
The two machines connected by conveyer and running fully automaticlly.
The sticking machine is used for sticking highland barley paper on positive terminal of the cell for protection and insulation.
The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to different channels according to the setting.
Sticking and Sorting Machine Features
1. This equipment is a kind of automatic device for detecting and sorting cylindrical battery by PLC after first sticking highland barley paper.
2. The equipment adopts PLC computer and PLC detection and sorting, which can complete about 4000 cylindrical electrolytic cells per hour.
3. Dual machine integrated, high degree of automation, reduce intermediate links, save manpower.
4. The operation is simple and easy to learn, without professional personnel.
5. HD LCD touch screen, man-machine interaction interface more convenient operation.
6. Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design, stable performance, greatly extended service life.
7. Simple and generous mechanical structure design, stable system performance. This is a relatively high cost performance on the market at present.
8. The equipment is made of high quality thick cold rolled metal plate and aluminum frame.
9. The equipment is equipped with universal movable casters, which makes it easy to move and carry.
Sticking and Sorting Machine Specification
| Electricity Source | 220VAC±10%/50Hz |
| Power | 1KW |
| Working Gas Source | 0.5-0.8MPa |
| Adaptation Battery | 18650,26650,32650,21700 ect |
| Efficiency | 60-70PPM |
| Dimension | 1500L X 700W X 1600H mm |
| Instrument | Precision voltage resistance tester (HK3561) |
| Batteries Sorting Parameters | Open circuit voltage & AC resistance |
| Open Circuit Voltage Accuracy |
± 0.05% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.01 milliohm |
| Channel | 13 channel |
| Linear Guide Rail | HIWIN |
| PLC | Motion Controller |
| Solenoid Valve | AirTAC |
| Cylinder | AirTAC |
| Noise | ≤65db |
| Equipment Crop Mobility | ≥95% |
Why need the sticking machine?
For the cylindrical cells, the positive terminal and negative terminal are very closed, have the risk of short circuit when assembly to a pack by nickel strip. Especially for those battery pack without a plastic holder.
If we paste a insulation paper on the positive terminal, will avoid the risk of sort circuit.
Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balanced.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.
