Combined Battery Sticking Machine 11 Channel Battery Cell Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Sticking Machine Channel: | 2-4 | Sorting Machine Channel: | 5-21 |
|---|---|---|---|
| Cell Type: | 18650,26650,32650,21700 Ect | Working Gas Source: | 0.5-0.8MPa |
| Efficiency: | 60-70PPM | Dimension: | 1500L X 700W X 1600H Mm |
| Instrument: | Precision Voltage Resistance Tester (HK3561) | Batteries Sorting Parameters: | Open Circuit Voltage & AC Resistance |
| Open Circuit Voltage Accuracy: | ± 0.05% Rdg Display Resolution: 0.1 Millivolt | AC Resistance Accuracy: | ± 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Highlight: | Combined Sorting Battery Sticking Machine,1KW Battery Cell Sorting Machine,Battery Cell Sorting Machine 11 Channel |
||
Product Description

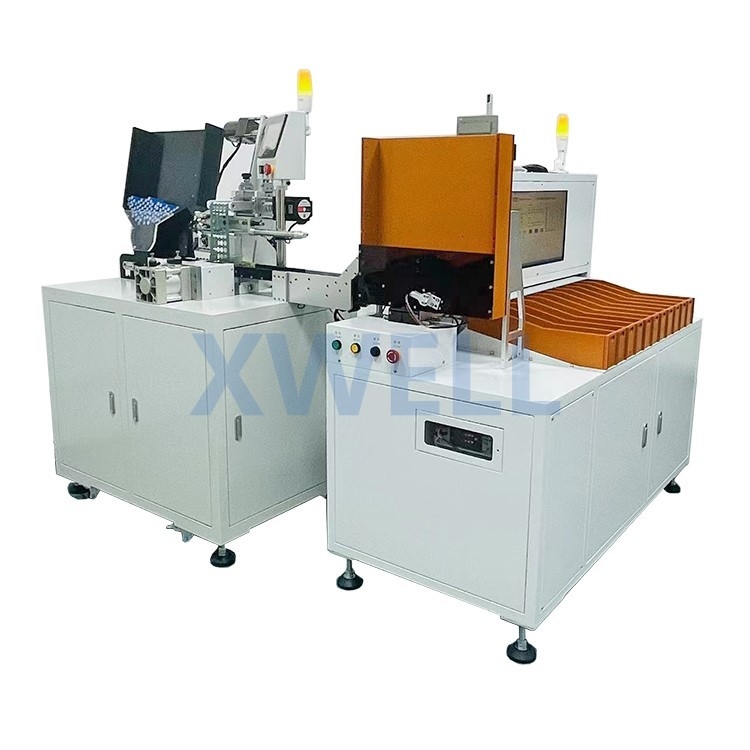

Combined Battery Sticking Machine and 11 Channel Sorting Machine for Cylindrical Cell 18650, 21700, 32650, 32700
Product Description
This machine combined two machines: the sticking machine and the sorting machine.
The two machines connected by convey and running fully automaticlly.
The sticking machine is used for sticking highland barley paper on positive terminal of the cell for protection and insulation.
The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to different channels according to the setting.
Product Features
1) Combined the sticking machine and sorting machine
2) Compact and reasonable equipment structure, beautiful appearance, small volume.
Simple equipment operation, workers can easily learning.
3) The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4) Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.
5) The device is equipped with universal movable casters, the device can easily move when it is displaced.
Product Specification
| Electricity Source | 220VAC±10%/50Hz |
| Power | 1KW |
| Working Gas Source | 0.5-0.8MPa |
| Adaptation Battery | 18650,26650,32650,21700 ect |
| Efficiency | 60-70PPM |
| Dimension | 1500L X 700W X 1600H mm |
| Instrument | Precision voltage resistance tester (HK3561) |
| Batteries Sorting Parameters | Open circuit voltage & AC resistance |
| Open Circuit Voltage Accuracy |
± 0.05% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.01 milliohm |
| Channel | 13 channel |
| Linear Guide Rail | HIWIN |
| PLC | Motion Controller |
| Solenoid Valve | AirTAC |
| Cylinder | AirTAC |
| Noise | ≤65db |
| Equipment Crop Mobility | ≥95% |
Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balanced.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.
