Semi Automatic BMS Tester Power Lithium Battery Pack Protective Board Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 14000 - 16500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | BMS TESTER | Type: | Semi-automatic Testing |
|---|---|---|---|
| Model No.: | PBTS24-120 | Number Of Test Strings: | 1-24 |
| Reference Voltage: | LiCoO3(3.8V) LiFePO4(3.0V) | Balanced Real Time Current: | 0-1000mA |
| Single Section Self Consumption: | 0-500uA | Over-discharge Protection Current Protection Value: | 1A-200A ±0.1 (continuous Long-term Discharge) |
| Loop Internal Resistance: | 0-500mΩ | Short Circuit Protection (more Than 6 Strings): | 0-9999us |
| Highlight: | Semi Automatic BMS Tester,Lithium Battery Pack BMS Tester,Semi Automatic bms testing equipment |
||
Product Description
Semi-Automatic BMS Tester Power Lithium Battery Pack Protective Board Testing Machine Management Inspection
Product Description
The semi-automatic BMS Tester test platform cooperates with 1-24 PBTS/PBTS(M) protection board testers. By replacing the test platform fixtures, the customer can realize single-person boarding and starting the test. After the test is completed, the platform will automatically mark the error point and manually take the board. The test process of the board change cycle. It can easily achieve the effect of single-person control of 20 protective board testers, saving labor and ensuring detection accuracy.
Features

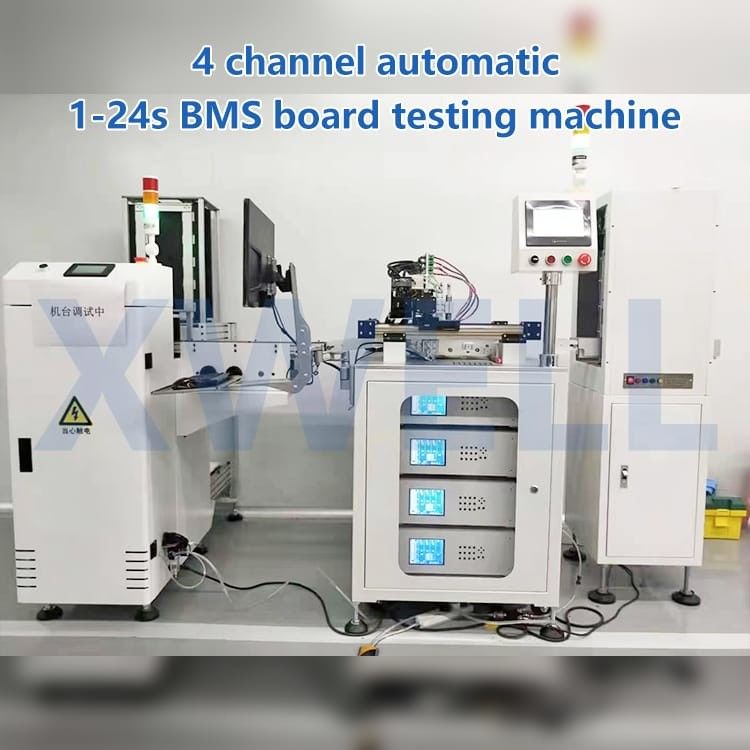

The automatic BMS Teater is used for automatic loading and automatic testing of the protection board. After the test is completed, the automatic unmanned test process of marking and automatic receiving is integrated. The equipment includes three parts: the loading machine, the test automation platform, and the receiving machine.
Why is it worth to have a protective board test instrument?
The protection board is soldered on the battery core to protect the battery core.
When the battery voltage is too high or too high during use.
Low, when the current is too large, and the voltage is inconsistent, the protection board will play its role to power off the entire battery.
Test fixtures that can often see the performance of various test protection boards, test fixtures can be roughly divided into two categories
Charge and discharge test (connected to the battery pack can charge and discharge OK, advantage: test efficiency is very high, basically one second can test one BMS.
Finished Disadvantages: Protection board charging and discharging protection performance is equivalent to no test) The second type of fixture is the basic performance test of the protection board (Advantages: It can be tested whether the voltage of the protection board and the over-current of the protection board are protected. Disadvantages: the test module is multi-effect
The rate is low, the single-section self-consumption can not be tested, and manual switching is prone to missed detection). It can be based on customers
The project of the household demand test is freely matched, and the accurate test can accurately test the performance parameters of the protection board.
The quick mode can quickly determine if the protection board parameters are within the setting range.
Specifications
| NO. | Items | Measuring Range | Accuracy |
| 1 | Number of test strings | 1-24 | |
| 2 | Reference voltage | LiCoO3(3.8V) LiFePO4(3.0V) | |
| 3 | Overcharge protection voltage | 0.5-5V | ±5mV |
| 4 |
Over discharge protection voltage
|
0.5-5V | ±5mV |
| 5 |
Overcharge recovery voltage (self recovery)
|
0.5-5V | ±5mV |
| 6 | Over discharge recovery voltage (self recovery) | 0.5-5V | ±5mV |
| 7 | Overcharge protection current | 1-40A | ±0.1A |
| 8 | Over discharge protection current | 1-150A | ±0.1A |
| 9 | Balanced opening voltage | 0.5-5V | ±5mV |
| 10 | Balanced real time current | 0-1000mA | ±1mA |
| 11 | Over current protection delay | 0-15S | ±1mS |
| 12 | Overcharge protection delay | 0-20S | ±1mS |
| 13 | Over discharge protection delay | 0-20S | ±1mS |
| 14 | Single section self consumption | 0-500uA | ±1uA |
| 15 | Loop internal resistance | 0-500mΩ | ±1mΩ |
| 16 | Short circuit protection (more than 6 strings) | 0-9999us | ±1uS |
|
Scope of Application:All hardware scheme protection boards and some software boards on the market (special test items need to
|
|||
