Automatic 18650 Lithium Battery Pack Spot Welder Electric Single Side Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7000-8000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Maximum Number Of Cells Loaded: | 300-600pcs (standard 18650 Lithium Cells) | X-axis Travel: | 400 Mm |
|---|---|---|---|
| Y-axis Travel: | 400 Mm | Maximum Spot Welding Speed: | 0.3s/point |
| Z Axis Travel: | 50 Mm | Control Method: | Microcomputer Control |
| Spot Welding Machine: | DC Inverter Welding Machine Power Supply | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | Lithium Battery Pack Spot Welder,Battery Pack Spot Welder 4000 W,Battery Single Side Spot Welding Machine |
||
Product Description

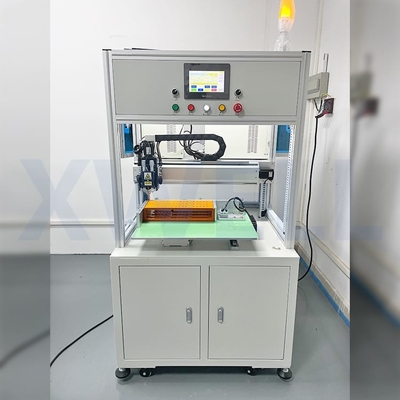

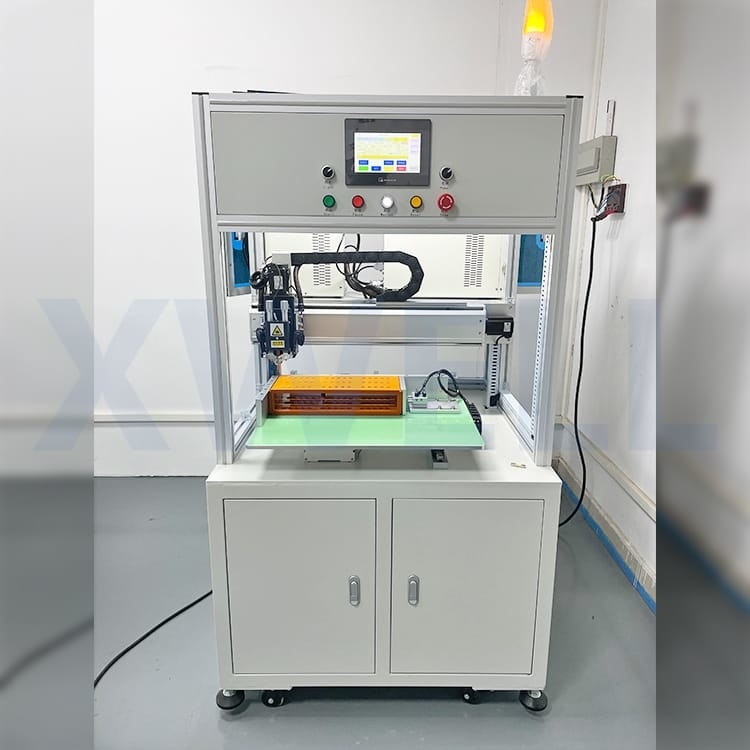

Automatic 18650 Lithium Battery Pack CNC Resistance Spot Welder Electric Single Side Spot Welding Machine
Product Description
The MD-ASW Single Side Automatic Battery Pack Spot Welding Machinew is a important machine for cylindrical battery pack assembly.
Which have below advantages:
1. Large touch screen, easy operation and clearer display.
2. Three file programming modes, manual input, array, CAD graphic import, simple and fast response. Edit all kinds of complex programs
4. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of the spot welding needle on the welding quality
5. It can store up to 99 sets of files, the file is easy to call, and no complicated process of changing wires and adjusting the machine is required.
6. One-key calibration function for the overall offset of the solder joint, which can be calibrated for the point offset caused by changing the solder needle or other reasons
Product Features
1. X-axis travel: 400mm
2. Y-axis travel: 400mm
3. Maximum spot welding speed: 0.3s/point; 2800pcs/h (servo head)
4. Maximum speed of motor drive: 1000mm/s
5. Maximum number of cells loaded: 300-600pcs (standard 18650 lithium cells)
6. The number of file groups that can be stored: 99 groups
7. Operating system: Embedded system + HMI
8. Transmission mode: servo motor + imported precision screw linear guide
Product Application
With the customized fixture jig, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical battery pack, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Stucture
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Welding range | 400*400mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300-600 pcs |
| Welding speed | Max 0.35s/spot, 2800 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Operation system | Microcomputer and touch screen user interface |
| Driver mode | Motro and precision guide rail |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 8000 W |
| Size | 900L*900W*1930Hmm |
| Weight | 300kg |
Product Details
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
