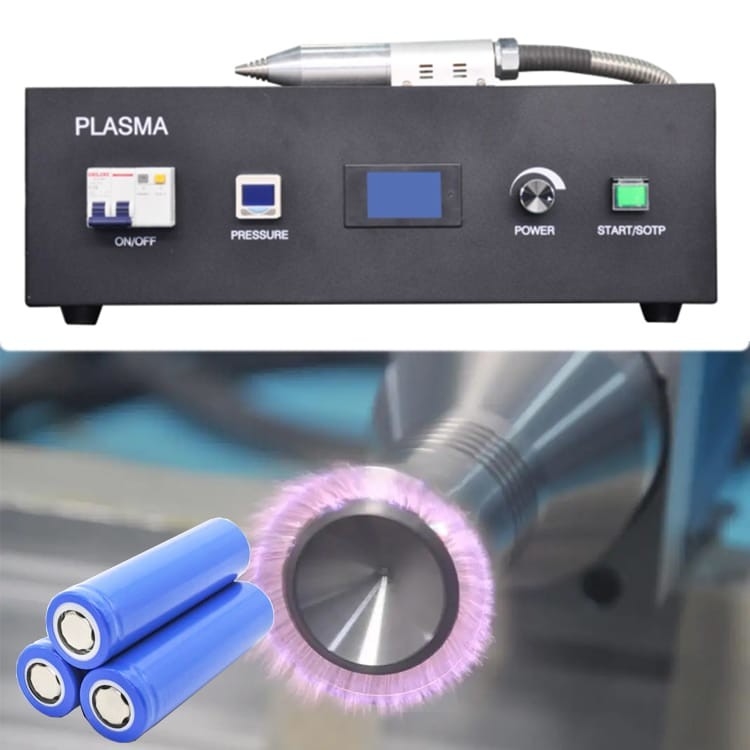

Atmospheric Battery Pack Production Machine , 3.5 M Plasma Cleaning Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-2600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD $4000 - $8000 / line |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 line per month |
|
Detail Information |
|||
| Model Number: | XW-2600 | Nozzle Size: | Optional Ordinary Jet Direct Injection 2mm, 3mm, 5mm, 10mm Standard Nozzle |
|---|---|---|---|
| Max Hight: | 5-20mm | Max Width: | 2-15mm |
| Cable Length: | 3.5 M | Control Method: | I/O Interface |
| Dimension: | 560×452×186mm | Weight: | 20KG |
| Highlight: | Plasma Cleaning Battery Pack Production Machine,Atmospheric Battery Pack Production Machine,3.5 m plasma cleaning machine |
||
Product Description
Battery Pack Atmospheric Plasma Cleaning Machine For Positive And Negative Terminal Cleaning Before Spot Welding
Summary
XW-2600 Atmospheric Plasma Cleaner is a product for surface cleaning, activation and etching in a normal pressure environment,The nozzles usually equipped with jet straight spray gun heads mainly treatment materials with small area, high trajectory accuracy, and corners parts,it can effectively deal with problems such as poor adhesion, poor welding, poor printing and poor dispensing in various industries.Plasma cleaning, as the front process of product surface printing, packaging, laminating, coating, welding, adhesive, coating, is an important part of enterprise product upgrade, capacity expansion and cost reduction.
Why need plasma clearning for battery?
During the production, testing and transportation of lithium battery cells, impurities such as dust and metals will stick to the positive and negative terminals. This brings trouble to the subsequent assembly of the battery pack, resulting in poor spot welding effect. Therefore, it needs to be plasma cleaned before assembly to maintain a clean terminal.
Features
1. Compact machine, wide application range, professional, efficient, accurate, durable,
environmentally friendly, flexible configuration, high cost performance;
2. Can be combined with the production line, can be continuously operated and
increase production speed;
3. Low gas cost (CDA / N2), and saving costs;
4. Uses industry-leading Full-bridge inverter circuit;
5. Patented design high voltage generator;
6. Patented nozzle design, no ESD generation;
7. Unique patented discharge technology, high plasma concentration
Specifications
| Plasma power host specifications | |
| Dimension | 560×452×186mm(L×W×H) |
| Weight | 20KG |
| Input power | Single phase 220V,50/60Hz, Ground resistance＜0.5Ω |
| Power frequency | 20-50KHz |
| Plasma output power | 300-500W Adjustable； Optional 200-300W(Ultra-low power version TEMP:40-60℃) |
| Control method | I/O interface |
| Alarm | Overload protection, short circuit protection, open circuit protection, temperature protection |
| Plasma power nozzle specifications | |
| Nozzle | 1.Optional ordinary jet direct injection 2mm, 3mm, 5mm, 10mm standard nozzle 2.Straight jet flat nozzle of 10 mm and 15 mm |
| Weight | 3KG |
| Cleaning hight | 5-20mm |
| Cleaning width | 2-15mm |
| Cable length | 3.5 m( Customizable within 6 m) |
Plasma generator dimensional drawings
Plasma head size drawing

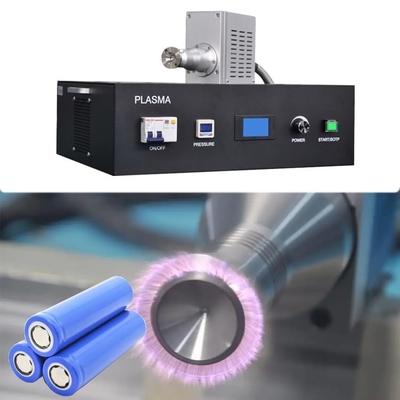

Plasma cleaning machine for battery
