SKD2 Battery Pack Production Machine , Nickel Plate Tab Cutting Machin

Product Description

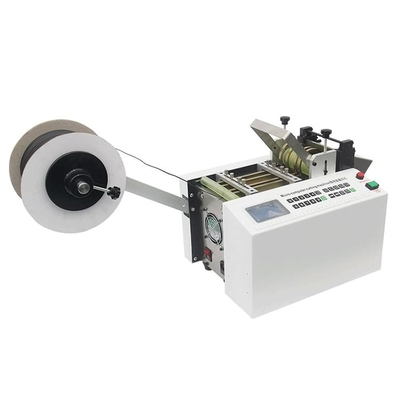

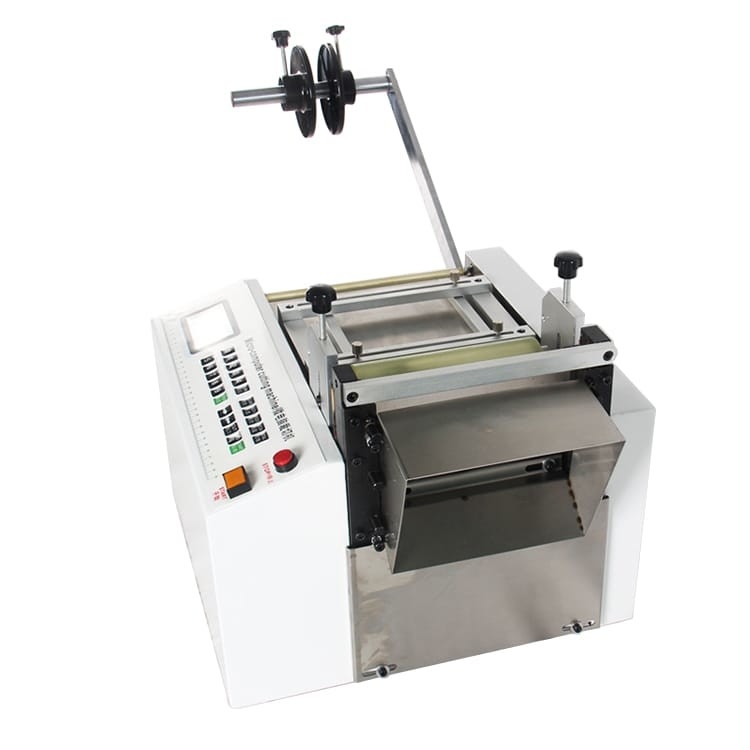

Automatic Battery Nickel Strip Cutting Machine for Clindrical Cell Pack Assembly

XWELL positioning color tracing slicer adopts imported optical fiber as electronic eye detection tool, with high sensitivity and fast response, and can accurately detect materials in high-speed operation;
Equipped with liquid crystal display, simple and intuitive, so that the operation becomes more simple, clear key instructions, let people at a glance. Novices can also get started quickly;
Automatic cutting, only need to input the distance between the two marks can be fully automatic processing;
Cutting speed : 100 times per minute ( 50 mm length , for example)
Cuttable materials: Nickel strip for battery, Non drying adhesive , label film , reflective film , plastic film , protective film , mobile phone film , flat film , etc .

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc.

Features

1) For battery pack Nickel strip cuting
2) Fully automaic, dobule motor driving
3) Cuttting length and speed is adjustable
4) Micro computer control,
5) High quanlity cutting steel blade
6) Auto stop when cutting is finished

Advantages

1. High speed: It can cut 100~120 cut per minute. (50mm long)

2. High accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3. Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4. Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5. Automatic stopper: It stops automatically if materials run out during operation

6. Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7. Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8. High speed, high accuracy, designed for cutting non-adhesive materials.
