18650 32650 Battery Raw Material , 10mm Nickel Plated Steel Strip

Brand Name:	XWELL
Model Number:	XW-NI
MOQ:	1pcs
Price:	USD 1 - 10/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T,Western Union,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Nickel

Usage:

For Battery Pack Spot Welding

Cell Type:

Cylindrical Cells

Width:

6mm-10mm

Thickness:

0.1-0.3 Mm

Purity:

> 99%

Supply Ability:

100 pcs per month

Highlight:

18650 Strip Battery Raw Material

10mm Strip Battery Raw Material

32650 nickel plated steel strip

Product Description

Nickel Plated Steel Strip For 18650 32650 Battery Spot Welding Use Battery Raw Material

Products Description

It has excellent mechanical properties, high corrosion resistance in ifferent environments, and magnetic feature,high heat transfer, high conductivity, low gas volume and low vapor pressure. It also has good spot welding properties and high tensile strength. It mainly used in lithium batteries, battery ear, metal stamping parts, electric vehicles, nickel batteries, telecommunications, electric vacuum, special bulbs and other industries.

Dimension

The thickness and dimensions can be met what customers required.

Features

1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.

5. High Electrical Conductivity

6. Anti-corrosive and low resistance

Physical properties

1.Spot welding is good

2.The resistance is lower

3. Battery discharge time longer

4. The battery spot welding is stronger.

Functions/Applications

1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications

Specification

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.8	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.2	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Product images

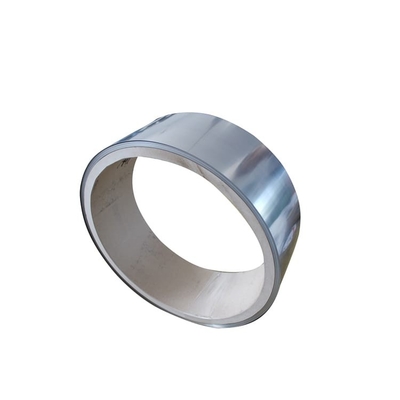

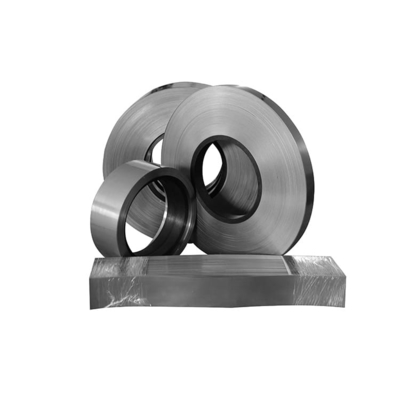

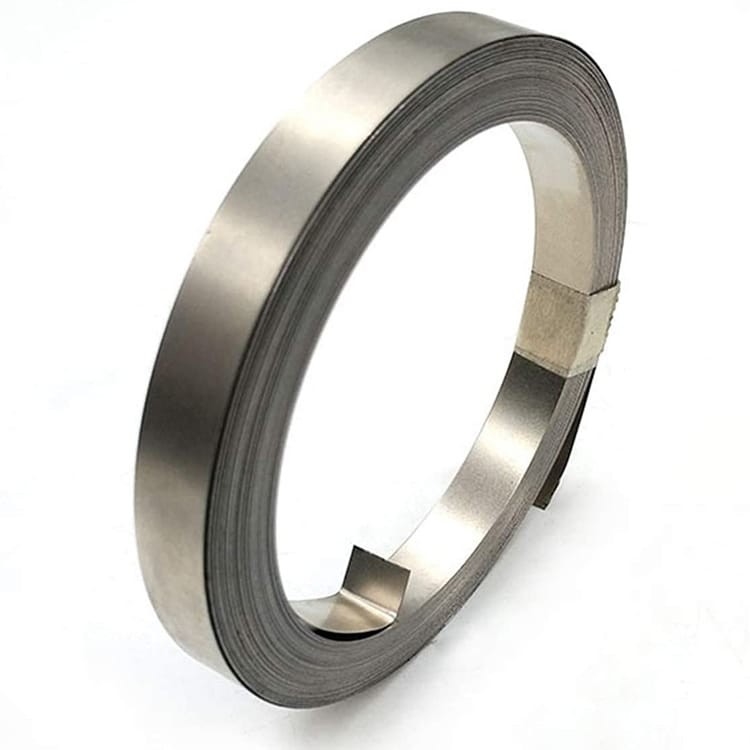

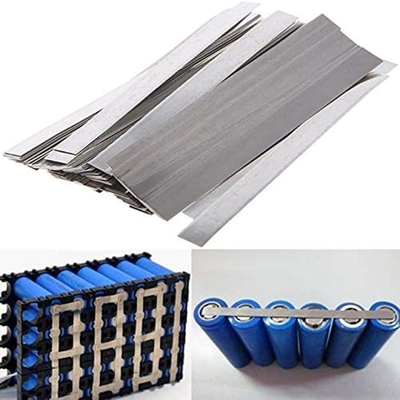

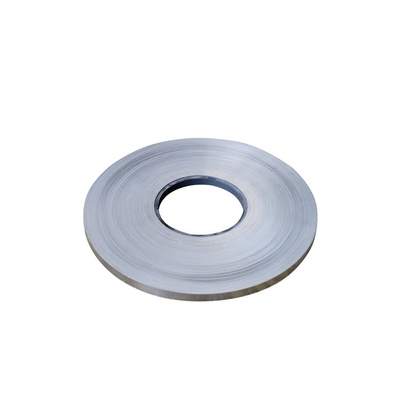

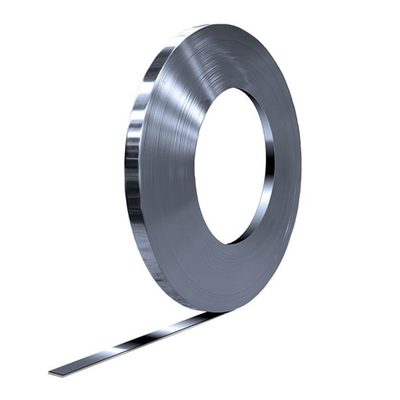

18650 32650 Battery Raw Material , 10mm Nickel Plated Steel Strip 0

18650 32650 Battery Raw Material , 10mm Nickel Plated Steel Strip 1

18650 32650 Battery Raw Material , 10mm Nickel Plated Steel Strip 2
