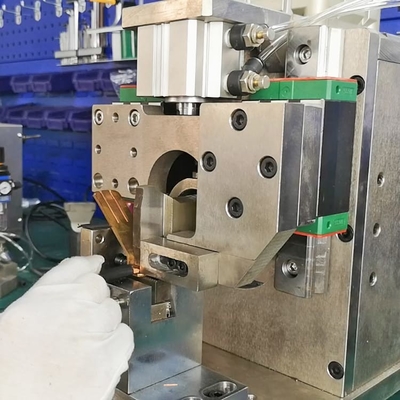

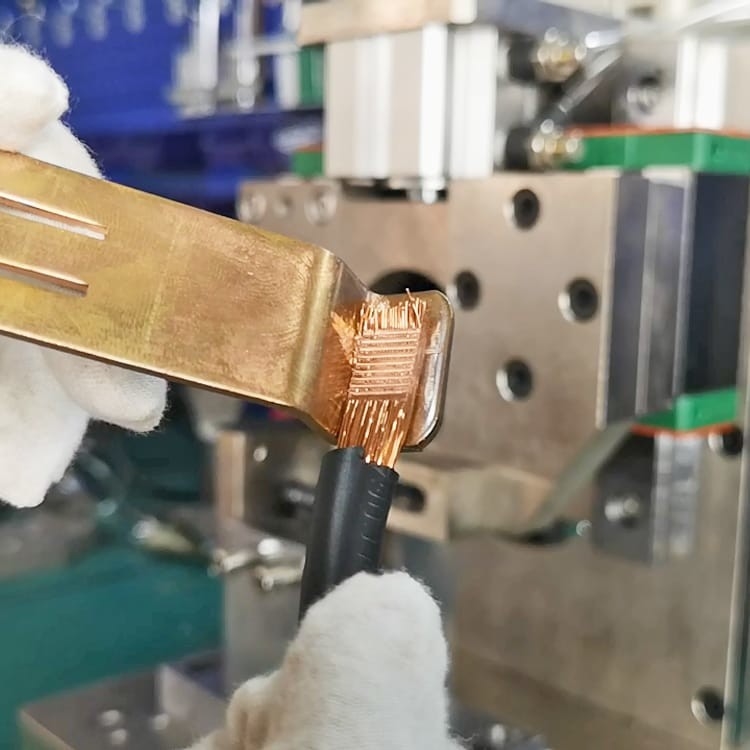

20KHZ 6000W Ultrasonic Battery Welder Terminal And Wire Welding Together
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-2020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Ultrasonic Working Frequency: | 20KHZ | Drive Form: | Pneumatic |
|---|---|---|---|
| Maximum Output Electric Power: | 800W- 2000W (adjustable) | Max Stroke: | 15 Mm |
| Welding Time: | 0.05~2s | Working Air Pressure: | 0.5~0.7Mpa |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Usage: | Battery Machine Ultrasonic Welding |
| Highlight: | 800W Ultrasonic Battery Welder,Pneumatic Ultrasonic Battery Welder,20KHZ ultrasonic metal spot welding machine |
||
Product Description
20KHZ 6000W Ultrasonic Battery Welder Terminal And Wire Welding Together
Product Description
Ultrasonic metal welding machine divided into single point welding and multi point welding,welding of non ferromagnetic metal materials by high precision energy generated by high frequency mechanical vibration. During welding, one of the workpieces is fixed, the other one is transmitted to two metal surfaces to be welded by high frequency vibration wave at the frequency of 20/35kH, and the pressure is applied on the workpiece. Friction between two metal surfaces to form a fusion between the molecular layer, thus achieving the effect of welding. Its advantages are fast, energy-saving, high fusion strength, good electrical conductivity, no spark, close to cold processing. The entire welding process can be precisely Control, at the same time do not generate excess heat on the metal surface, strong welding fastness. The disadvantage is that the welded metal should not be too thick (usually less than or equal to 5mm)
Product Features
1. The equipment drives metal friction, cylinder pressure, welding time is very short, welding surface does not produce rough surface defects
2. The equipment is easy to automate, saving the cost of welding head, convenient operation and fast welding speed
3. There is no need to add welding auxiliary material for welding of different metals.
4. The deformation measurement is small and does not produce large amount of heat, which causes the material to deform.
5. There is no need to treat surfaces, such as oily surface, paint can also be welded
6. Without external heating, welding uniform and effective, welding consistency is good, with automatic alarm function
7. Extraordinary Welding suitable for electronic industry, resistivity is almost zero
Product Advantages
1. Copper tape and copper foil ultrasonic welding machine welding effect is superior, welding firm, not virtual welding, vibration powder, no burning diaphragm, not hot insulation glue, not vibration crack pole earpiece;
2. Copper strip and copper foil ultrasonic welding machine are mixed with each other, and after welding, the metal parts are broken and torn, and the metal parts on one side and the other side infiltrate each other, and the electrode pieces are more than 80% on the residual welding surface of the polar ear;
3. Copper strip and copper foil ultrasonic welding machine after welding the polar ear and pole surface flat, no fold, back no protruding burrs, solder joint full clear, solid and reliable, solder joint position does not break
4. Copper strip and copper foil ultrasonic welding machine after welding good electrical conductivity, resistance coefficient is very low or near zero.
5. Copper tape and copper foil ultrasonic welding machine welding time is short, do not need any flux, gas, solder.
Product Specification
| Product Name | Ultrasonic Spot Welding Machine | ||||||
| Model No. | XW-2020 | ||||||
| Working voltage | AC220V/50Hz | ||||||
| Working air pressure | 0.5~0.7Mpa | ||||||
| Ultrasonic frequency | 20KHz, 35KHz (automatic tracking) | ||||||
| Power | 800W- 2000W (adjustable) | ||||||
| Welding time | 0~1s | ||||||
| Drive form | Pneumatic | ||||||
| pneumatic | about 60Kg | ||||||
| Control box size | L360×W480×H200mm | ||||||
| Generator size | L200×W460×H270mm | ||||||
Product Application
- Aluminum tape and aluminum cover welding;
- Nickel tape and copper foil welding (multi-point);
- Aluminum strip and aluminum foil welding (strip);
- Aluminum strip and aluminum foil welding (strip);
- Aluminum strip and aluminum foil welding (multi-point);
- Keywords nickel tape and aluminum strip; nickel strip and copper foil;
- Nickel tape and copper foil, aluminum strip and aluminum foil multilayer;
- Aluminum shell and aluminum nickel composite tape welding;
- Nickel strip and copper foil multilayer;
- Aluminum strip and aluminum foil multilayer;
- Copper tube seal tail;
- Automobile wire harness;
- Battery polar ear;
- Motor terminal and so on welding.
