Cathode Ultrasonic Spot Welding Machine , Lithium Ion Battery Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-2020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Ultrasonic Working Frequency: | 20KHZ | Maximum Output Electric Power: | 2000W |
|---|---|---|---|
| Max Stroke: | 15 Mm | Welding Time: | 0.05~2s |
| Control Method: | CPU Control | Control Method: | Nickel, Al, Copper... |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Usage: | Battery Machine Ultrasonic Welding |
| Highlight: | Cathode ultrasonic spot welding machine,ultrasonic spot welding machine,Cathode lithium ion battery spot welder |
||
Product Description

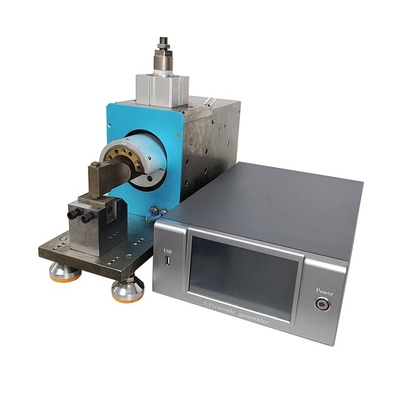

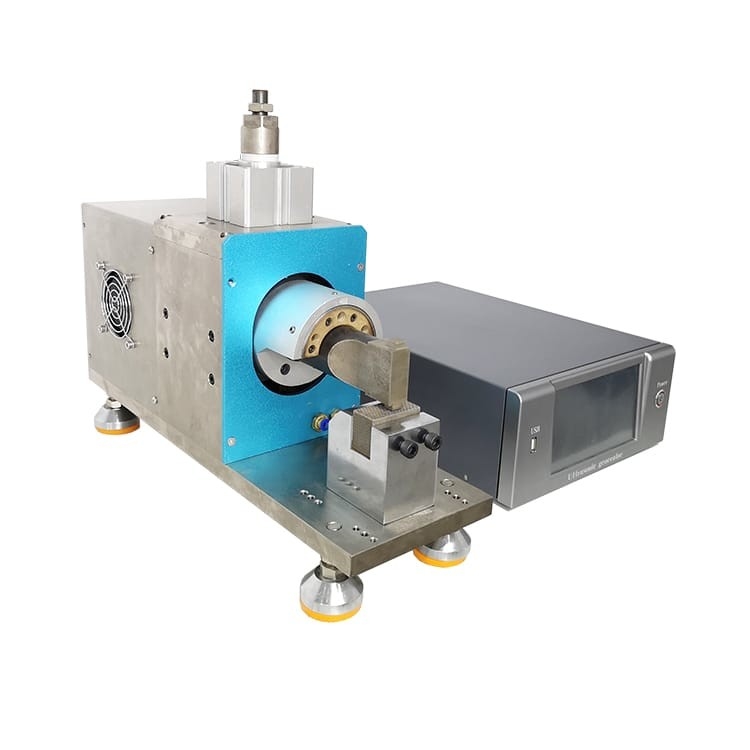

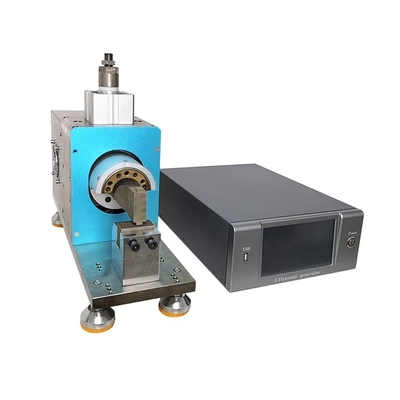

Ultrasonic Spot Welding Machine For Welding Li-Ion Battery Cathode Electrode Sheets
Metal Ultrasonic Spot Welder Ultrasonic spot welding metal tabs common to the winding and welding a metal lamination process, it is small, the outershaped appearance, easy to operate, reliable structure, stability and security features.This type of spot welding machine has follow features:Touch screen interface, intuitive and convenient frequency automatic tracking.No traces of oxidation, ultrasonic has cleaning function, there are stains or oxides on the metal surface, and it can be welded perfectly without surface treatment.All workpieces can be welded without pre-processing, no soldering tin, soldering oil additives, economical and convenient.The welding head is made of wear-resistant materials with long-lasting durability.The internal resistance of the solder joint is small. After welding, the conductivity is good, and its resistivity is extremely low, close to zero.The welding time is very short. Generally, the welding can be completed instantly within 0.01-2S seconds.The solder joints are firm, the working temperature does not exceed its annealing temperature, does not change the metallographic structure of the workpiece, its welding strength is stronger than other welding methods, and the welding interface is neat and clean.Low welding cost, fast speed, easy operation and convenient maintenance.No sparks are generated during welding, the operator is safe and assured, there is no smoke, and no air pollution will be caused.Common for welding copper and aluminum.Welding layer within 15 layers.
Features
1. International advanced microprocessor integrated control circuit, frequency automatic tracking technology, and stable circuit performance.
2. Anti-interference code, friendly interface, easy to operate:the following parameters can be set: preloading time, welding time, power, pressure holding time.
3. High precision X guideway mechanical structure,stable mechanical properties.
4. The welding head is made of imported alloy steel, high hardness, the pattern with high precision grinding, long service life.
5. Superior welding effect solid welding, no virtual weld, no vibration powder, do not burn the diaphragm, not hot insulation, not crack the lug pole piece.
Technical parameter
| Model | XW-2020 | |
| Power | 2000W | |
| Frequency | 20KHZ | |
| Power Supply Voltage | 220V/ 50Hz | |
| Gas supply source | ≥0.5MPa | |
| Control Method | CPU Control | |
| Max Stroke | 15 mm | |
| Welding Time | 0.05~2s | |
| Major Component |
1.Ceramic chips,import from Germany 2.Aluminium bar from Alcoa 3.Single chip from Philips 4.Welding head Titanium alloy and type 6542 |
|
| Welding Function |
0.1mm aluminium strip+1~3mm aluminum cover board,solder joint 3*3mm, 3*4mm single point welding or 3*3mm double point welding 8mm(length)
Double-Point Welding of Al-Ni Composite Belt with Aluminum cover Plate or bottom of Aluminum Shell; Solder joint 3*3mm two group 10mm long,3*4mm two groups of 14mm long, each group of 6 points, 9 points and so on.
Cathode tab 5-10 layers aluminum foil (20um) with pure aluminum tab (0.1mm) welding : 3*4 3 points 25mm long or 3*25mm
Anode electrode 5-10 layers copper foil (10um) with pure nickel tab (0.1mm) welding : 3*4 3 points 25mm long or 3*25mm |
|
