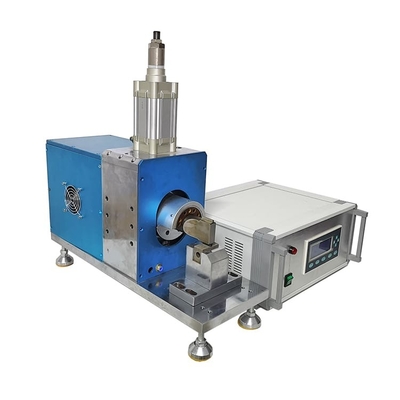

3600w Ultrasonic Metal Spot Welder , AC110V Nickel Strip Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-2040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Ultrasonic Frequency: | 20khz | Ltrasonic Power: | 3600w |
|---|---|---|---|
| Welding Size: | 3*12mm Or Custom Size | Control Method: | Time And Energy |
| Welding Material: | Nickel, Al, Copper... | Welding Stroke: | 30mm |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Usage: | Battery Machine Ultrasonic Welding |
| Highlight: | 3600w ultrasonic metal spot welder,AC110V ultrasonic metal spot welder,nickel strip spot welding machine |
||
Product Description
Ultrasonic Lithium Battery Spot Welding Machine for Aluminum Foil Copper Foil Welding of Li-ion Battery Spot Welding
Ultrasonic welding principle
Ultrasonic Lithium Battery Spot Welding Machine adopts ultrasonic vibration to cause the jointing interface of Aluminum foil and copper foil molecular friction, under the suitable pressure, the metal foils apply bonding performance, the metal foil of battery bonding is molecular connection without heating and any solder, the battery electrode is extremely conductive and extremely low resistance.
Character
1. 5.7 inch touch screen all digital control
2. Multiple protection function, over current, frequency protection and boot automatic detection
3. Automatic frequency tracking function of ultrasonic generator
4. Pressure, amplitude, welding time etc are all digital setting and regulation
5. Microcomputer control, electronic tuning frequency
6. Over-current protection and soft starting circuit design for safe working
Parameter
| Name | Ultrasonic Lithium Battery Spot Welding for Al, Cu foil+ Ni Tab |
| Model | XW-2040 |
| Ultrasonic frequency | 20khz |
| Ultrasonic Power | 3600w |
| Welding thickness | 1.2mm Al foil / Cu oil + 0.1~0.3 Ni Tab |
| Welding size | 3*12mm or custom size |
| Pneumatic pressure | 0.3~0.6mpa |
| Case Size | 480*600*200mm |
| Rack Size | 150*560*350mm |
| Net Weight | 60~80 kgs |
Highlighting of Ultrasonic welding for Al and Cu foil
1. Good conductivity, resistivity very low or almost near to zero
2. Oxidation or plating metal can be welded
3. Short welding time, no need additional flux, gas, solder
4. No welding sparks, environment protection and safety
5. Low energy consumption, High frequency, no distortion, no pollution
6. The welding/bonding has robust connection and easy operation
7. Welding material does not melt non-fragile metal properties
