60Hz Ultrasonic Spot Welder , 6500W Al Tab Ni Battery Tab Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-4020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Name: | Ultrasonic Wire Slice Machine | Frequency: | 40KHz |
|---|---|---|---|
| Welding Material: | Nickel, Al, Copper... | Welding Layers: | 2 - 40 Layers |
| Welding Size: | 4*4mm | Welding Time: | 0.1-1.5S |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Usage: | Battery Machine Ultrasonic Welding |
| Highlight: | 60Hz ultrasonic spot welder,Ni ultrasonic spot welder,6500W battery tab welding machine |
||
Product Description
800W - 6500W Al Tab Ni Tag Ultrasonic Welding Machine For Lithium Battery

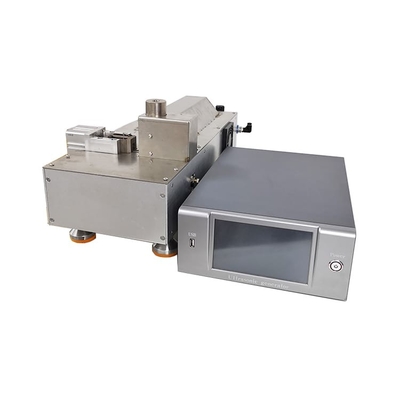

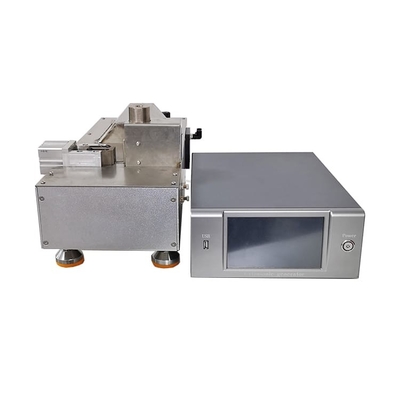

XW-4020 is a color touch-screen controller ultrasonic metal welder with CE Certified. It is designed for welding stacked electrode sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells in R&D laboratories.
XW-4020 ultrasonic metal welder machine is mainly used for Al can battery Al-Ni composite strip tab welding on Al shell for finished cell with New designed mould.
It can also weld Al can battery Al shell weld tab before battery finished with changing aluminum shell welding mould.
Ultrasonic metal welding machine is designed for Lithium battery tab welding with touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
The 2000w battery welder can weld stacked electrode with 10-40 layers aluminum foil or copper foil with Al tab and Nickel tab. If with bigger battery with layer up to 50 layers, can choose the 3000W model, and If need to weldup to 60 layers, please choose 4500W model.
Note:If you are not quite clear about what welder would be suitable for you,please consult the sales manager with following parameters,they will find a solution for you.
We need below parameters from you:
1. Weld material
2. Thickness of the material
3. Layer number of material
|
Features
|
Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types
of metals such as Au, Fe, Ni, Ag...). |
|
Input Voltage
|
AC 110V or 220V +/-10%, 50/60Hz
|
|
Max. Power Consumption
|
2200W, can be customized
|
|
Welding Area
|
4mm(L) x 4mm(W), can be customized
|
|
Welding Head
|
The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 40 layers
|
|
Ultrasonic Frequency
|
40K Hz, can be customized
|
|
Product Dimensions
|
1. Controller: 360mm(L) x 480mm(W) x 200mm(H)
2. Welder: 200mm(L) x 460mm(W) x 270mm(H) |
|
Net Weight
|
70kg
|
|
Compliance
|
CE Certificate
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Application Notes
|
Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery
electrodes. |
