Cylindrical Battery Cell Welding Machine , 4500W Nickel Strip Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-2020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Name: | Ultrasonic Wire Slice Machine | Welding Area: | 4mm(L) X 4mm(W), Can Be Customized |
|---|---|---|---|
| Power: | 2000W - 4500W | Welding Material: | Copper, Aluminium |
| Ultrasonic Frequency: | 20KHz | Welding Time: | 0.1-1.5S |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Cooling: | By Fan |
| Highlight: | Cylindrical nickel strip spot welder,4500W battery cell welding machine,XWELL battery cell welding machine |
||
Product Description

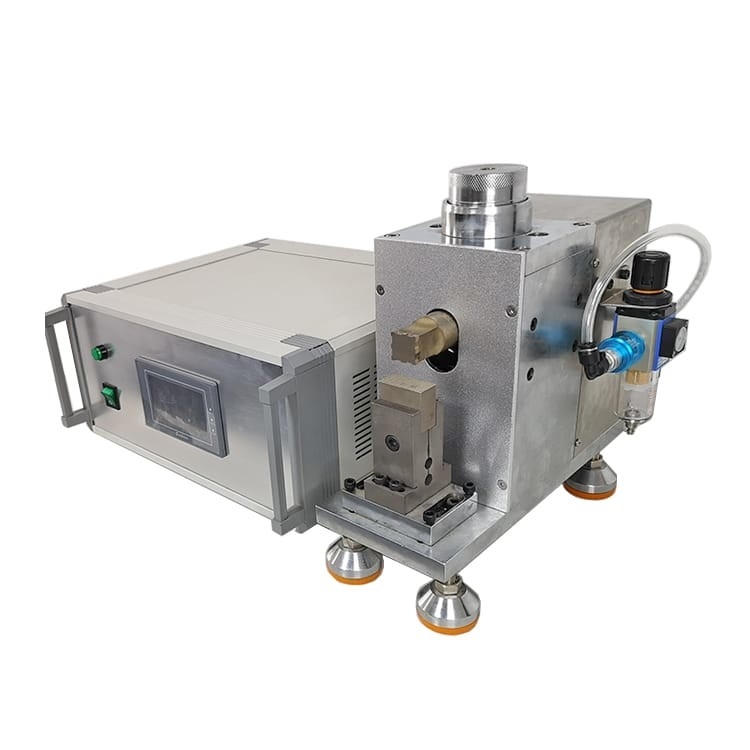

Battery Ultrasonic Metal Welder for Cylindrical Cell and Pouch Cell Al/Ni/Cu Metal Tab Foil Welding
XWELL ultrasonic metal welding machine is designed for Lithium battery tab welding, which equipped with controller of touch-screen. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
The 2000w battery welder can weld stacked electrode with 10-40 layers aluminum foil or copper foil with Al tab and Nickel tab. If with bigger battery with layer up to 50 layers, can choose the 3000W model, and If need to weldup to 60 layers, please choose 4500W model.
Specification
| Features | Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...). |
| Input Voltage | AC 110V or 220V +/-10%, 50/60Hz |
| Max. Power Consumption | 1000W-6000W, can be customized |
| Welding Area | 4mm(L) x 4mm(W), can be customized |
| Welding Head | The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 40 layers |
| Ultrasonic Frequency | 40K Hz, can be customized |
| Product Dimensions |
1. Controller: 360mm(L) x 480mm(W) x 200mm(H) 2. Welder: 200mm(L) x 460mm(W) x 270mm(H) |
| Net Weight | 70kg |
| Compliance | CE Certificate |
| Warranty | One Year limited warranty with lifetime support |
| Application Notes | Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes. |
