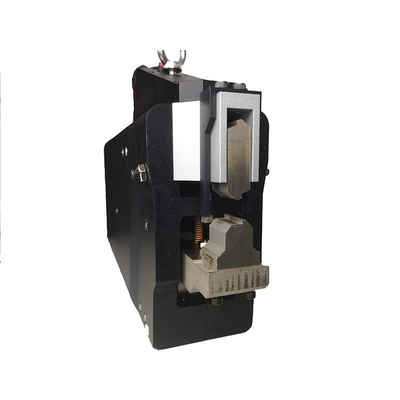

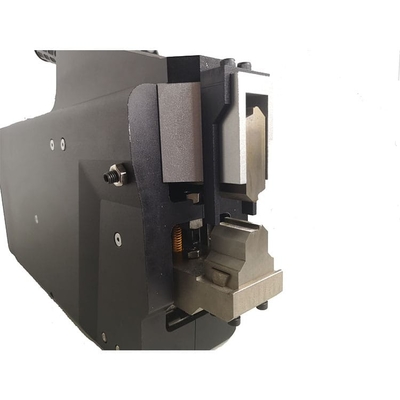

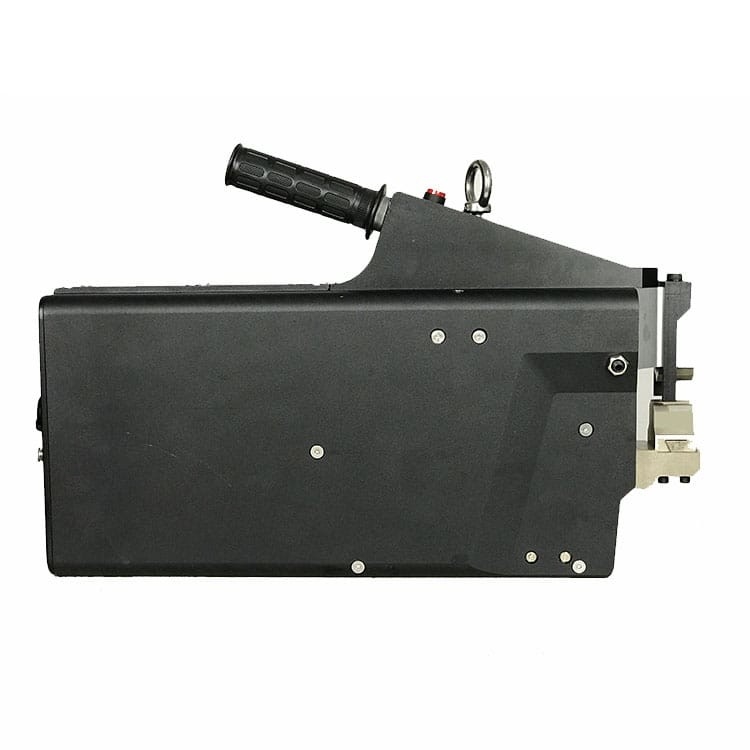

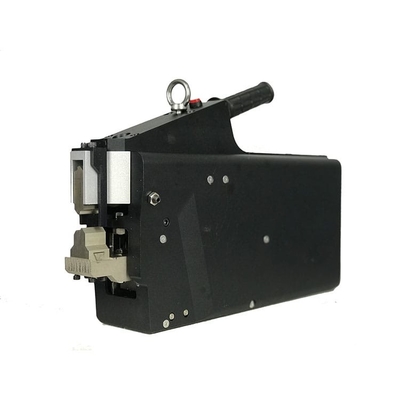

4000W Ultrasonic Battery Welder , Copper Tube Sealer Single Phase 220V
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-CP60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Name: | Ultrasonic Wire Slice Machine | Power: | 4000W |
|---|---|---|---|
| Welding Max Size: | φ12mm | Welding Material: | Copper / Aluminium |
| Frequency: | 20KHz | Welding Time: | 0.1-1.5S |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Cooling: | By Fan |
| Highlight: | 4000W Ultrasonic Battery Welder,Single Phase Ultrasonic Battery Welder,220V copper tube sealer |
||
Product Description
Ultrasonic Battery Welder Copper Tube Sealing Machine for Electrical New Energy
Ultrasonic sealing systems hermetically seal copper and aluminum tubes. A one-step operation crimps, seals and cuts off charged tubes in under one second. Systems are suited to automation for high levels of efficiency and productivity. It is specifically designed for explosive environments and can seal copper tubes up to 12mm in diameter. Its precise controls ensure consistent seals and are not operator-dependent. Applications include sealing charged tubes used in refrigerators, air conditioners and bulb temperature sensors, as well as capillary tubes
Features
1. Microcomputer control, electronic tuning frequency.
2. Power adjustable, operate simple, and run stable and reliable.
3. Low energy consumption, high efficiency, no deformation, no pollution, firm welding, convenient operation.
4. LED display keeps them machine visible in operation and regulation.
5. Imported components, good performance in energy output.
6. Over current protection and soft start can keep the machine safe.
7. Easy installation and operation.Application area
8. welding material does not melt, non-fragile metal properties.
9. Solar panel battery, flat solar plate, copper and aluminum plate joints.
10. Refrigerator and air conditioner copper tube sealing. Vacuum parts of copper
Ultrasonic tube sealing machine parameters
|
No
|
Item
|
Parameter
|
|
1
|
Power
|
4000W
|
| 2 |
Welding time
|
0.1-1.5S |
| 3 |
Welding material
|
Copper /Aluminium
|
| 4 |
Welding max size
|
φ12mm |
| 5 |
Cooling
|
By Fan
|
| 6 |
Air pressure
|
0.3-4000W
|
| 7 |
Power supply
|
Single phase 220V
|
| 8 |
Size(L*W*H)
|
650*280*550mm
|
| 9 |
Weight
|
40kg
|
Ultrasonic tube sealing machine structure
Ultrasonic tube sealing machine operation process
