Good price online

products details

Home > Products >
Ultrasonic Battery Welder
>
40 Mm Ultrasonic Wire Harness Welding Machine Metal Spot Welder
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
40 Mm Ultrasonic Wire Harness Welding Machine Metal Spot Welder
  • name
  • name
  • name

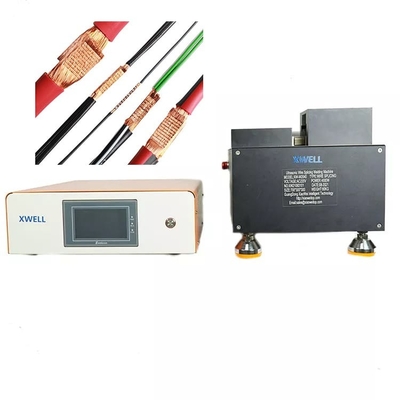

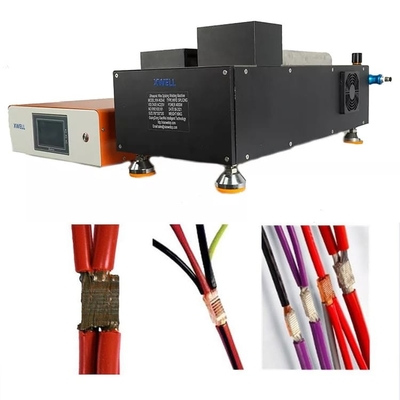

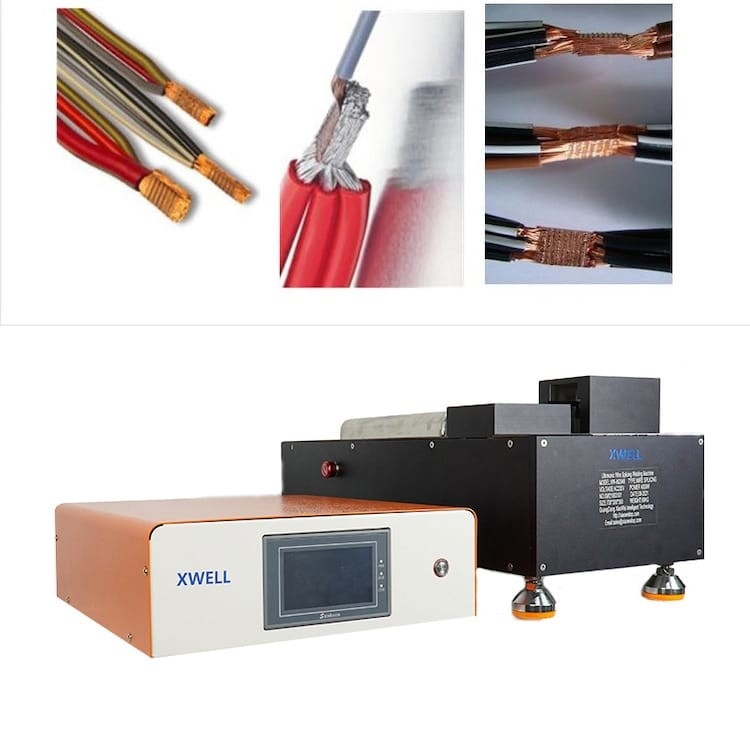

40 Mm Ultrasonic Wire Harness Welding Machine Metal Spot Welder

Brand Name: XWELL
Model Number: XW-M2040
MOQ: 1pcs
Price: USD 10000/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Name:
Ultrasonic Wire Slice Machine
Power:
4000W
Welding Material:
Copper / Aluminium
Frequency:
20KHz
Welding Time:
0.01-2.99 Sec
Control Model:
Time / Energy
Source Voltage:
AC110V/220V±10%V 50/60±10%Hz
Warranty:
One Year Warranty With Lifetime Support
Supply Ability:
100 pcs per month
Highlight:

40 mm Ultrasonic Metal Spot Welder

,

Ultrasonic wire harness welding machine

,

4000W Ultrasonic wire harness welding machine

Product Description

Ultrasonic Metal Spot Welder For Electrical Wire Splicing And Joint Ultrasonic Battery Welder



Ultrasonic Wire Splicing Machine is the future-oriented method for wire and terminal applications. The welding machine is a new industrial ultrasonic wire splice solution. It welds stranded, braided and magnet wires to create a wire splice, wire crimp or a battery cable splice. The connections it produces are used in the automotive, aircraft, computer and consumer electronics industries, as well as other process control and industrial instrument applications. It is most commonly used in the production of wire harnesses. Compared with crimping or resistance welding, this process offers numerous advantages. Besides the excellent electrical properties of the joint and the extremely low energy consumption, this method is particularly characterized by comprehensive process control and process data management.


Features

* Automatic splice width adjustment from 0.5 to 40 mm (depending upon power level)
* Microcomputer control, electronic tuning frequency.
* Power adjustable, operate simple, and run stable and reliable.
* LED display keeps the machine visible in operation and regulation.
* Imported components, good performance in energy output.
* Overcurrent protection and soft start can keep the machine safe.
* Easy installation and operation.
* Not only similar metal, but also dissimilar all can welding together. It can weld metal slice or sleave to thick metal.Usually used for transister or IC's leads welding..

Specifications

No
Item
Parameter
1
Power
4000W
2
Welding time
0.1-1.5S
3
Welding material
Copper / Aluminium

4
Welding mas size
50mm2

5
Cooling
By Fan
6
Air pressure
0.3-0.6 Mpa
7
Power supply
Single phase 220V
8
Size(L*W*H)
650*300*300mm
9
Weight
70kg

Tags:

4000W Ultrasonic Battery Welder

Single Phase Ultrasonic Battery Welder

220V copper tube sealer
