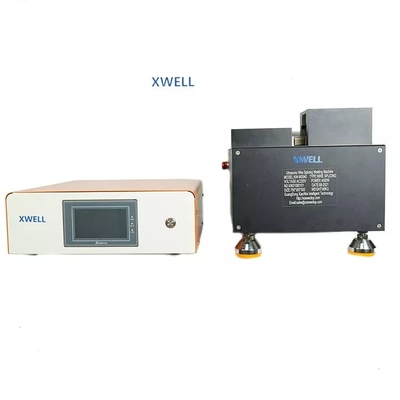

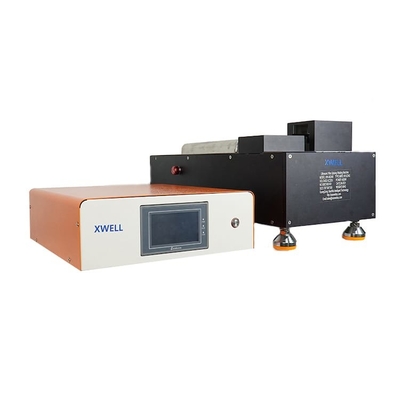

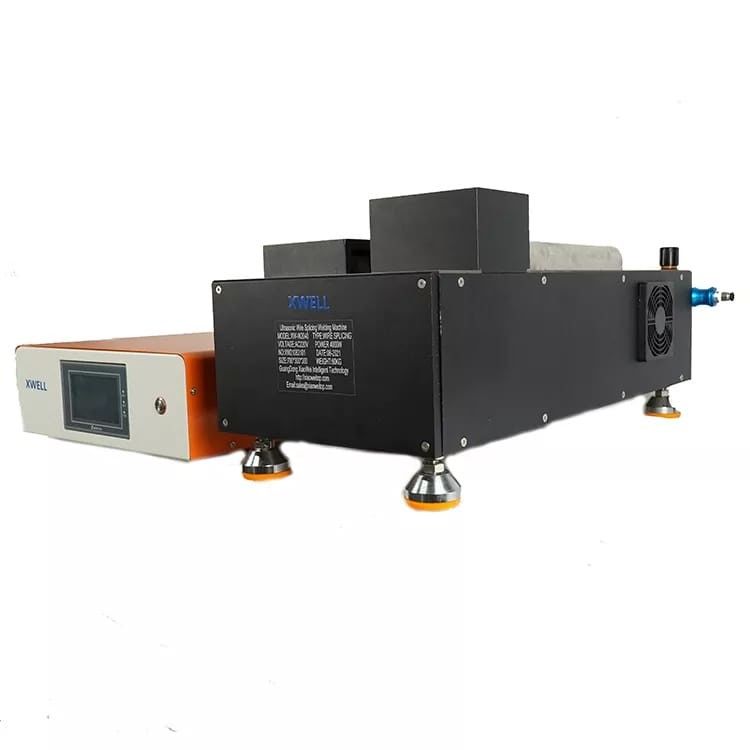

20KHz Ultrasonic Battery Welder , 8 KW Copper Wire Soldering Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-M2030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Name: | Ultrasonic Welding Machine | Frequency: | 20KHz |
|---|---|---|---|
| Welding Time: | 0.01-2.99 Sec | Power: | 3 - 8 KW |
| Function: | Output Amplitude From 0% To 100% | Control Model: | Time / Energy |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Warranty: | One Year Warranty With Lifetime Support |
| Highlight: | 8 KW Ultrasonic Battery Welder,20KHz Ultrasonic Battery Welder,XWELL Copper Wire Soldering Machine |
||
Product Description
Ultrasonic Metal Welding Machine Of Copper Wire Soldering Metal Wire Splicing Ultrasonic Welder Multi Wire Bonding
Ultrasonic wire splicing machine is a new industrial ultrasonic wire splice solution. It welds stranded, braided and magnet wires to create a wire splice, wire crimp or a battery cable splice.
The connections it produces are used in the automotive, computer and consumer electronics industries, as well as other process control and industrial instrument applications. It is most commonly used in the production of wire harnesses.
Compared with crimping or resistance welding, this process offers numerous advantages. Besides the excellent electrical properties of the joint and the extremely low energy consumption, this method is particularly characterized by comprehensive process control and process data management.
Advantages
* High-quality ultrasonic transducer, strong power, good stability.
* Good conductivity and resistivity very low or almost near to zero.
* Oxidation or plating metal can be welded.
* Short weld time, no need additional flux, gas, solder.
* No welding sparks, environment protection and safety.
* Without the need for frequent replacement of amplifier due to stepless adjustment of the amplitude.
* Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
* Welding material does not melt non-fragile metal properties.
* Pairs of welding metal surfaces that require low, oxidation or plating can be welded.
Features
* Automatic splice width adjustment from 0.5 to 40 mm (depending upon power level)
* Microcomputer control, electronic tuning frequency.
* Power adjustable, operate simple, and run stable and reliable.
* LED display keeps the machine visible in operation and regulation.
* Imported components, good performance in energy output.
* Overcurrent protection and soft start can keep the machine safe.
* Easy installation and operation.
* Not only similar metal, but also dissimilar all can welding together.
|
No
|
Item
|
Parameter
|
|
1
|
Ultrasonic Frequency
|
20KHZ
|
|
2
|
Power
|
3 - 8 KW
|
|
3
|
Voltage
|
AC110V/ 220V 50HZ
|
|
4
|
Welding Time
|
0.01-2.99 Sec
|
|
5
|
Function
|
Output amplitude from 0% to 100%
|
|
6
|
Air Pressure
|
0.4MPa-0.6MPa
|
|
7
|
Max Welding Capacity
|
4 mm2/11AWG cable
|
|
8
|
Dimensions
|
310*210*270MM
|
|
9
|
Gross weight
|
80KG
|
|
10
|
Certification
|
CE
|
Principle of ultrasonic machine
Ultrasonic wire splicing machine use ultrasonic frequency vibration principle to change ultrasonic vibration energy into friction energy and transfer to the metal surface to be welded ,while the friction produces heat under the pressure, the metal structure of molecules fully activation of the fusion between the molecular layer of the formation of the new equipment.
Ultrasonic slice machine structure
Ultrasonic slice machine detail
Samples
