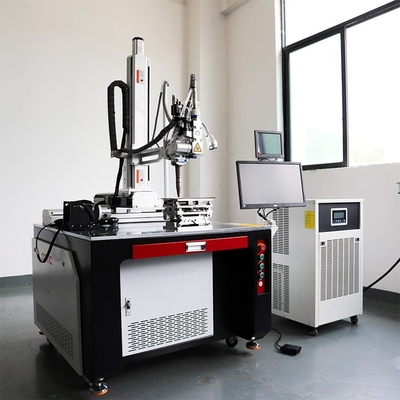

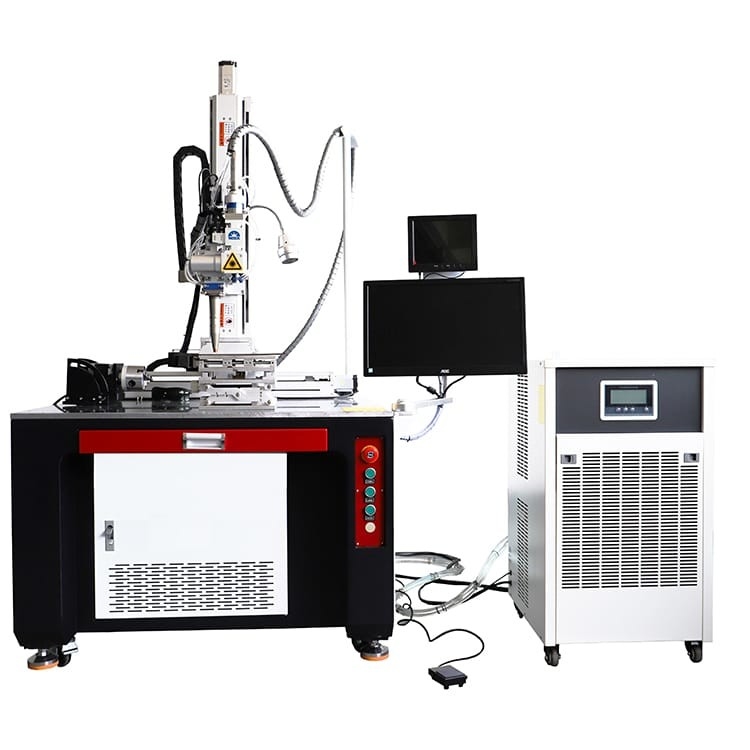

Wobble Welding Head Laser Welding Machine For Lithium Ion Batteries 18650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-C1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-C1000W | Laser Source: | Raycus/IPG/Nlight |
|---|---|---|---|
| Laser Power: | 1000w/1500w/2000w/3000w | Welding Head: | Wobble Welding Head |
| Depth Of Laser Welding: | 0.1-5.0 Mm | Pulse Width: | 0.3-20ms |
| Fiber Cable Length: | 10m | Working Voltage: | 220V/380V/32A |
| Highlight: | laser welding machine for lithium ion batteries,Wobble Welding 18650 battery spot welder,1000w 18650 battery spot welder |
||
Product Description
Wobble Welding Head LFP Prismatic 18650 Lithium Battery Spot Continuous Laser Welding Machine
Features
1. The energy, pulse width and frequency can be adjusted in a large range to realize different welding effects.
2. High electro-optic conversion rate, low energy consumption, no consumables, small volume,Can save a lot of processing cost for users after long term use
3. Controlled by PC, special software assisted, easy to learn, the workpiece can be used for plane trajectory movement, welding any point, straight line, circle, square or any plane graphic composed of straight line and arc;
4. Equipped with large workbench platform with high precision electric XYZ axis, can work with rotary device for tube/pipe welding. Support 3D laser welding for special-shaped three dimensional products.
5. Machine have spot welding model and continous welding mold.
6. Working method is flexible, can work with various automatic fixtures according to your welding requirement.
Advantage: Deep penetration depth,fast welding speed (2-10 times faster than tradition welding method), small heat effected zone,Low power consumption, Low maintenance costs, Automatic welding
|
Laser Power
|
1000w/1500w/2000w/3000w
|
|
Laser Source
|
Raycus/IPG/Nlight
|
|
Welding Head
|
Wobble welding head
|
|
Wavelength
|
1070±5nm
|
|
The minimum spot
|
0.1mm
|
|
Power adjustment range
|
5-100%
|
|
Electric power
|
220V 50Hz/380V 50Hz
|
|
Cooling method
|
1.5P Water Chiller
|
|
Worktable Size
|
600*600*300
|
|
Machine Dimension
|
Water chiller
|
|
Dimension
|
110*60*190cm
|
|
Gross weight
|
380kg
|
Detail Introduction
Laser Source
Brand: Raycus/ IPG/ Nlight
For Stainless steel and carbon steel welding, we suggest Raycus and IPG, IPG is better than Raycus.
For Aluminum brass welding, we suggest Nlight or IPG laser source.
X Y Z Axis Guide Rail
High precision position, positioning error is around 0.02mm. Moving speed is adjustable.
Wobble Welding Head
CCD camera display
CCD camera has 10x enlargement effect, help you to check to welding positon and welding effect clearly.
Water Cooling Machine
Equipped with 1.5P water chiller, fast cooling effect,support continuous working.
Application
Widely used in ice skating knife welding, cabinets welding, equipment parts welding,water tank welding, kitchenware welding, staircase elevator welding, metal framewelding, shelf welding, oven welding,and other products like stainless steel door, brass door, brass window, steel window, stair railing, distribution box, guardrail, advertising word welding etc.
Suitable for mass production for metal products.
Packing & Delivery
Pack in standard International wooden case with sponge filled inside for packing protection
Packing Size:120*75*210cm
Net Weight: 380KG
Gross Weight: 420KG
All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment
