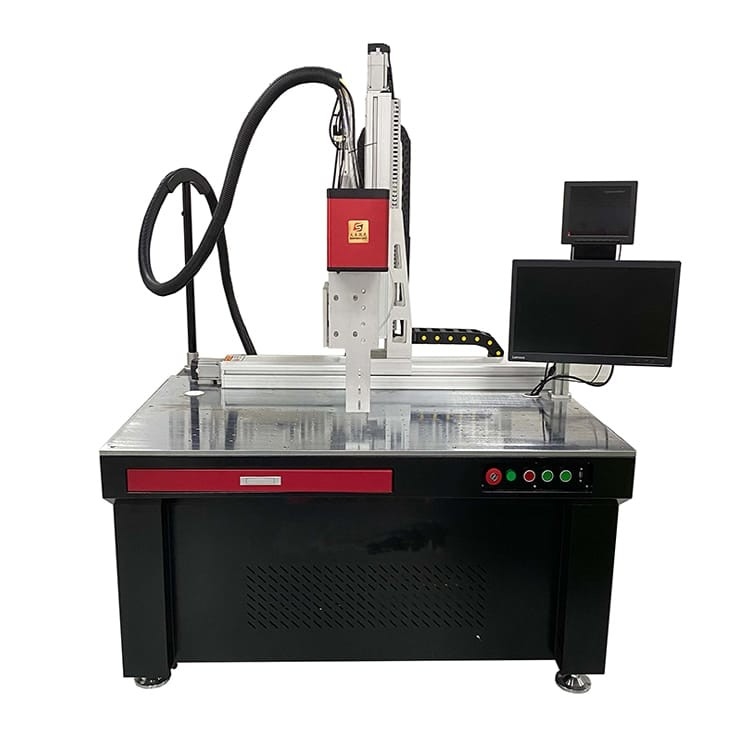

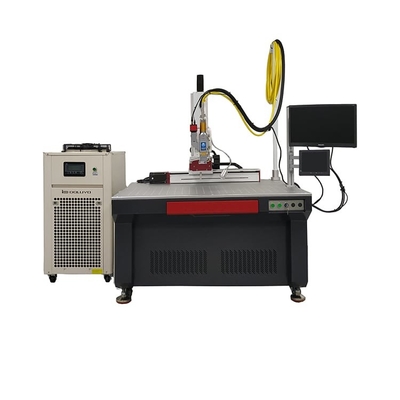

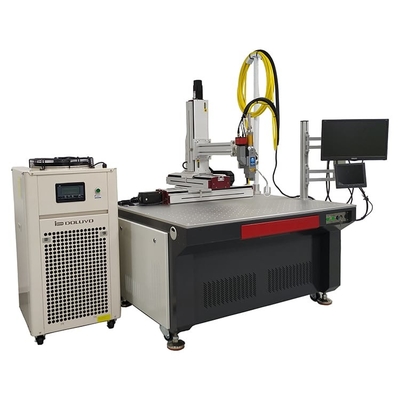

10m Battery Laser Welding Machine , 220V 80J Lithium Battery Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-C1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-C1000W | Type: | Continuous Fiber |
|---|---|---|---|
| Laser Power: | 500W 1000W 1500W 2000W 3000W | Laser Wavelength: | 1064 Nm |
| Depth Of Laser Welding: | 0.1-2.0 Mm | Pulse Width: | 0.3-20ms |
| Fiber Cable Length: | 10m | Working Voltage: | 220V/32A |
| Highlight: | 220V Battery Laser Welding Machine,80J Battery Laser Welding Machine,10m lithium battery spot welder |
||
Product Description
Lithium Battery Pack Laser Welding Batteries Spot Laser Welding Machine
In recent years, the wave of new energy vehicles has become popular all over the world. Among them, the power battery, as the core component of a new energy vehicle, directly determines the performance of the vehicle. The accuracy and automation level of the production equipment will directly affect the quality, efficiency and consistency of the battery. As an advanced processing technology, laser welding technology is a good choice for the production of high-performance power batteries. Due to the large number of welding parts, the difficulty of welding, and the high precision requirements of power batteries, traditional welding methods are difficult to meet the requirements. However, laser welding technology has low welding material loss, small deformation of the welded workpiece, stable equipment performance and easy operation, welding quality and automation. High, used in the field of power battery welding can greatly improve the safety and reliability of the battery, and extend the service life. As a fusion manufacturing process that integrates raw materials such as positive and negative electrode materials, separators, and electrolytes, it is a key process in the entire power battery production process.
Lithium battery pack laser welding batteries spot laser welding machineLithium battery pack laser welding batteries spot laser welding machine
working principle
Laser welding uses high-energy laser pulses to locally heat the material in a small area, and then diffuses into the material through heat conduction to melt the material to form a specific molten pool. It is a new type of welding method, mainly aimed at welding thin-walled materials and precision parts, and can realize multiple welding methods such as spot welding, butt welding, stitch welding, and sealing welding.
Features
The laser welding for power battery has the advantages of high energy density, small welding deformation and small heat affected zone, which can effectively improve the precision of the parts. The welding seam is smooth without impurities, uniform and compact, and no additional grinding work is required.Energy concentration and control, equipment welding speed is fast, easy to achieve automatic production, high yield, better battery welding safety, no side effects on the human body, suitable for use in dust-free workshop.Because the structure of the power battery usually contains a variety of materials, the power battery laser welding machine can weld between the opposite metal.
Application
BATTERY PACK welding; super capacitor connecting piece welding; soft package welding; Welding of explosion-proof valve; welding to nickel sheet. The battery cap is welded. Busbar welding, flip sheet welding, protection board welding.
Specification
| Max. average power | 500W / 1000W / 1500W / 2000W / 3000W |
| Laser wavelength | 1064nm |
| Working Substance | Fiber laser source |
| Working Area | 400*400mm |
| Maximum Single Pulse | 80J / 20ms |
| Power Comsuption | <12kw |
| Maximum Welding Depth | 3mm |
| Maximum Spot Diameter | 2mm |
| Power Stability (8h) | <±3%rms |
| Pulse Width | 0.15-20ms |
| Pulse Frequency | 0-50/100HZ |
| Repeated Precision | ±0.01mm |
| Transmission fiber wire | Original Japan Mitsubishi Φ0.4 / Φ0.6 |
| Positioning method | Red light |
| Voltage | 380V±5% / 50Hz 50A |
| Cooling water | 5HP Chiller 10L/min |
| Power Control System | Single Chip Microcomputer |
| Observation System | Microscope |
| Dimension (L*W*H) | 1300*900*1600mm |
| Package Size | 1400*1000*1750mm |
| Net Weight | 450KG |
| Gross Weight | 600KG |
Laser welding samples for prismatic battery pack AL busbar
Laser welding samples for prismatic battery pack copper busbar
Laser welding samples for prismatic battery pack Nickel busbar
