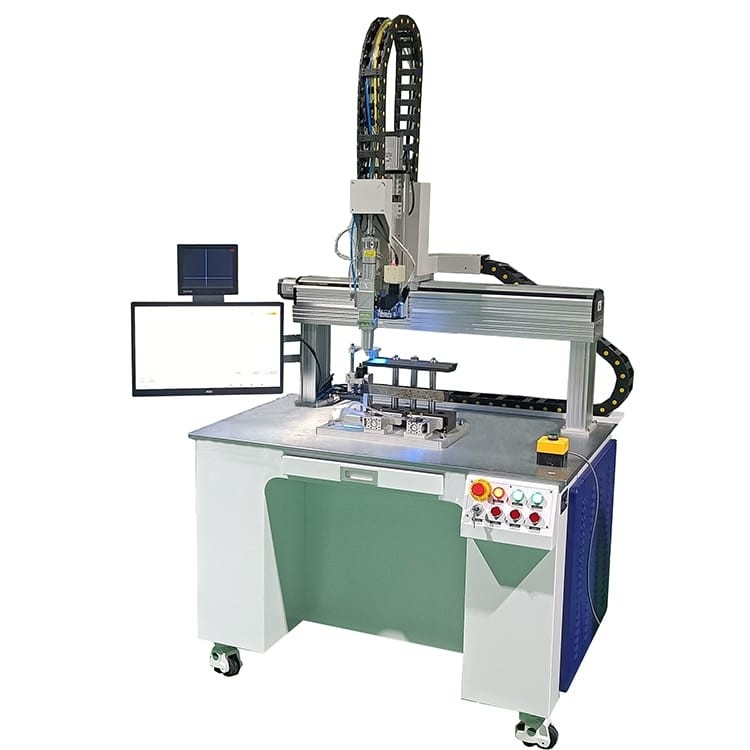

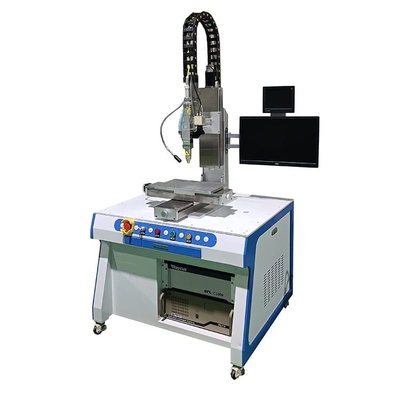

1500 Watt Laser Welding Machine , 4 Axis Laser Spot Welder With QBH Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-1000W | Optical Connector: | QBH |
|---|---|---|---|
| Cooling System: | 1HP Water Chiller | Observing System: | CCD And LCD Display, With Red Pointer |
| Axis Number: | 4 Axis | Laser Type: | Fiber-optic Laser |
| Control Method: | Control Card And Computer | Fiber Cable Length: | 10m |
| Highlight: | QBH laser spot welder,1500 watt laser welding machine,4 Axis 1500 watt laser welding machine |
||
Product Description
Automatic 1500W 2000W Prismatic Battery Pack Laser Welder Lithium Polymer Battery Laser Welding Machine For Pouch Cell
Introduction
The fiber continuous welding machine is a high-end, new type of welding method.
It is generally composed of a "welding mainframe" and a "welding workbench".
The laser beam is coupled to the optical fiber, and after being transmitted over a long distance,
it is processed into parallel light. Focusing on the workpiece to perform continuous welding,
the welding effect is stronger due to the continuity of the light output, and the weld seam is
more fine and beautiful. According to the different needs of different industries, the equipment
can meet the needs of users in different industries according to the matching shape and workbench on the production site and the automation work.
Feature
1. Output fiber laser power stability, electro-optical conversion rate up to 30%, its conversion rate is 10 times of YAG.
2. Beam quality is excellent, non-Gaussian light, multi-module fiber transmission.
3. Maintenance-free operation.
4. Low cost of use, almost no consumptive material, daily maintenance-free,reducing the cost of debugging when production line stops.
5. Long lifetime, high precision, pump source lifetime more than 100,000 hours.
Application
Welding of automobile parts, hydraulic lever, gasoline filter, automobile tail gas sensor, solenoid valve and start motor stator, and seal welding lithium battery (mobile phone battery and energy battery), metallurgy (welding of silicon steel plate), military industry sensor, motor blade welding electronic components, welding of (relay) electric apparatus industry, silicon steel plate, air conditioner motor rotor, leakage protector. Widely used in aviation, machinery, electronics, communication, energy, chemical, automobile manufacture.
Parameter
| Model No. | XW-1000W |
| Laser Power | 1000W |
| Laser Source | Fiber 1080nm |
| Optical Connector | QBH |
| Modulation Frequency | <10 k Hz |
| Max Welding Depth | ≤3mm |
| Adjusting rang of light spot | 0.2 - 2.0mm |
| Cooling System | 1HP water chiller |
| Power Supply | 220V±5%, 50Hz |
| Power Consumption | 5Kw |
| Fiber Delivery Length | 10 meters |
| Observing System | CCD and LCD display, with red pointer |
| Control System | Industrial PC with CNC 2000 or LC5 |
| 3-axis Travel Distance |
X=300mm,Y=200mm,Z=300mm (all electrical, precision ±0.02mm) |
| Data Memorization | 100 groups |
| Illumination | LED circle lamps |
| Language Display | English & Chinese |
| Shield Gas Supply | 1line, argon |
| Running Environment | Tem 5°C-40°C, Hum 5%-85% |
Optional 4th rotation axis
Computer UI software
