1-10 Series Comprehensive Lithium Ion Battery Pack Tester IP Protocol Communication Means
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BTS50-05-60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5800/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Voltage And Current Detection Sampling: | Four-wire Sampling | Data Output Mode: | EXCEL/TXT/Chart |
|---|---|---|---|
| Communication Interface: | Mesh Port/Network Port | Cabinet Size: | 850*700*920mm |
| Warranty:: | 1 Years | Place Of Origin:: | Guangdong, China |
| Customized Support:: | OEM, ODM, OBM | Communication Means:: | TCP/IP Protocol |
| Open Circuit Voltage:: | 0-5V | Data Management:: | MySQL Database |
| Highlight: | Comprehensive battery pack tester,IP Protocol battery pack tester,Comprehensive lithium ion battery tester |
||
Product Description

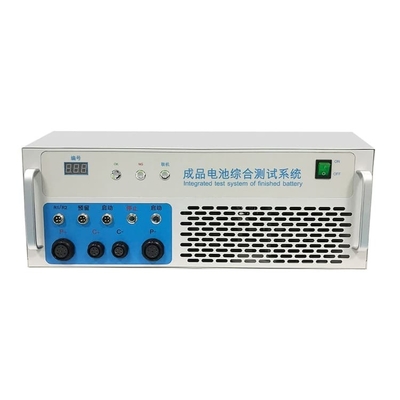

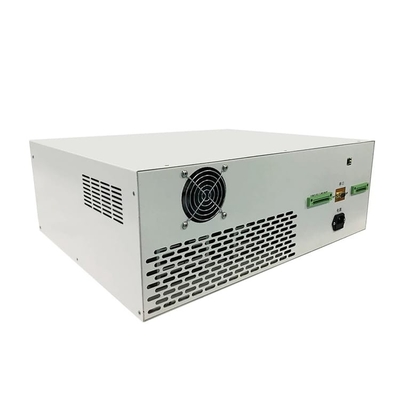

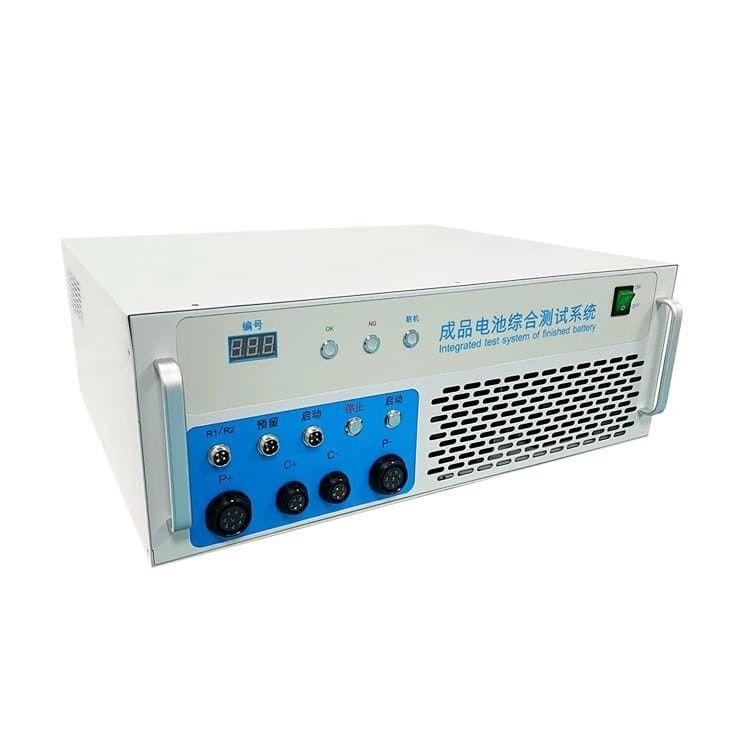

1-10 Series Comprehensive Lithium Ion Battery Pack Tester IP Protocol Communication Means
Product Description
The comprehensive test equipment for finished battery is a fast and accurate device for testing the performance of finished battery. The main test items include: open circuit voltage, AC internal resistance, discharge test, discharge over-current test, short circuit protection test, charging test and charging protection test. The system adopts 32-bit ARM processor and 16 bit AD converter for voltage and current. Compared with similar equipment, it has faster test speed, higher test accuracy and supports simultaneous operation of multiple equipment. It is widely used in the production, scientific research and experimental test of power batteries such as automotive electronics, aerospace, ships, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communication power supplies, etc.
Product Features
1. Open circuit voltage: test the voltage at both ends of the positive and negative poles of the battery.
2. AC internal resistance: test the resistance at both ends of the battery discharge circuit.
3. Discharge test: test the continuous carrying capacity of the battery, and check the voltage drop of the battery for a certain period of continuous discharge.
4. Discharge over-current test: test the high current discharge protection function of the battery, and the high current discharge of the battery triggers the discharge over-current protection function of the battery protection board.
5. Short circuit protection: test the battery positive and negative short circuit battery cut-off protection time (microsecond level).
6. Charging test: test the battery's continuous charging function and whether the battery's charging function is good.
7. Charging over-current test: test the high current charging protection function of the battery, and the high current charging of the battery triggers the charging current protection function of the battery protection board.
Product Advantages
1. The continuous output power of the equipment is 2KW.
2. The continuous load power of the equipment is 12KW.
3. The maximum test voltage is 100V. (can be customized according to requirements)
4. Maximum charging current (20a), discharge current (120a). (can be customized according to requirements)
5. Programmable control of test items.
6. Friendly human-computer interface.
7. Support one upper computer software to control 8 devices.
8. The device supports serial port, network and upper computer communication.
9. Test records can be saved to database (SQL) or file (Excel).
10. Support the export and import function of test project.
11. The equipment supports the same port and split port batteries for charging and discharging.
12. The device supports the function of charging and activating the battery.
13. Consistency evaluation test of battery cell.
14. Internal resistance test of battery pack.
15. Battery load on load test.
16. Battery pack high current protection test.
17. Battery authenticity short circuit protection test.
18. Battery pack continuous charge test.
19. Battery pack high current charging protection test.
20. Equipment input voltage AC220V / 50Hz. (input line must be grounded)
The input housing of the equipment is well grounded.
21. The input shell of the equipment is well grounded.
Product Specification
| Test items | test result | Test range (unit) | resolving power |
| Open circuit voltage | 1. Open circuit voltage 1 | 0-50(V) | ±2mV |
| 2. Open circuit voltage 2 | 0-50(V) | ||
| internal impedance | 1. AC internal resistance | 0-1000(mΩ) | ±1mΩ |
| 1. Starting voltage | 0-50(V) | ±2mV | |
| Discharge test | 2. End voltage | 0-50(V) | ±2mV |
| 3. Discharge current | 0.2-60(A) | ±1mA | |
| 4. Discharge time | 0-60(S) | ±1mS | |
| Discharge over current test | 1. over discharge current | 4-60(A) | ±1mA |
| 2. over current delay | 0-30(S) | ±0.1mS | |
| Short circuit protection | 1. Short circuit delay | 0-9999(uS) | ±0.1uS |
| 1. Starting voltage | 0-50(V) | ±2mV | |
| Charging test | 2. End voltage | 0-50(V) | ±2mV |
| 3. Charging current | 0.2-5(A) | ±1mA | |
| 4. Charging time | 0-60(S) | ±1mS | |
| Charging protection test | 1. Charging over-current | 4-20(A) | ±1mA |
| 2. Charging delay | 0-20(S) | ±0.1mS |
Details
Computer sofware, support english language
