Four Wire Sampling Lithium Ion Battery Testing Equipment 100V 20C 200F
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BTS100-20-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5800/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Power: | AC 220V ±10% / 50Hz | Voltage Test Accuracy: | ±1% |
|---|---|---|---|
| Open Circuit Voltage:: | 0-100V | Data Output:: | EXCEL,TXT |
| Voltage And Current Detection Sampling: | Four-wire Sampling | Data Base: | Using SQL Database To Manage Test Data |
| Upper Computer Communication Mode: | Based On TCP/IP Protocol/Serial Port | Data Output Mode: | EXCEL/TXT/Chart |
| Communication Interface: | Mesh Port/Network Port | Cabinet Size: | 850*700*920mm |
| Highlight: | 100V lithium ion battery testing equipment,200F lithium ion battery testing equipment,20C battery tester for lithium batteries |
||
Product Description

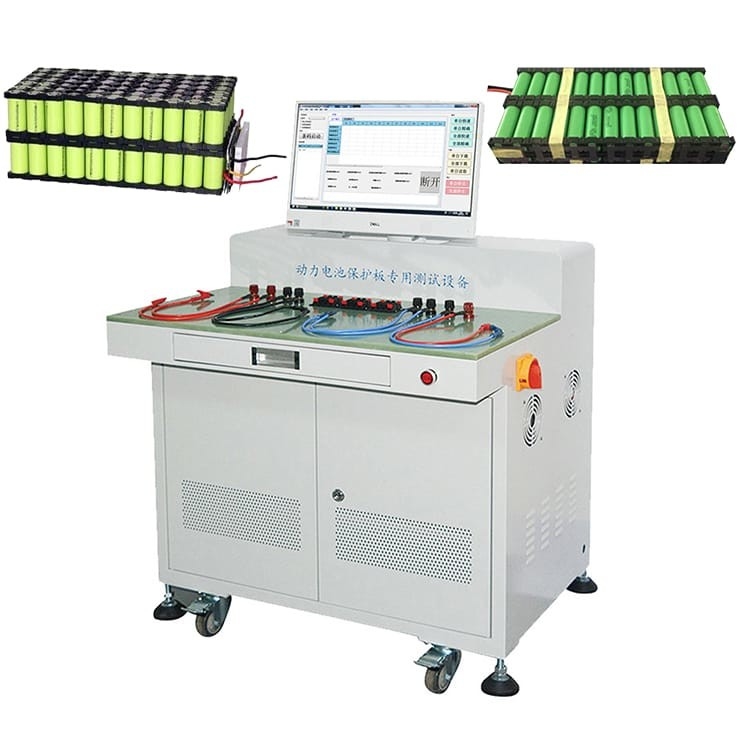

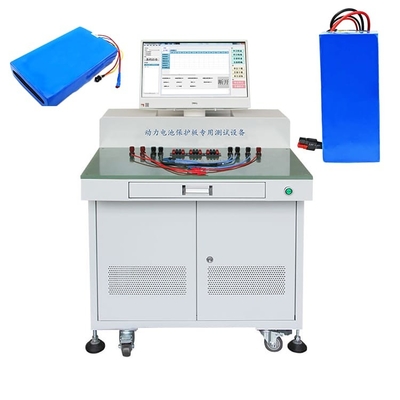

Four Wire Sampling Lithium Ion Battery Testing Equipment 100V 20C 200F
Product Description
BT-100V20C200F is a comprehensive performance test for power batteries / energy storage batteries / tool batteries / digital battery packs. Voltage, internal resistance, charging, discharging, short circuit protection performance, and the corresponding values are tested
BT-100V20C200F: The specifications are interpreted as voltage 100V, maximum charge 20A, discharge 200A
The programmable test process can be used to accurately and intuitively judge the performance and quality of the battery. It also has a fast screening function, which can set the upper and lower limits of the measurement parameters to quickly detect bad batteries and improve production efficiency
It is widely used in the production and scientific research experiment of power battery packs for automotive electronics, aerospace, marine, solar energy storage, electric vehicles, and communication power supplies.
Product Specification
| Input power | AC220V±10%/50Hz | |
| No load voltage | measuring range | 0-100V |
|
Current |
Charging range | 0.1-20A |
| Discharging range | 0.1-60A | |
| Charging over current | 4-20A | |
| Discharge over current | 4-120A | |
| resolution | ±2mA | |
| accuracy | ±(0.2% of reading +0.2% of range) | |
| Internal resistance | resolution | ±0.1mΩ |
| R1/R2 | resolution | ±1kΩ |
| Short circuit protection | Short circuit protection time | 0-19999us |
| resolution | ±0.1uS | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port/Network port | |
| Cabinet Size | 850*700*920mm | |
