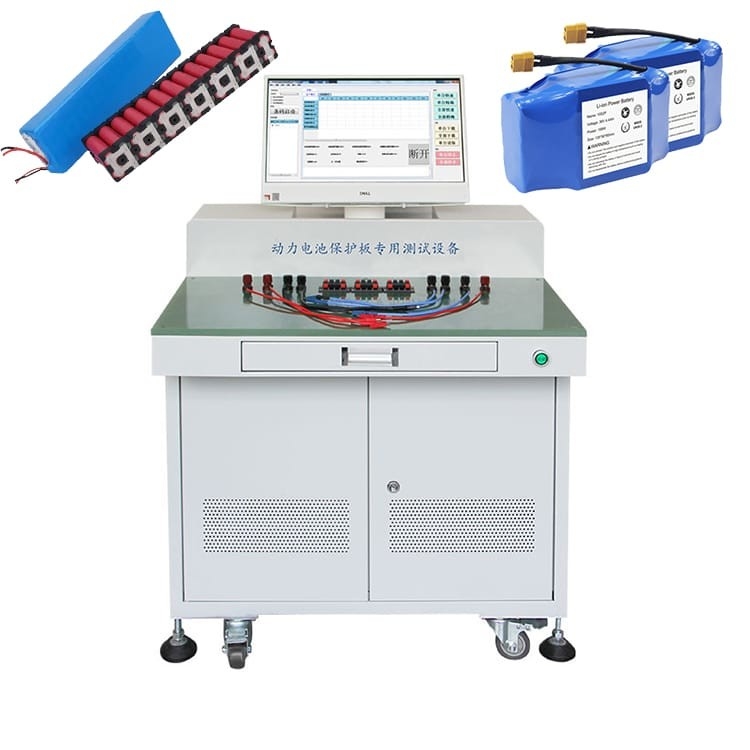

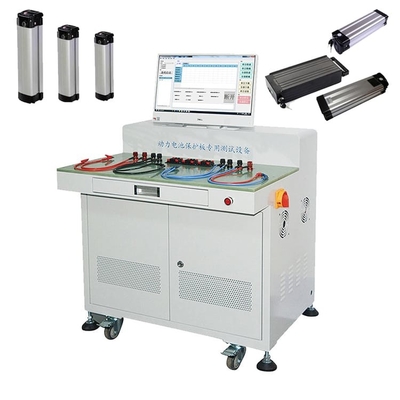

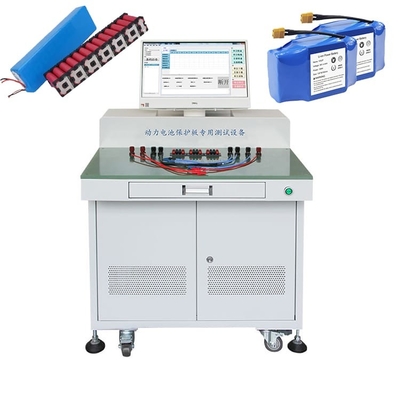

Finished Battery Pack Comprehensive Testing Machine Multifunction Tester Test Instrument Equipment for E-Bike E-Vehicles
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BTS100-20-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5800/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Power: | AC 220V ±10% / 50Hz | Model Number:: | BTS100-20-120 |
|---|---|---|---|
| Open Circuit Voltage:: | 0-100V | Data Management:: | MySQL Database |
| Data Output:: | EXCEL,TXT | Power:: | Electronic |
| Voltage And Current Testing Sample:: | 4-wire Connecting | Communication Means:: | TCP/IP Protocol |
| Highlight: | Electronic lithium battery testing equipment,ODM lithium battery testing equipment,12v lithium battery tester |
||
Product Description
Finished Battery Pack Comprehensive Testing Machine Multifunction Tester Test Instrument Equipment for E-Bike/E-Vehicles
Product Description
Lithium battery comprehensive test equipment is a fast and accurate device to test the performance of finished battery. The system uses 32-bit ARM processor and 16 bit AD converter for voltage and current. Compared with similar equipment, the test speed is fast, the test accuracy is high, and multiple devices can be operated at the same time. Widely used in automotive electronics, aerospace, shipping, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communication power and other power battery pack production and research and experimental testing
Product Features
Open Circuit Voltage:Test the voltage at the positive and negative ends of the battery open circuit.
AC Internal Resistance:Test the resistance at both ends of the battery discharge circuit.
Discharge Test: Test the continuous loading capacity of the battery, let the battery discharge for a certain period of time, and check the voltage drop. Discharge Over Current Test:Test the protection function of battery high current discharge, and the high current discharge of battery triggers the discharge over-current protection function of battery protection board. Short Circuit Protection: Test the protection time (microsecond level) when the positive and negative poles of the battery are short circuited. Charging Test:Test the battery continuous charging function, test whether the battery charging function is good. Charging Over Current Test: Test battery high current charging protection function, battery high current charging trigger battery protection board charging current protection function.
Product Specification
|
Input power
|
AC 220V ±10% / 50Hz
|
||
|
Test category
|
Test items
|
Testing range
|
Accuracy
|
|
Open circuit voltage
|
Open circuit voltage1
|
0-100V
|
±2mV
|
|
Open circuit voltage2
|
0-100V
|
±2mV
|
|
|
Discharge test
|
Starting voltage
|
0-100V
|
±2mV
|
|
End voltage
|
0-100V
|
±2mV
|
|
|
Discharge current
|
0.1-60A
|
±1mA
|
|
|
Discharge time
|
0-60S
|
±1mS
|
|
|
Discharge over current test
|
Over discharge current
|
4-120A
|
±1mA
|
|
Over current delay
|
0-20S
|
±1mS
|
|
|
Short circuit protection
|
Short circuit protection delay
|
0-9999uS
|
±1uS
|
|
Charging test
|
Starting voltage
|
0-100V
|
±2mV
|
|
End voltage
|
0-100V
|
±2mV
|
|
|
Charging current
|
0.1-20A
|
±1mA
|
|
|
Charging time
|
0-60S
|
±1mS
|
|
|
Charging protection test
|
Charging over current
|
4-20A
|
±1mA
|
|
Charging delay
|
0-20S
|
±0.1mS
|
|
|
Internal impedance
|
|||
|
AC internal resistance test
|
0-1000mΩ
|
±1mΩ
|
|
|
Online mode
|
Serial communication (RS232, multiple)
|
||
|
Sustainable output power
|
2KW
|
||
|
Sustainable load power
|
6KW
|
||
|
Test record keeping
|
Save to database (SQL) or file (Excel)
|
||
