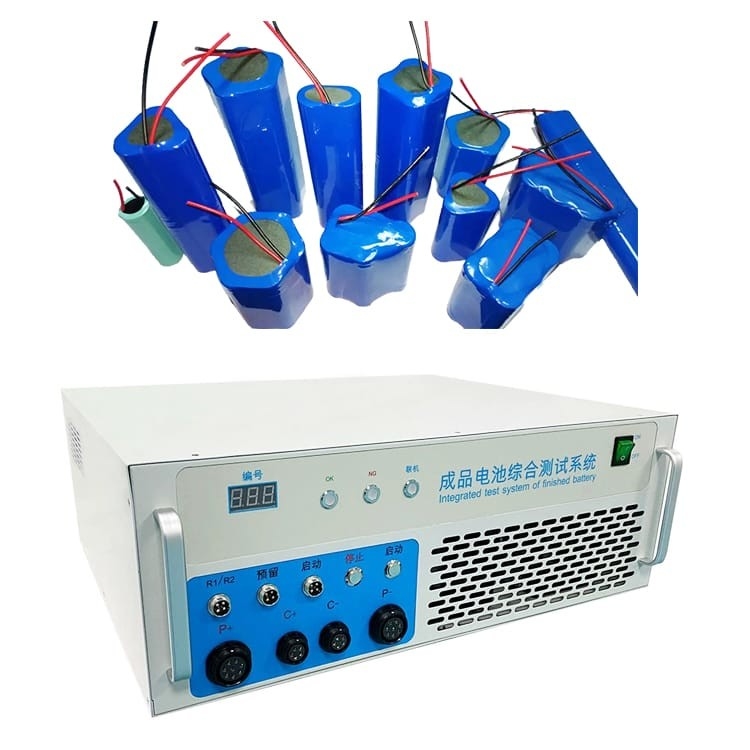

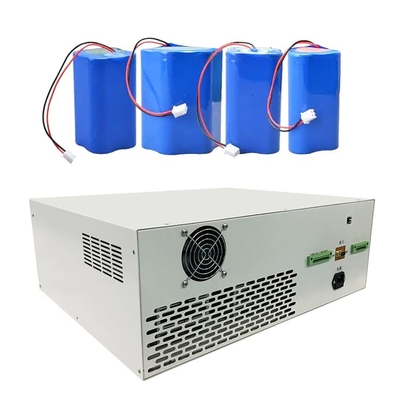

18650 Lithium Ion Battery Testing Machine Multifunction For 72V Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BTS100-20-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5800/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Place Of Origin:: | Guangdong, China | Product Name:: | Battery Comprehensive Tester |
|---|---|---|---|
| Dual Voltage:: | 0-9.999V | Essential Resistance:: | 0-999 MΩ |
| Charge And:: | 50-2000 MA | Boundary Dimension:: | 100mm(L)* 80mm(W)* 130mm(H) |
| Power:: | Electronic | Input Power:: | AC220V ±10%/50HZ |
| Charging Range:: | 0.1-20A | Overdischarge Current:: | 0-19.99A |
| Highlight: | Multifunction lithium ion battery testing machine,72V lithium ion battery testing machine,18650 battery voltage tester |
||
Product Description
18650 Lithium Ion Battery Testing Machine Multifunction For 72V Battery
Product Features
1.The equipment is suitable for filling and discharging the same mouth
2.equipment and computer communication using photoelectric isolation

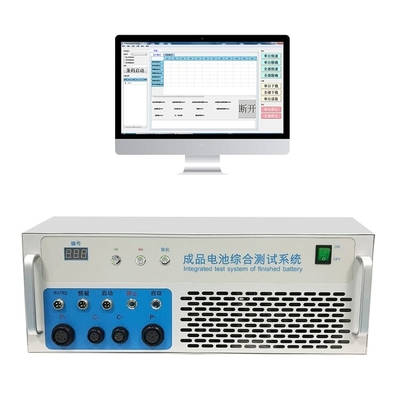

3.self checking function,software programmable control,friendly human-machine interaction interface
4.battery overcurrent test,short circuit test and split capacity test,can save test data
5.battery internal resistance test,load carrying capacity test,monomer consistency evalution
Specifications
| Rated parameters | discharge current | 10s load current | 1S over current test | short-circuit current |
| Test paramaters of 12V battery | 300A | 600A | 900A | 5000A |
| Test paramaters of 24V battery | 150A | 300A | 450A | 5000A |
| Test paramaters of 36V battery | 100A | 200A | 300A | 5000A |
| Test paramaters of 48V battery | 75A | 150A | 225A | 5000A |
| Test paramaters of 60V battery | 60A | 120A | 180A | 5000A |
| Test paramaters of 72V battery | 50A | 100A | 150A | 5000A |
| Test paramaters of 84V battery | 42A | 85A | 125A | 5000A |
| Test paramaters of 96V battery | 37A | 75A | 110A | 5000A |
Product Specification
Battery TesterZTW500 | Range | Minimum resolution | Precision:±(% Reading + number) |
Single voltage | 0-4.999V | 1mV(0.001V) | ±(0.03% + 2 ) |
Dual voltage | 0-9.999V | 10mV(0.01V) | ±(0.05% + 3 ) |
Essential resistance | 0—999 mΩ | 1 mΩ | ±(0.1% + 2 ) |
Short retention period | 0-99.9 ms | 0.1 ms | ±(1% + 3 ) |
Identification resistor | 0-999.9 KΩ | 0.1KΩ | ±(1% + 3 ) |
Charge and discharge current | 50—2000 mA | 1 mA | ±(0.5% + 5 ) |
Single-section overdischarge current | 0-8.00A | 10mA(0.01A) | ±(1% + 5 ) |
Overdischarge current | 0-19.99A | 10mA(0.01A) | ±(1% + 5 ) |
Capacity | 0—9999 mAh | 1mAh | ±<3% |
