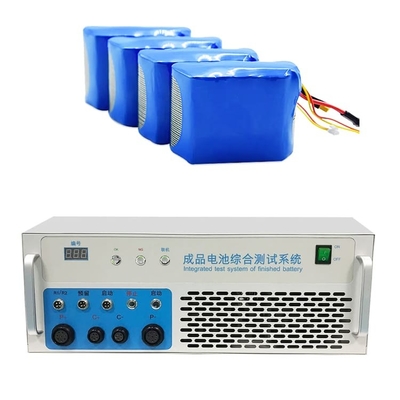

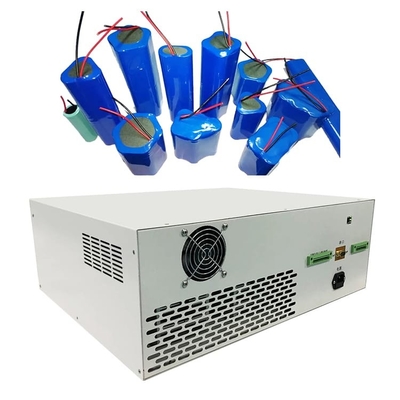

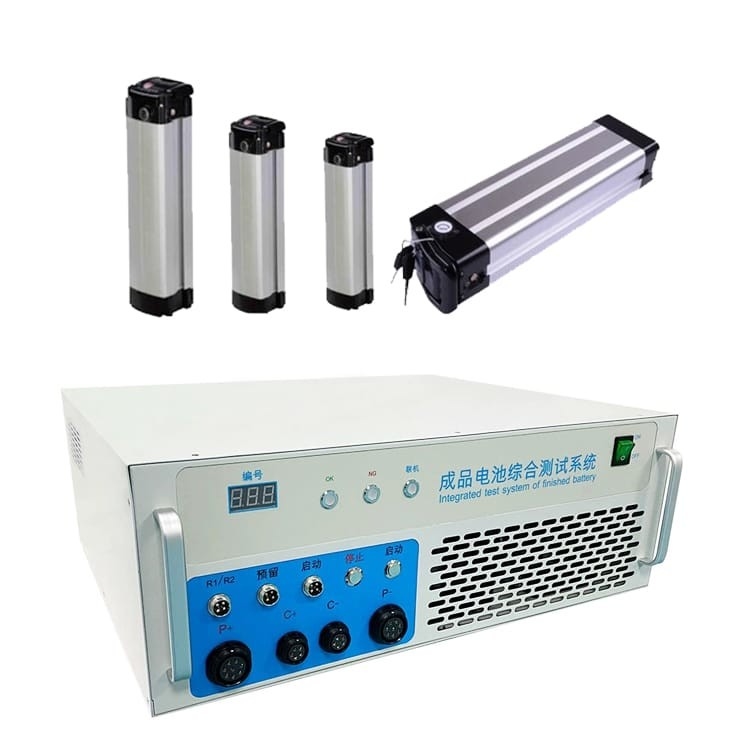

Battery Pack Comprehensive Test Instrument Lithium Battery Testing Machine Finished Battery Pack Inspector
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BTS100-20-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5800/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Power: | AC220V±10%/50Hz | Measuring Range: | 10-100V |
|---|---|---|---|
| Sustainable Output Power: | 2KW | Sustainable Load Power: | 6KW |
| Resolution: | ±0.1uS | Voltage And Current Detection Sampling: | Four-wire Sampling |
| Over Discharge Current: | 4-120A | Upper Computer Communication Mode: | Based On TCP/IP Protocol/Serial Port |
| Test Record Keeping: | EXCEL/TXT/Chart | Communication Interface: | Save To Database (SQL) Or File (EXCEL) |
| Highlight: | 120A battery capacity meter discharge tester,6KW lithium ion battery load tester,lithium ion battery load tester |
||
Product Description
Battery Pack Comprehensive Test Instrument Lithium Battery Testing Machine Finished Battery Pack Inspector
Product Description
The BTS100-20-120 lithium battery comprehensive test equipment is a device for quickly and accurately testing the performance of the finished battery. The system uses a 32-bit ARM processor, and the voltage and current use a 16-bit AD converter. Compared with similar equipment, the test speed is faster, the test accuracy is higher, and it supports simultaneous operation of multiple devices.
This equipment is widely used in automotive electronics, aerospace, shipbuilding, solar energy storage, electric bicycles, electric bicycles, electric motorcycles, backup power batteries, communication power supplies and other power battery pack production and scientific research experiment tests.
Product Features
Open circuit voltage, AC internal resistance, discharge test, discharge overcurrent test, short circuit protection test, charge test, charge protection test, etc.
Product Advantages
1. Open circuit voltage: test the voltage at both ends of the open circuit of the battery.
2. AC internal resistance: test the resistance at both ends of the battery discharge circuit.
3. Discharge test: Test the continuous load capacity of the battery, let the battery continue to discharge for a certain period of time to check the voltage drop.
4. Discharge overcurrent test: test the battery high current discharge protection function, the battery high current discharge triggers the discharge overcurrent protection function of the battery protection board.
5. Short circuit protection: test the battery cut-off protection time (microsecond level) when the positive and negative poles of the battery are short-circuited.
6. Charging test: test the continuous charging function of the battery, and test whether the battery charging function is good.
7. Charging overcurrent test: Test the battery high-current charging protection function, and the battery high-current charging triggers the charging current protection function of the battery protection board.
Product Specification
|
Input power
|
AC 220V ±10% / 50Hz
|
||
|
Test class
|
Test items
|
Measuring range
|
Precision
|
|
Open circuit voltage
|
Open circuit voltage 1
|
10-100V
|
±2mV
|
|
Open circuit voltage 2
|
10-100V
|
±2mV
|
|
|
Discharge test
|
Starting voltage
|
0-100V
|
±2mV
|
|
End voltage
|
0-100V
|
±2mV
|
|
|
Discharge current
|
0.1-60A
|
±1mA
|
|
|
Discharge time
|
0-60S
|
±1mS
|
|
|
Discharge overcurrent test
|
Over discharge current
|
4-120A
|
±1mA
|
|
Overcurrent delay
|
0-20S
|
±1mS
|
|
|
Short circuit protection
|
Short circuit protection delay
|
0-9999uS
|
±1uS
|
|
Charging test
|
Starting voltage
|
10-100V
|
±2mV
|
|
End voltage
|
10-100V
|
±2mV
|
|
|
recharging current
|
0.1-20A
|
±1mA
|
|
|
Charging time
|
0-60S
|
±1mS
|
|
|
Charge protection test
|
Charging overcurrent
|
4-20A
|
±1mA
|
|
Charging delay
|
0-20S
|
±0.1mS
|
|
|
AC internal resistance
|
AC internal resistance test
|
0-1000mΩ
|
±1mΩ
|
|
Sustainable output power
|
2KW
|
||
|
Sustainable load power
|
6KW
|
||
|
Test record keeping
|
Save to database (SQL) or file (EXCEL)
|
||
