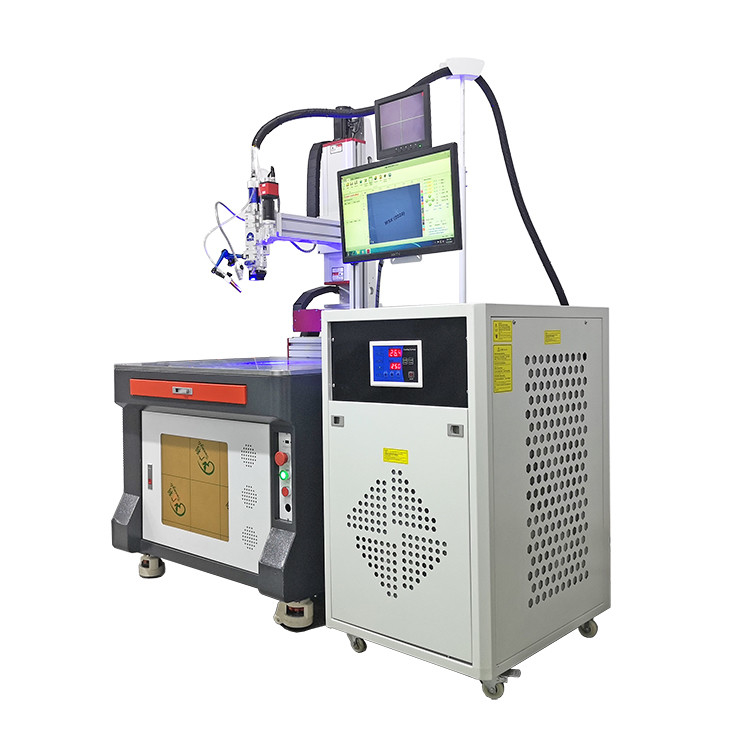

Prismatic Battery Laser Spot Welding Machine 2000W CCD Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-C1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-BW2000W | XY Travel: | Customizable, Max 700*500mm |
|---|---|---|---|
| Z Travel: | Customizable, Max 400mm | Control Method: | Control Card And Computer |
| Laser Power: | 1000W 1500W 2000W 3000W | Maximum Depth Of Weld: | 2mm |
| Fiber Cable Length: | 10m | Working Voltage: | 220V/32A |
| Highlight: | 2000W laser spot welding machine,CCD monitoring laser spot welding machine,Prismatic Battery automatic laser welding machine |
||
Product Description
Prismatic Battery Pack Automatic Continuous Fiber Battery Laser Welding Machine
Laser welding is one of the important aspects of laser material processing technology. The welding process belongs to the heat conduction type, the laser radiation heats the workpiece surface, and the heat on the surface diffuses through the heat transfer guide. By controlling the width, energy, peak power and repetition frequency of laser pulse, the workpiece is melted to form a specific molten pool.
Laser welding is a new type of welding method. Laser welding mainly aims at the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stack welding, seal welding, etc.
Features:
1) Equipped X/Y/Z three-axis motion platform, driven by servo motor, stroke can be customized, fast running speed and high precision;
2) HD CCD monitoring system, the welding condition is clearly visible to avoid outflow of defective products.
3) Professional control software, graphical operation interface, user-friendly, simple operation;
4) Can be welded in any shape, such as point, line, circle, square,custom shape, etc.;
5) Optional swing welding head, welding in the form of a circle, to meet higher welding process requirements.
6) It can customize special automatic fixture to realize mass production of products
Battery laser welding machine parameters
|
No
|
Item
|
XW-BW1000W
|
XW-BW1500W
|
XW-BW2000W
|
XW-BW3000W
|
|
1
|
Laser Power
|
1000W
|
1500W
|
2000W
|
3000W
|
|
2
|
Voltage
|
Single phase 220V/50Hz 3-phase 380V/50Hz
|
|||
|
3
|
Control Method
|
Control card and computer
|
|||
|
4
|
XY Travel
|
Customizable, Max 700*500mm
|
|||
|
5
|
Z Travel
|
Customizable, Max 400mm
|
|||
|
6
|
R Axis
|
Optional, 360° rotation
|
|||
|
7
|
Laser Source Brand
|
RAYCUS/JPT
|
|||
|
8
|
Position Accuracy
|
±0.02mm
|
|||
|
9
|
Repeatability Accuracy
|
±0.01mm
|
|||
|
10
|
Motion Source
|
Servo motor
|
|||
|
11
|
Max Speed
|
500mm/s
|
|||
|
12
|
Welding Penetration
|
0.1-3.0mm
|
|||
|
13
|
Cooling Method
|
Water cooling 1P-3P
|
|||
|
14
|
Laser Wavelength
|
1080nm
|
|||
|
15
|
Observation System
|
Red light and CCD system
|
|||
|
16
|
Consumables
|
Protection lens, purified water, protection gas
|
|||
|
17
|
Weight
|
About 450kg
|
|||
High-performance Laser Generator & Industrial Control Computer
The JPT is China famous brand of laser generator.
JPT’s single-mode continuous fiber laser is an optimized combination of optical, mechanical, electrical, and soft. Through the control interface and Jept’s standard software, the laser’s operating status can be monitored and alarmed in real time. Collect and record operating data. The laser adopts water-cooled heat dissipation and rack-mounted chassis design. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, flexible fiber optic transmission output, and easy integration for customers. It is industrial laser cutting, welding and other Ideal light source for application.
Chiller Controller
It is very important to match a suitable chiller for the laser welding machine. The cooling performance and temperature control accuracy of the chiller are closely related to the stability of the laser output.
Compressed Air & Protect Gas
Compressed air is used to protect the lens of the laser welding head, and protect gas is used to protect the workpiece to be welded from oxidation
Buttons
The welding machine have Emergency Stop button, Start button, and Stop button for fast operation.
