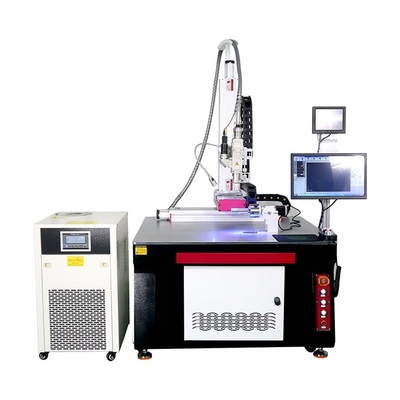

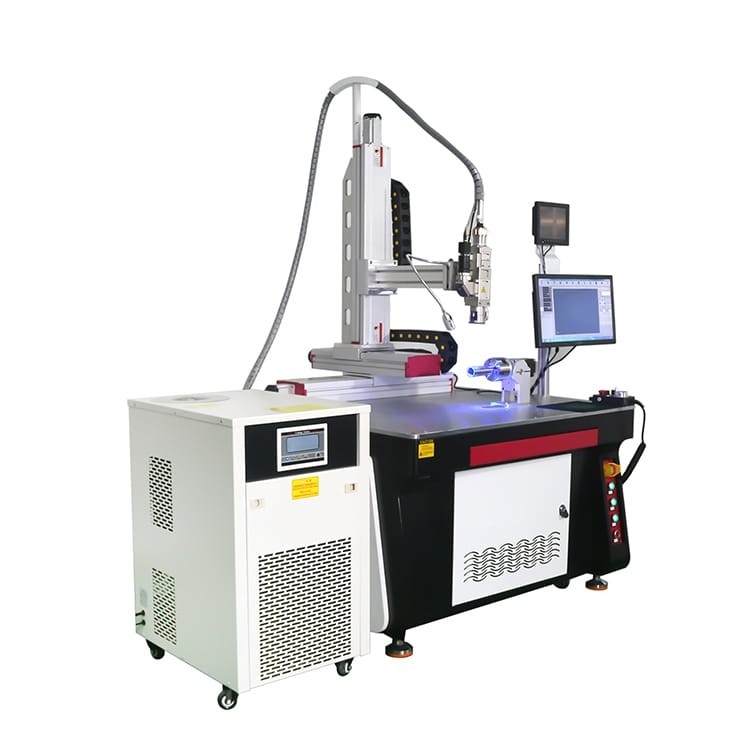

Galvanometer Continuous Fiber Laser Welding Machine 1064 Nm Wavelength
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-C1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-C1000W | Type: | Continuous Fiber |
|---|---|---|---|
| Laser Power: | 500W 1000W 1500W 2000W 3000W | Laser Wavelength: | 1064 Nm |
| Depth Of Laser Welding: | 0.1-2.0 Mm | Pulse Width: | 0.3-20ms |
| Fiber Cable Length: | 10m | Working Voltage: | 220V/32A |
| Highlight: | Galvanometer spot laser welding machine,1064 Nm spot laser welding machine,Galvanometer Fiber Laser Welding Machine |
||
Product Description
Fiber Laser Welding Machine Lithium Battery Welding Galvanometer Laser Welding Machine
Introduction:
The welding machine is used the galvanometer as the control system of the laser beam. Oscillated scanning lens is used instead of moving the workpiece or working table, less time welding in the scanning range. The greater distance between the points, more number of marking points on the workpiece and give more advantages. The efficiency is 4-10 times more than ordinary laser welding; Using high-precision optical system to ensure the consistency of each welding spot; Computer controlled systems and use windows based software which easier to operate.
Working scope:
Suitable for welding connecting pieces of new energy lithium battery packs.
Can weld aluminum-aluminum, aluminum-copper, copper-copper and other materials.
Suitable for welding connecting pieces, tabs, poles, explosion-proof valves, bus bars, etc.
Features:
1. Using the British imported ceramic condenser, high corrosion resistance, high temperature resistance, for 8-10 years life.
2. HD CCD monitoring system, the welding condition is clearly visible to avoid outflow of defective products.
3. The energy distribution of welding spot is uniform, with the best spot needed for welding characteristics.
4. Servo drive workbench speed is 2-3 times of 0.02mm, escort for precision machining.
5. Laser welding can be used for spot welding, butt welding, overlay welding and sealing welding of thin-walled materials and precision parts.
6. It can customize special automatic chemical fixture to realize mass production of products.
Laser machine specifications
|
1
|
Laser power
|
500W 1000W 1500W 2000W 3000W
|
|
2
|
Laser wavelength
|
1064 nm
|
|
3
|
Monopulse Power
|
90j-150j
|
|
4
|
Depth of laser welding
|
0.1-2.0 mm
|
|
5
|
Power consumption
|
≤13KW
|
|
6
|
Electricity demand
|
220V ± 10%/50Hz/30A
|
|
7
|
Pulse width
|
0.3-20ms
|
|
8
|
Laser welding frequency
|
1-100Hz
|
|
9
|
Adjustable spot size range
|
0.2-2 mm
|
|
10
|
Repeatability
|
± 0.01 mm
|
