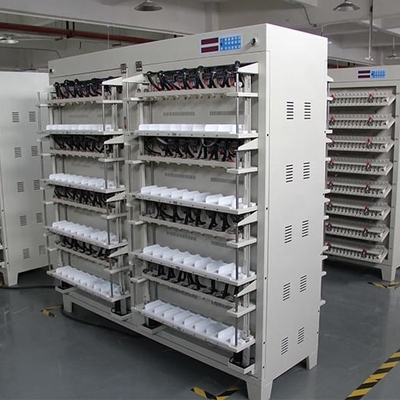

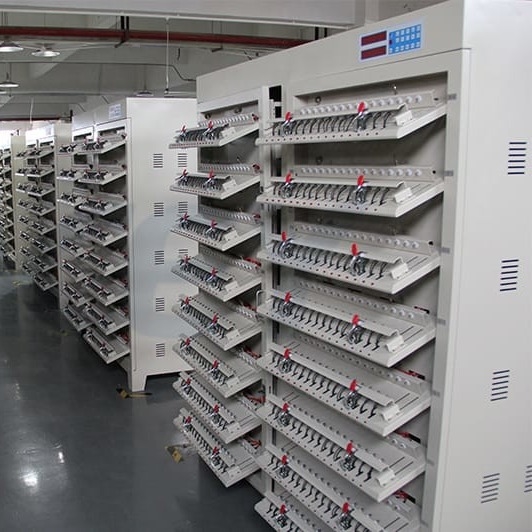

512 Channels 26650 16500 18650 Battery Analyzer 20 Kw Power

Brand Name:	XWELL
Model Number:	S11-512-6A
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

512 Channels Battery Charge And Discharge Testing Machine

Model:

S11-512-6A

Input:

220V 50/60 Hz

Power:

20 Kw

Channels:

512 Channels

Battery Type:

Cylindrical Battery

Current:

Range: 5mA – 2/3/5 A Accuracy: ±(0.05% Of Reading + 0.1% Of Range)

Weight:

200KG

Supply Ability:

100 pcs per month

Highlight:

512 Channels 18650 battery analyzer

18650 battery analyzer

16500 battery charge tester

Product Description

512 Channels Battery Grading Machine 18650/26650/32650 Lithium Ion Battery Cell Charge and Discharge machine with factory price

Product Description

1. Cylindrical Cell Battery Capacity Analyzer mainly constitute by the computer system and control software, communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.

2. Each battery test station has independent constant current and constant voltage power.

3. Using a unique constant current constant voltage power, constant current to constant voltage switch without impact, especially suitable for lithium ion battery charging and discharging requirements.

4. Per device consists of a set of completely independent MCU control system.

5. Specially used for chemical and capacity separation of cylindrical lopo battery.

Customizable current range: 0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.

Customizable voltage range: 0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.

Product Specification

Product Name	512 channels battery charge and discharge testing machine
Model	S11-512-6A
Input	220V 50/60 Hz
Power	20 Kw
Channels	512 channels
Battery Type	Cylindrical battery
Charging current	Range: 0-5v for charging, 0.8v-5v for discharging Accuracy: ±(0.05% of reading + 0.1% of range)
Current	Range: 5mA – 2/3/5 A Accuracy: ±(0.05% of reading + 0.1% of range)
Weight	200KG
Size	20004002000 mm
