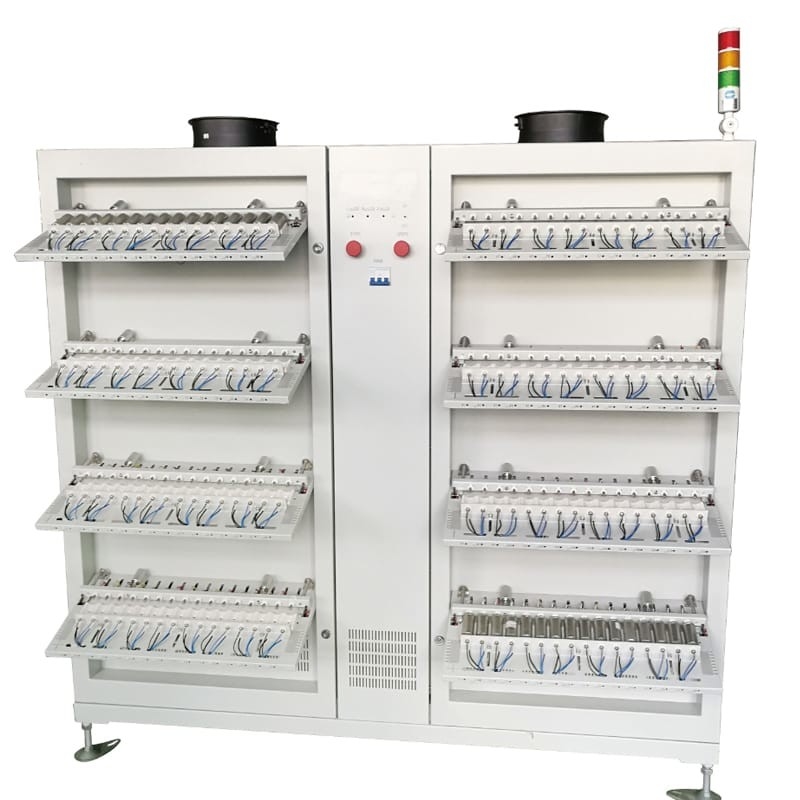

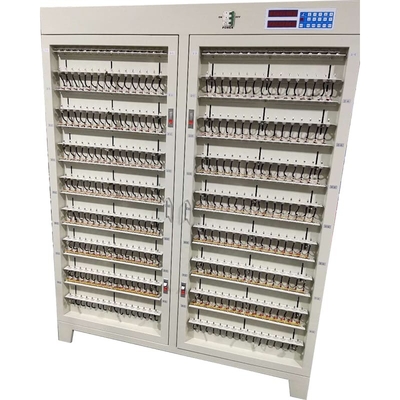

CPU Control Battery Cell Grading Machine , 18650 Battery Mah Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Number Of Device Channels: | 512 (Single CPU Control) | Constant Current Range: | 0.05 ~ 6A, Resolution 1mA |
|---|---|---|---|
| Accuracy Of Current Measurement: | ±0.1%FS | Sampling Current Accuracy: | ±0.1%FS |
| Voltage Measurement Range: | 0 ~ 5V, Resolution 1mV | Accuracy Of Voltage Measurement: | ±0.1%FS |
| Charging And Discharging Voltage Range: | Charging: 0 ~ 4.5V, Discharging: 4.5 ~ 2V | Constant Voltage Setting Range: | 3 ~4.5V |
| Accuracy Of Constant Pressure Setting: | ±0.1%FS | Time Range: | 0-30000 Min / Step, Accuracy: ± 0.1% |
| Highlight: | CPU Battery Cell Grading Machine,26650 Battery Cell Grading Machine,18650 battery mah tester |
||
Product Description
18650 26650 16500 21700 Lithium Bag Cylindrical Battery Professional Battery Testing Notebook Battery Analyzer
Product Description
Four key technologies:
1. Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology
2. High efficiency: labor efficiency increased by 50%
3. High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology
4. Energy-saving battery based on high-frequency power feedback technology
The working principle of chemical composition equipment:
Charging mode: PWM switching power supply mode is adopted to realize constant current and constant voltage charging of the battery.
Advantages: high power conversion efficiency, generally above 85%.
Discharge mode: First, the voltage of the battery is increased by the PWM boost circuit and sent to the inverter power supply, and then gradually increased to be converted into AC power and sent to the AC grid, and finally the battery discharge power is fed back and reused.
Advantages: The discharged electric energy of the power supply is well recycled and reused, and the energy saving effect is obvious.
Product stability: Single-point independent constant current and constant voltage power supply, complete protection functions, stable operation, selected materials, fine craftsmanship, higher service life than peers, and fast inspection speed.
Technical excellence: The feeder-type energy-saving mode design is adopted, which has high energy-saving efficiency, flexibility, and humanized intelligent operation. The product linearity, accuracy and speed have reached high standards, and the maintenance and upgrades are good for expansion.
Accuracy: Each battery fixture is designed with the internationally popular four-wire principle, which avoids the superimposition of the internal resistance of the tester on the internal resistance of the battery and makes the test results more accurate.
Flexible: When the battery under test has low voltage, undercurrent, overvoltage, or overcurrent, the control system will close this channel and separate the battery from the device.
Cost-effective: rich experience, strong technology, professional management team, wide range of product use and praise from customers, the performance indicators and product quality of similar products have the most cost-effective advantages.
7*24 hours after-sales service: The product is guaranteed for one year, free of charge and careful technology."
Product Specification
| Number of device channels | 512 (Single CPU control) |
| Constant current range | 0.05 ~ 6A, resolution 1mA |
| Accuracy of current measurement |
±0.1%FS
|
| Sampling current accuracy |
±0.1%FS
|
| Voltage measurement range | 0 ~ 5V, resolution 1mV |
| Accuracy of voltage measurement |
±0.1%FS
|
| Charging and discharging voltage range | Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V |
| Constant voltage setting range | 3 ~4.5V |
| Accuracy of constant pressure setting |
±0.1%FS
|
| Time range | 0-30000 min / step, accuracy: ± 0.1% |
| Heat dissipation mode | Cold wind |
| Battery Clamp | Cylinder clamp, polymer clamp |
| Work loop source |
Temperature: 0 ~ 40 ℃, relative temperature ≤ 85% (no water condensation) |
| External size | 1600mm (W) × 550mm (L) × 1840mm (H) |
| Working power supply |
Three phase four wire system, AC380V ± 150%, 50Hz |
| Power consumption at full load |
≤19KW
|
|
Minimum configuration of computer system:
|
1. Dual core CPU or above, 2. 4G or above memory, 3. 500GB or above hard disk space, 4. EGA / VGA color display, one CD-ROM, one mouse 5. Windows XP or above operating system, one 6. RS232 serial communication port available. 7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs. |
