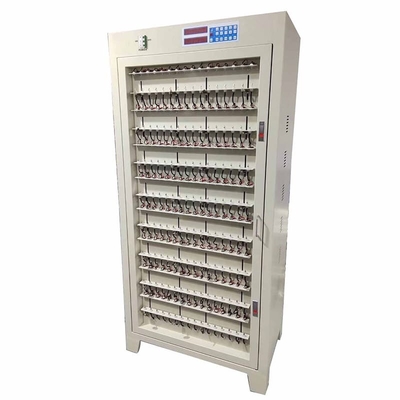

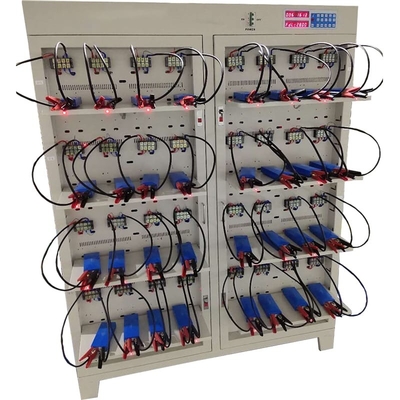

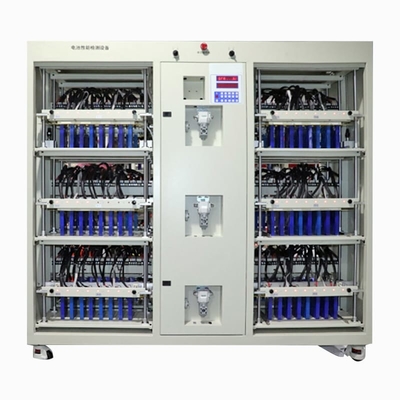

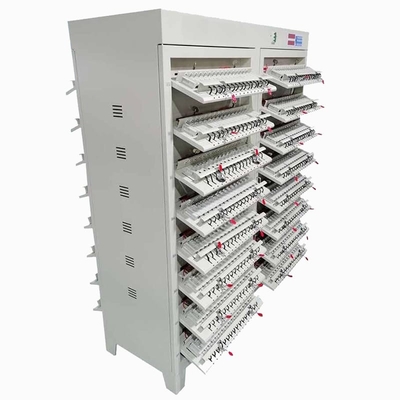

Ir Tester Battery Cell Grading Machine 64 96 192 Channel For Prismatic Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Working Power: | Three-phase Five-wire System AC380V±10%, 50HZ | Work Environment: | Temperature 0-40 Degrees, Relative Humidity ≤80% |
|---|---|---|---|
| Heat Dissipation: | To Enter The Air Naturally And Exhaust The Air Upward | Overall Energy Saving: | Over 70% |
| Voltage Measuring Range: | 0-5V, 1MV Resolution | Battery Voltage Range: | Charge 0-4.5V: Discharge 4.5-2V |
| Constant Voltage Range: | 2.5V-4.5V | Voltage Accuracy: | ±(1‰ Reading +1‰ Full) |
| Control Mode: | Computer Connection Equipment Work, FCL Control | Communication Mode: | RS485 Baud Rate 57,600 |
| Highlight: | 192 Channel Battery Cell Grading Machine,Prismatic Battery Cell Grading Machine,4.5V ir tester for battery |
||
Product Description
64 96 192 Channel Battery IR Voltage Current Tester Charge Discharge Energy Feed Back Machine For Lithium Prismatic Cell
Product Description
Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.
*Each channel can be started and stopped at a single point, and the response speed is fast.
*The operation is simple, convenient and intuitive
*Modular design, easy to maintain.
*The digital current and voltage automatic calibration function
*Using network connection and SQL database
*The hardware technology is advanced, stable and durable.
Product Features
1. Special making for lithium battery.
2. Can be working separately, timing separately.
3. Auto A/D Current (Set the current, time, steps by keyboard.)
4. 16 serials tandem type constant current sources, each source can load 16pcs of batteries.
5. Constant current sources are separate, no influence on each other.
6. Each constant current source is corresponding with 3 1/2 current indications.
7. Power Fail Safeguard, can continuously work when the power gets well.
8. Special clamp for LiPo.
Product Specification
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||

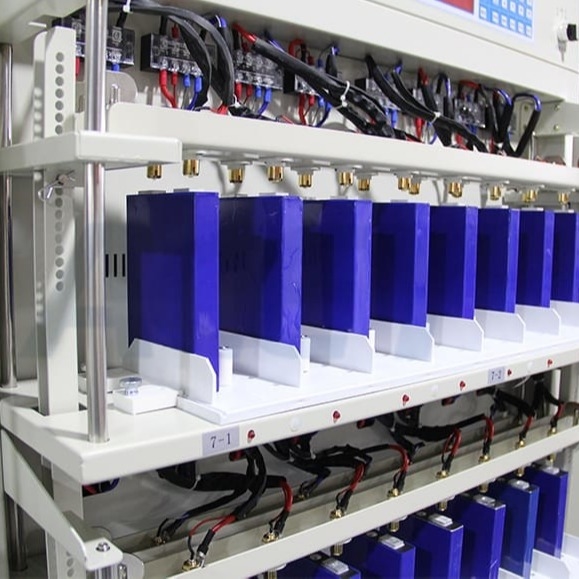

XWELL can provide different fixtures for different types of cells
