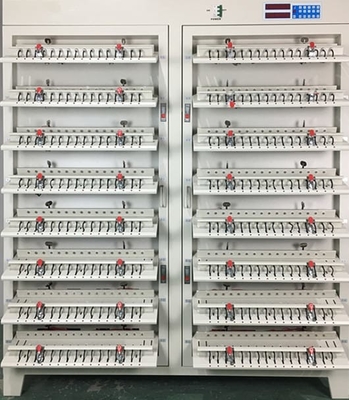

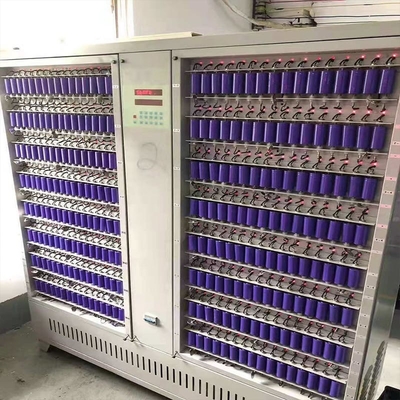

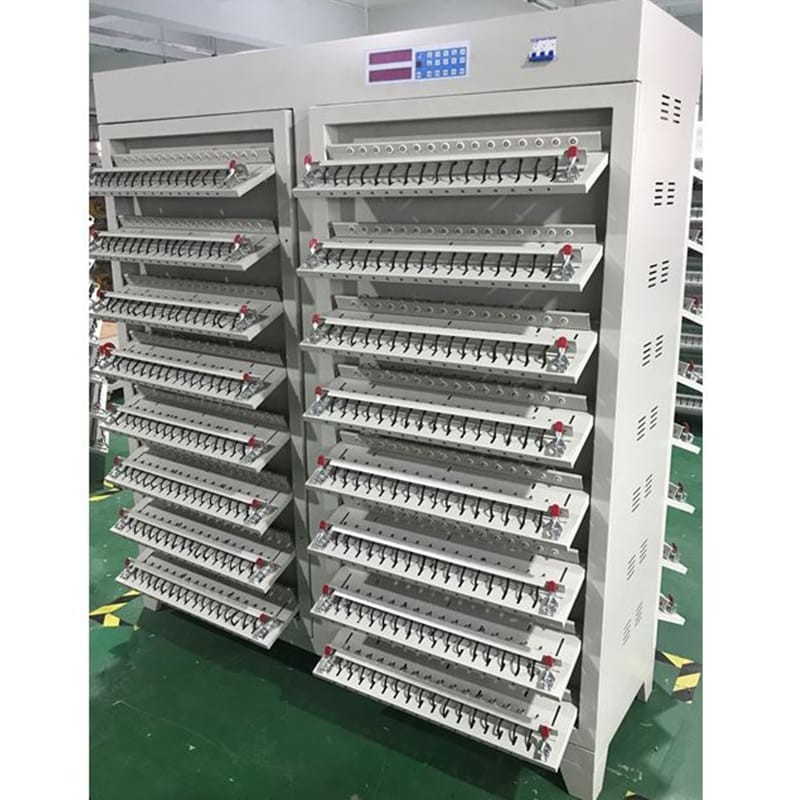

5v 18650 Battery Tester Charging Discharging 3A Constant Current
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-3A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Number Of Device Channels: | 512 (Single CPU Control) | Constant Current Range: | 0.05 ~ 3A, Resolution 1mA |
|---|---|---|---|
| Accuracy Of Current Measurement: | ±0.1%FS | Sampling Current Accuracy: | ±0.1%FS |
| Voltage Measurement Range: | 0 ~ 5V, Resolution 1mV | Accuracy Of Voltage Measurement: | ±0.1%FS |
| Charging And Discharging Voltage Range: | Charging: 0 ~ 4.5V, Discharging: 4.5 ~ 2V | Constant Voltage Setting Range: | 3 ~4.5V |
| Highlight: | Discharging 18650 battery tester,3A 18650 battery tester,5v battery tester |
||
Product Description
| Number of device channels | 512 (Single CPU control) |
| Constant current range | 0.05 ~ 3A, resolution 1mA |
| Accuracy of current measurement |
±0.1%FS
|
| Sampling current accuracy |
±0.1%FS
|
| Voltage measurement range | 0 ~ 5V, resolution 1mV |
| Accuracy of voltage measurement |
±0.1%FS
|
| Charging and discharging voltage range | Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V |
| Constant voltage setting range | 3 ~4.5V |
| Accuracy of constant pressure setting |
±0.1%FS
|
| Time range | 0-30000 min / step, accuracy: ± 0.1% |
| Heat dissipation mode | Cold wind |
| Battery Clamp | Cylinder clamp, polymer clamp |
| Work loop source |
Temperature: 0 ~ 40 ℃, relative temperature ≤ 85% (no water condensation) |
| External size | 1600mm (W) × 550mm (L) × 1840mm (H) |
| Working power supply |
Three phase four wire system, AC380V ± 150%, 50Hz |
| Power consumption at full load |
≤19KW
|
|
Minimum configuration of computer system:
|
1. Dual core CPU or above, 2. 4G or above memory, 3. 500GB or above hard disk space, 4. EGA / VGA color display, one CD-ROM, one mouse 5. Windows XP or above operating system, one 6. RS232 serial communication port available. 7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs. |
| General equipment configuration and standards |
1. Appearance color of equipment, Case: silver white, Cabinet: silver white. 2. Attach the Chinese operation manual and software U disk. |
