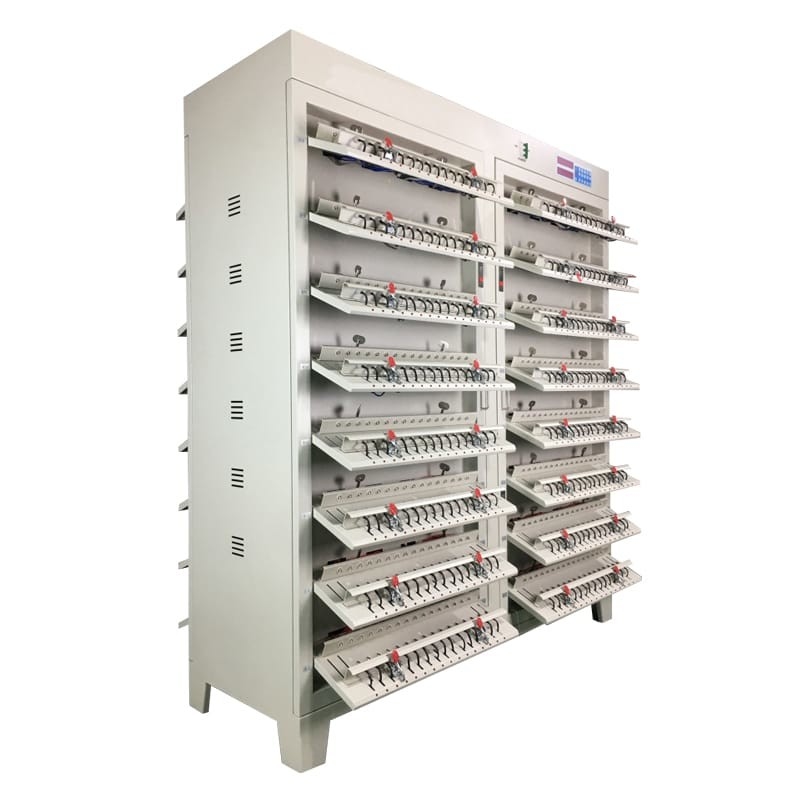

6A Battery Cell Grading Machine , 512 Lab 18650 Capacity Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Number Of Device Channels: | 512 (Single CPU Control) | Constant Current Range: | (0.05 ~ 2A/3A/5A/6A), Resolution 1mA |
|---|---|---|---|
| Accuracy Of Current Measurement: | ±0.1%FS | Sampling Current Accuracy: | ±0.1%FS |
| Voltage Measurement Range: | 0 ~ 5V, Resolution 1mV | Accuracy Of Voltage Measurement: | ±0.1%FS |
| Charging And Discharging Voltage Range: | Charging: 0 ~ 4.5V, Discharging: 4.5 ~ 2V | Constant Voltage Setting Range: | 3 ~4.5V |
| Accuracy Of Constant Pressure Setting: | ±0.1%FS | Time Range: | 0-30000 Min / Step, Accuracy: ± 0.1% |
| Highlight: | 6A Battery Cell Grading Machine,512 Lab Battery Cell Grading Machine,18650 capacity tester |
||
Product Description
512 Lab Li-ion 18650 Cylindrical Battery Pack Charging and Discharging Tester Machine for Cell Capacity Testing
Product Description
512 Channel Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.
This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.
This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.
Current range: 0.05A-2A, 0.05A-3A, 0.05A-5A,0.05A-6A optional.
Suitable for: Cylindrical cell or pouch cell.
Product Features
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;
F) Set operator authority and operate in different levels;
Display charge discharge curve and cycle chart;
Product Specification
| Number of device channels | 512 (Single CPU control) |
| Constant current range | (0.05 ~ 2A/3A/5A/6A), resolution 1mA |
| Accuracy of current measurement | ±0.1%FS |
| Sampling current accuracy | ±0.1%FS |
| Voltage measurement range | 0 ~ 5V, resolution 1mV |
| Accuracy of voltage measurement | ±0.1%FS |
| Charging and discharging voltage range | Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V |
| Constant voltage setting range | 3 ~4.5V |
| Accuracy of constant pressure setting | ±0.1%FS |
| Time range | 0-30000 min / step, accuracy: ± 0.1% |
| Heat dissipation mode | Cold wind |
| Battery Clamp | Cylinder clamp, polymer clamp |
| Work loop source |
Temperature: 0 ~ 40 ℃, relative temperature ≤ 85% (no water condensation) |
| External size | 1600mm (W) × 550mm (L) × 1840mm (H) |
| Working power supply |
Three phase four wire system, AC380V ± 150%, 50Hz |
| Power consumption at full load | ≤19KW |
|
Minimum configuration of computer system:
|
1. Dual core CPU or above, 2. 4G or above memory, 3. 500GB or above hard disk space, 4. EGA / VGA color display, one CD-ROM, one mouse 5. Windows XP or above operating system, one 6. RS232 serial communication port available. 7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs. |
| General equipment configuration and standards |
1. Appearance color of equipment, Case: silver white, Cabinet: silver white. 2. Attach the Chinese operation manual and software U disk. |

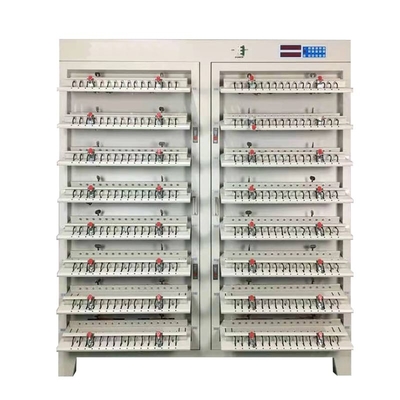

Cell grading machine details
