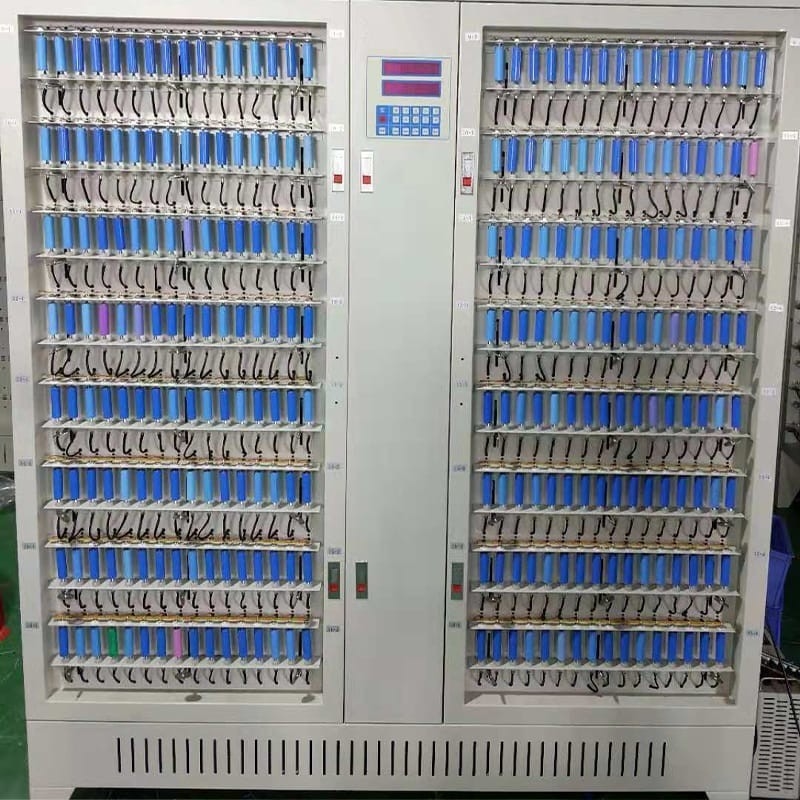

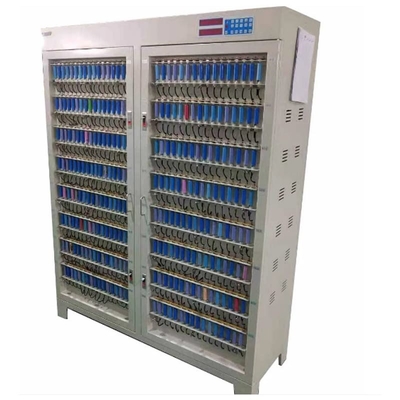

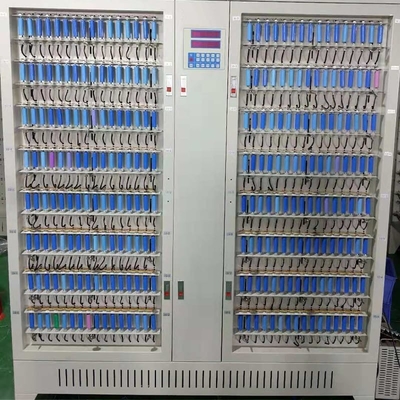

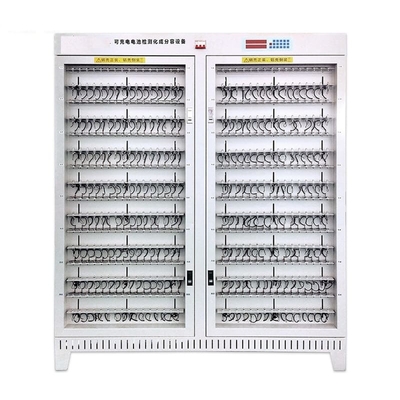

Cylindrical 18650 Cell Tester Capacity Tester 3 Phase AC380V 65dB Noise
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channel Voltage And Current: | 5V/3A | Channel Number: | 512 Channnels |
|---|---|---|---|
| Parallel Unit Number Per Channel: | 1 | Input AC Type: | 3 Phase AC380V ±10%/50Hz |
| Maximum Input Power: | 18KW | Noise: | ≤65dB |
| AC Power Supply Wiring Mode: | Three-phase Five Wire Connection | The Power Factor Of Power Supply: | ≥0.99(The Load Power Is More Than 30% Of Rated Power) |
| Highlight: | 3 Phase 18650 cell tester,65dB 18650 cell tester,AC380V Cylindrical battery testing equipment |
||
Product Description
5V 3A 5A 6A Lithium Battery Analyzer Charging Discharging test 18650 Machine Cylindrical 32650 Battery Capacity Tester
Product Description
1. Cylindrical Cell Battery Capacity Analyzer mainly constitute by the computer system and control software, communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.
2. Each battery test station has independent constant current and constant voltage power.
3. Using a unique constant current constant voltage power, constant current to constant voltage switch without impact, especially suitable for lithium ion battery charging and discharging requirements.
4. Per device consists of a set of completely independent MCU control system.
5. Specially used for chemical and capacity separation of cylindrical lopo battery.
Customizable current range: 0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.
Customizable voltage range: 0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.
Product Specification
Channel voltage and current | 5V/3A | |||
Channel number | 512 Channnels | |||
Parallel unit number per channel | 1 | |||
Input AC type | 3 phase AC380V ±10%/50Hz | |||
Maximum input power | 18KW | |||
Noise | ≤65dB | |||
AC power supply wiring mode | Three-phase five wire connection | |||
The power factor of power supply | ≥0.99(The load power is more than 30% of rated power) | |||
Total current distortion rate | THD≤5% | |||
Conversion efficiency | Each link conversion efficiency is more than 85% | |||
Constant voltage setting range | Charging:0.02V~5V | |||
Minimum discharge voltage | Discharging:1V~5V | |||
Measuring range | 0V~5V | |||
The voltage resolution | 0.1mV | |||
Accuracy of control | ±(0.05%RD+0.05%FS) | |||
Accuracy of measurement | ±(0.05%RD+0.05%FS) | |||
Charging current setting range | 0.02A~3A | |||
Discharging current setting range | 0.02A~3A | |||
Measuring range | 0A~3A | |||
The current resolution | 16 Bit AD,DA | |||
Accuracy of control | ±(0.05%RD+0.05%FS) | |||
Accuracy of measurement | ±(0.05%RD+0.05%FS) | |||
Temperature drift | 25PPM/℃ | |||
Power | Single channel maximum output power | 30W | ||
Channel sampling time | 0.1s | |||
Current response time | The maximum current rise time 20ms | |||
Steps setting time range | 1min~1024min | |||
Time accuracy | ±0.01% | |||
