Battery Cell Grading Machine

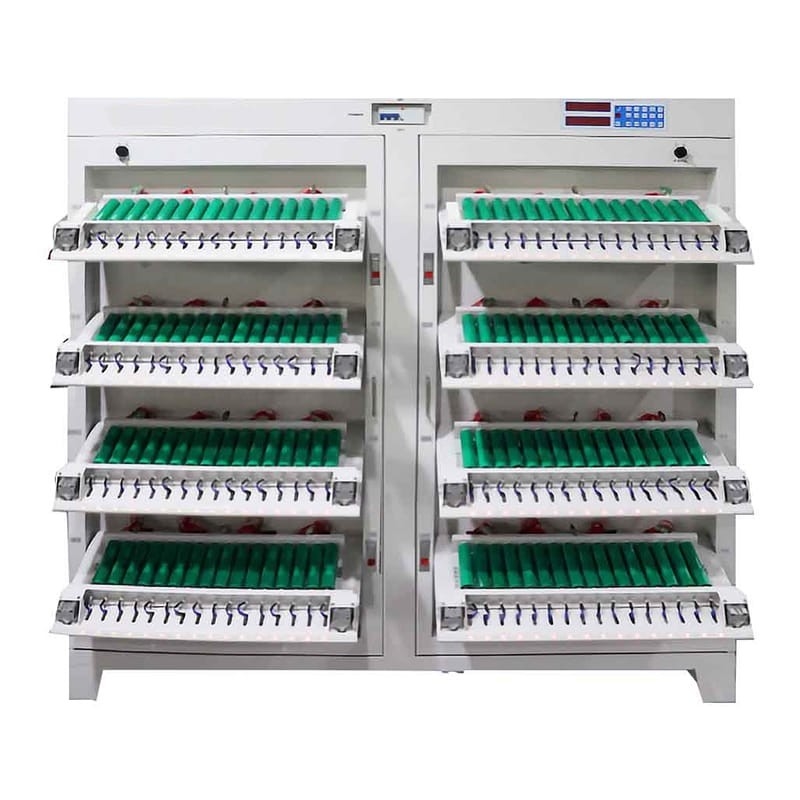

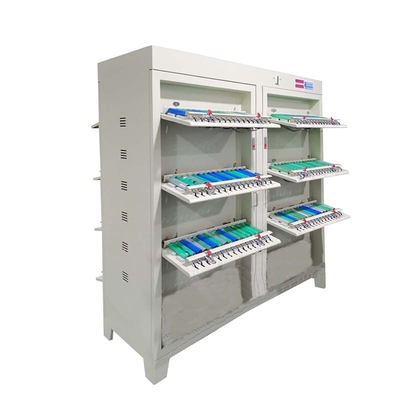

18650 Battery Checker Grading System 20A 128 Channel 50HZ Frequency

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

18650 Battery Checker Grading System 20A 128 Channel 50HZ Frequency

Brand Name:	XWELL
Model Number:	S11-512-6A
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Evice Channel Number:

The Whole Machine Has A Total Of 512 Channels

Dimensions:

Length 1684MM, Width 756MM, Height 1840MM, Chassis Width 500MM

Chassis Color:

Standard Blue And Black (customizable)

Fixture Form:

65 Blue And White Buckle

Fixture Spacing:

85CM

Support Battery Specifications:

Polymer Battery

Power Supply:

Three-phase Five-wire System AC380V±10%, 50HZ

Working Power Consumption:

≤8KW

Working Environment:

Temperature 0~40℃, Relative Humidity≤80%

Cooling Method:

Natural Intake, Upward Exhaust

Supply Ability:

100 pcs per month

Highlight:

128 Channel 18650 battery checker

50HZ 18650 battery checker

20A battery cell tester

Product Description

20A 128 Channel Lithium Battery Pack Capacity Grading System Tester Aging Cabinet Charging and Discharging Test Machine Detector

Product Description

1, Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology

2, High efficiency: labor efficiency increased by 50%

3, High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology

Product Features

1, Product stability: Single-point independent constant current and constant voltage power supply, complete protection functions, stable operation, selected materials, fine craftsmanship, higher service life than peers, and fast inspection speed.

2, Technical excellence: The feeder-type energy-saving mode design is adopted, which has high energy-saving efficiency, flexibility, and humanized intelligent operation. The product linearity, accuracy and speed have reached high standards, and the maintenance and upgrades are good for expansion.

3, Accuracy: Each battery fixture is designed with the internationally popular four-wire principle, which avoids the superimposition of the internal resistance of the tester on the internal resistance of the battery and makes the test results more accurate.

4, Flexible: When the battery under test has low voltage, undercurrent, overvoltage, or overcurrent, the control system will close this channel and separate the battery from the device.

5, Cost-effective: rich experience, strong technology, professional management team, wide range of product use and praise from customers, the performance indicators and product quality of similar products have the most cost-effective advantages.

6, 7*24 hours after-sales service: The product is guaranteed for one year, free of charge and careful technology.

Product Specification

model	S11-512-6A
Device channel number	The whole machine has a total of 512 channels
Dimensions	Length 1684MM, width 756MM, height 1840MM, chassis width 500MM
Chassis color	Standard blue and black (customizable)
Fixture form	65 blue and white buckle
Fixture spacing	85CM
Support battery specifications	Polymer battery
Power supply	Three-phase five-wire system AC380V±10%, 50HZ
Working power consumption	≤8KW
working environment	Temperature 0~40℃, relative humidity≤80%
Cooling method	Natural intake, upward exhaust

Product Application

8/40/64/80/256/512 Channel Battery Cell/Pack Testing System Battery Tester
