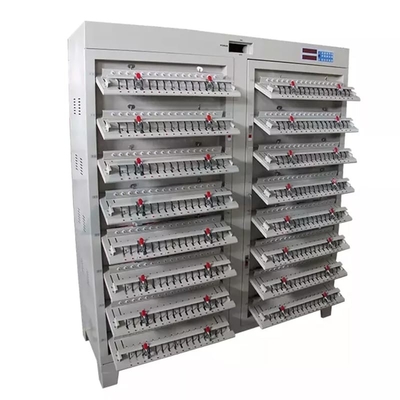

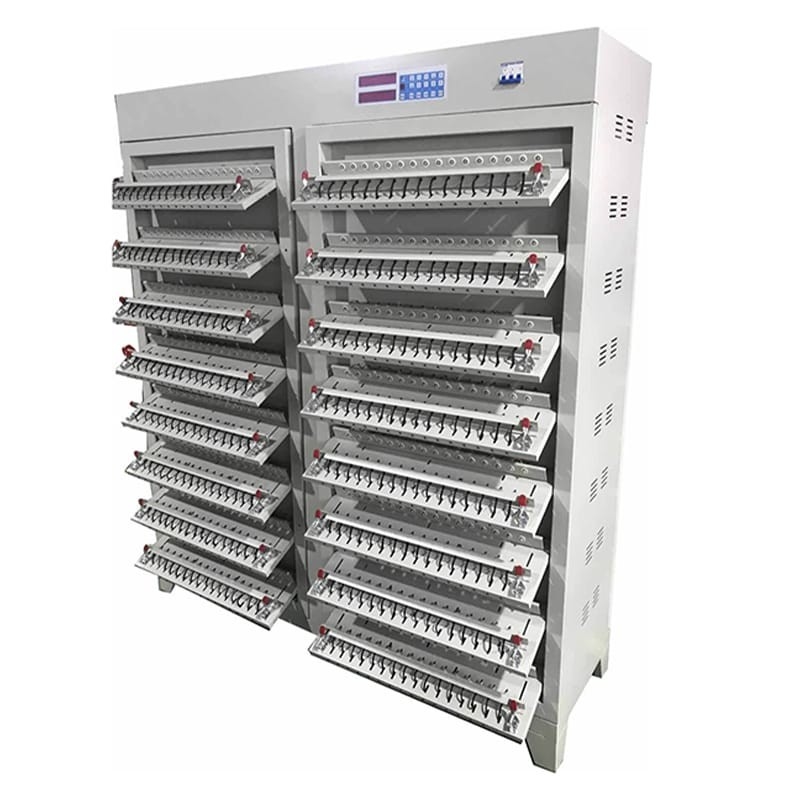

Automatic Lipo Battery Cell Grading Machine 5V 6A 512 Channels
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | 512 Channels Battery Charge And Discharge Testing Machine | Model: | S11-512-6A |
|---|---|---|---|
| Input: | 220V 50/60 Hz | Power: | 20 Kw |
| Channels: | 512 Channels | Battery Type: | Cylindrical Battery |
| Charging Current: | Range: 0-5v For Charging, 0.8v-5v For Discharging Accuracy: ±(0.05% Of Reading + 0.1% Of Range) | Current: | Range: 5mA – 2/3/5 A Accuracy: ±(0.05% Of Reading + 0.1% Of Range) |
| Weight: | 210KG | Size: | 2000*400*2000 Mm |
| Highlight: | XWELL Battery Cell Grading Machine,6A Battery Cell Grading Machine,512 Channels lipo battery voltage tester |
||
Product Description
Battery Forming and Grading Machine Automatic 5V6A 512 Channel Battery Charging Discharging Load Tester Testing Equipment
Product Description
This is an 512-channel battery analyzer with three measurements to analyze small coin cells,pouch cell and cylindrical batteries . Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc.
Product Features
This sub-container cabinet is equipped with digital display and buttons, which can display the voltage, current and time of charging and discharging, and set the corresponding parameters
Self-developed and designed control board, which controls the number of multi-channel books, and can communicate with PC, with corresponding testing and calibration software
With 512 independent channels, and with a cylindrical battery holder, the battery can be charged, suspended and discharged, with
intelligent protection measures.
Product Specification
|
Product Name
|
512 channels battery charge and discharge testing machine
|
|
Model
|
S11-512-6A |
|
Input
|
220V 50/60 Hz
|
|
Power
|
20 Kw
|
|
Channels
|
512 channels
|
|
Battery Type
|
Cylindrical battery
|
|
Charging current
|
Range: 0-5v for charging, 0.8v-5v for discharging Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Current
|
Range: 5mA – 2/3/5 A Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Weight
|
210KG
|
|
Size
|
2000*400*2000 mm
|
XWELL supply all kinds of battery grading machine
