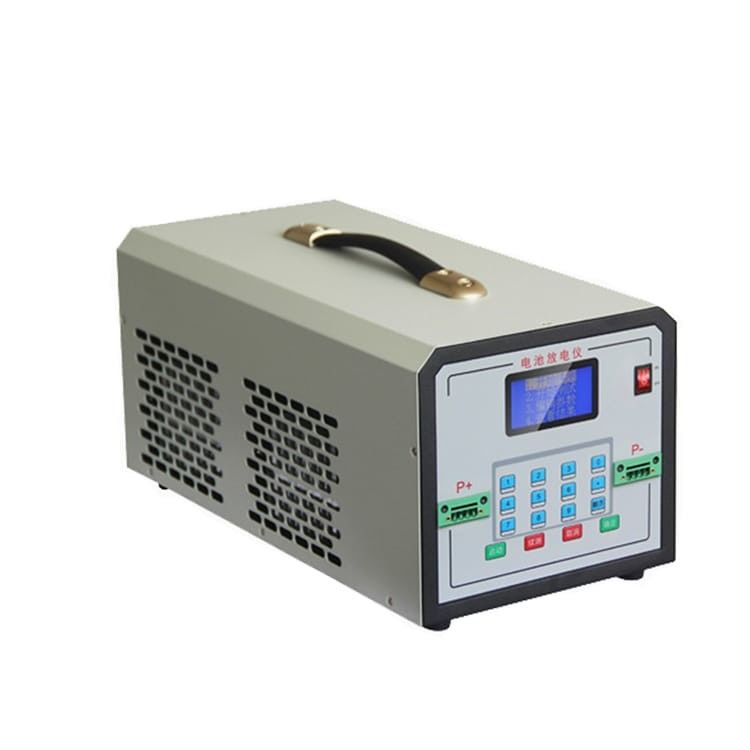

Lithium Cells Battery Aging Machine , 800W Battery Discharge Test Equipment

Brand Name:	XWELL
Model Number:	BCDS100-20-40
MOQ:	1pcs
Price:	USD 2000/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Input Power:

AC 220V ±10% / 50Hz

Discharge Accuracy:

0.20%

Discharge Range:

0-40000mA

Constant Voltage Cut-off Current:

Minimum 10mA

Data Recording Interval:

>5S

Discharge Power:

<800W

Sound Intensity:

<50dB

Supply Ability:

100 pcs per month

Highlight:

800W Battery Aging Machine

Lithium Cells Battery Aging Machine

battery discharge test equipment

Product Description

Lithium Cells Battery Pack Aging Cabinet Tester Discharging Ageing Machine

Product Description

Charge discharge test equipment is mainly used for lithium battery charge discharge cycle test.

Test Items

Battery charging protection voltage, discharge protection voltage, capacity, etc. The device has four test steps: charging, discharging, shelving and cycling. By editing the corresponding steps, the battery can be tested according to the set process.

Product Features

Charge Discharge Function:

With constant current and voltage charging function, constant current discharge function, charge and discharge the battery, record the battery capacity.

Charge and Discharge Interface:

It can fully meet the requirements of the same port and separate port of charge and discharge, that is, 2 wires (P+P-) and 3 wires (P+P-C -). At the same time, the power tool battery (CH+P+P-) can be aged for positive plate charging protection and negative plate discharging protection.

Check Voltage Protection:

By charging and discharging the battery, the charging protection and discharging protection of the battery are detected.

Safeguard:

Anti reverse connection protection function;

The upper and lower limits of voltage are protected;

Safety discharge current protection.

Online Mode:

If the instrument is single or less than 5, it can be connected to PC through serial port; Under the network connection mode of more than 5 computers, only one network port needs to be provided at the PC terminal to control less than 60 instruments.

Control System:

The software system adopts the classic mature C/S mode. There are two communication modes: serial port and network. Serial port can realize the accurate communication of several instruments in a short distance, and network can realize the accurate communication of multiple instruments in a long distance.

Upper Computer Software:

Based on Windows operation interface, SQL database is used to store test data, which is very convenient for staff to query and export data online. According to battery bar code, time and equipment number, the charge discharge aging curve can be viewed, and the curve can be exported at the same time.

Product Specification

Input power	AC 220V ±10% / 50Hz
Discharge Accuracy	0.20%
Discharge Range	0-40000mA
Constant Voltage Cut-off Current	Minimum 10mA
Data Recording Interval	>5S
Discharge power	<800W
Sound Intensity	<50dB
Channel	1 channels
