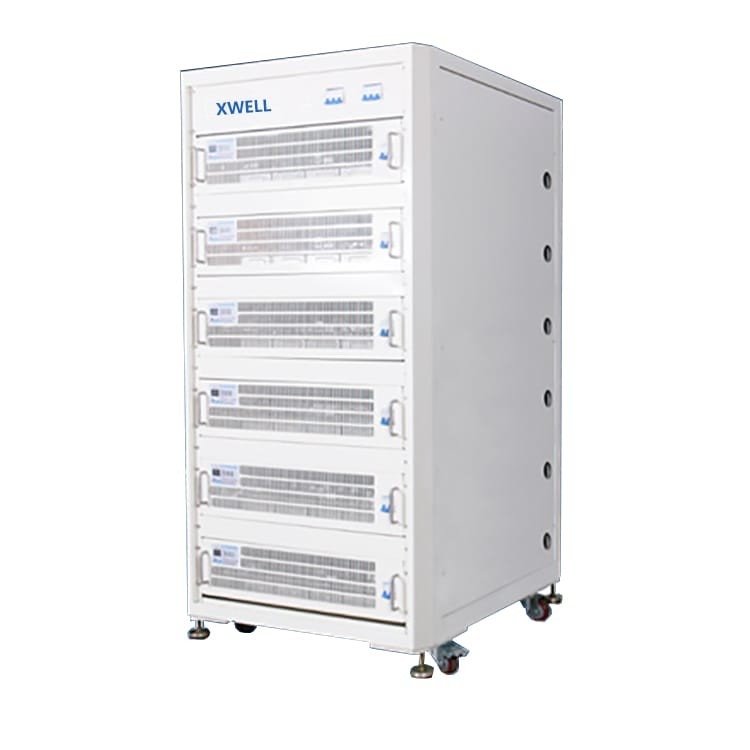

14000mA Battery Aging Machine Charge Discharge Tester 800W Power
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS100-20-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Item: | Battery Charging And Discharging Aging Machine | Model: | BCDS100-20-40 |
|---|---|---|---|
| Input Power: | AC 220V ±10% / 50Hz | Discharge Accuracy: | 0.20% |
| Charging Range: | 1-10mA | Discharge Range: | 0-14000mA |
| Constant Voltage Cut-off Current: | Minimum 10mA | Data Recording Interval: | >5S |
| Discharge Power: | <800W | Sound Intensity: | <50dB |
| Highlight: | 14000mA Battery Aging Machine,800W Battery Aging Machine,Lithium battery charge discharge tester |
||
Product Description
Professional Lithium Battery Charge And Discharge Test Aging Cabinet Aging Machine
Product Features
1,The energy flows in two directions, and the discharge energy is fed back to the power grid efficiency ≥ 93% (DC bus efficiency).
2,The middle computer and the lower computer both use 32-bit ARM chip can bus communication, the data transmission speed is fast and the performance is stable.
3,DCAC module adopts space vector modulation technology and digital control, which makes the voltage utilization rate higher and the current harmonic shunt smaller.
4,DCDC module adopts advanced PID control technology and multiple software / hardware protection mechanism to ensure the stability of equipment operation.
5,Fast output current conversion, no overshoot phenomenon, avoid the impact of the device on the battery pack.
6,CAN2.0 interface, which can access BMS data of battery pack, can control battery pack status in real time during charging and discharging process.
7,Support the same port and different port battery aging test.
8,Voltage detection adopts 4-wire system.
9,Integrated anti reverse connection module to prevent battery reverse connection.
10,Charge / discharge status LED indication. Charge / discharge curve analysis diagram. Support scan code function.
11,It can be integrated into the production line, cooperate with the production rhythm, and can also be detected separately.
12,Be able to communicate with pack production line, such as OPC, Ethernet and other interface protocols.
13,Support battery pack temperature acquisition.
The voltage of the equipment is 60V / 100V, and the current is 20A / 30A / 40A / 50A / 60A
Product Specification
|
Item
|
Battery Charging and Discharging Aging Machine
|
|
Model
|
BCDS100-20-40
|
|
Input power
|
AC 220V ±10% / 50Hz
|
|
Discharge Accuracy
|
0.20%
|
|
Charging Range
|
1-10mA
|
|
Discharge Range
|
0-14000mA
|
|
Constant Voltage Cut-off Current
|
Minimum 10mA
|
|
Data Recording Interval
|
>5S
|
|
Discharge power
|
<800W
|
|
Sound Intensity
|
<50dB
|
|
Channel
|
12channels
|
|
Chassis dimensions
|
45*30*17mm
|
|
Cabinet size
|
600*450*170mm
|
