12v 18650 Battery Discharge Tester 4000w Discharge Power SQL Database
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BCDS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Test Range: | 0-100V | Accuracy: | ±1‰ |
|---|---|---|---|
| Charge Range: | 200-20000mA | Charge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 200-40000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Min 200mA | Discharge Power: | ≤4000w |
| Inspection Time: | ＜2s | ||
| Highlight: | battery discharge tester 12v,4000w 18650 battery discharge tester,18650 battery discharge tester |
||
Product Description
Charge Discharge Capacity Battery Tester For 12V/24V/36V/48V/72V Battery Pack Aging Machine
Product Description

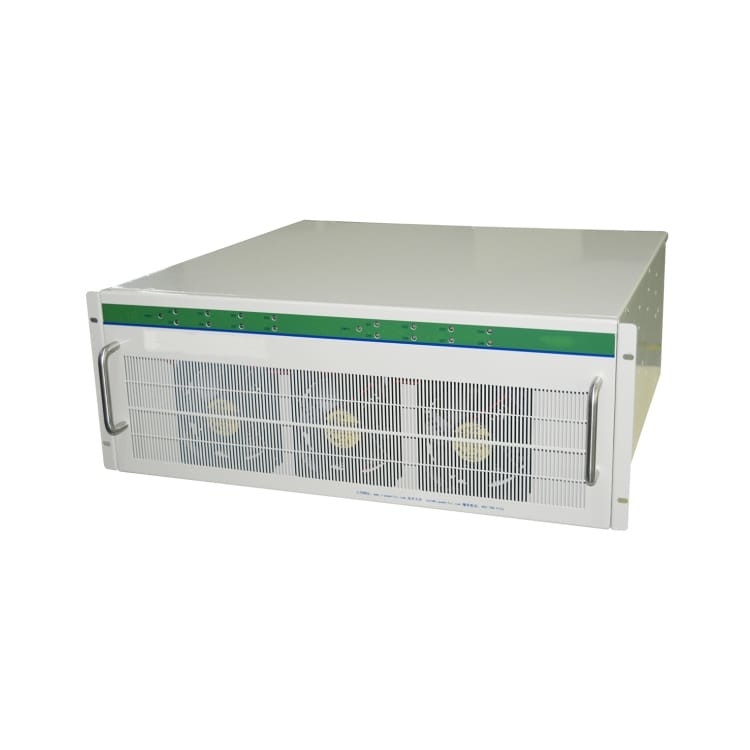

The 100V 10A charging 20A discharging aging machine is used for lithium battery pack charging discharging aging test.
The charge discharge aging system mainly includes PC software, USB hub,
router, aging instrument. The core is aging instrument, aging 32 bit ARM chip was chosen
as main control chip, compared to the traditional microcontroller in the execution speed
greatly improved, measuring voltage and current accuracy is higher, through the RS232,
network transmission data.
Product Features
1. With constant current and constant voltage charging function
2. with constant current discharge function
3. fully meet the battery charge and discharge with mouth and separation requirements,
that is, 2 lines (P+ P-) and 3 lines (P+ P- C-). At the same time, the CH+ P+ P- can be
used to protect the negative plate discharge by aging the positive plate charging
protection.
4. by charging and discharging the battery, the charge protection and discharge protection
of the battery can be detected.
5. charge and discharge the battery, record the charge capacity and discharge capacity of
the battery.
6., anti reverse protection function, upper and lower voltage set protection, safety
discharge current protection (maximum current 10A);
7. Within 10 machines, through the serial port to connect the PC computer;; more than 10
sets of equipment, you can use the network connection mode. In this way, PC computer
only need to provide a network port, you can control less than 254 instruments.
8 aging instrument software system using the classic mature C/S model
9. based on the Windows interface, the use of MYSQ database storage test data, and can
export curves.
Product Specification
|
Item
|
XW-BCDS
|
|
|
Power supply
|
AC220V 50Hz
|
|
|
Power
|
2000W
|
|
|
Voltage
|
Test range
|
0-100V
|
|
Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
|
Current
|
Charge range
|
200-20000mA
|
|
Charge accuracy
|
±(0.2% of reading +0.2% of range)
|
|
|
Discharge range
|
200-40000mA
|
|
|
Discharge accuracy
|
±(0.2% of reading +0.2% of range)
|
|
|
Charge
|
Constant voltage cut-off current
|
Min 200mA
|
|
Capacity
|
Accuracy
|
±1‰
|
|
Power
|
Discharge power
|
≤4000w
|
|
Time
|
Inspection time
|
＜2s
|
|
Timing range
|
0-999 h/steps
|
|
|
Data record interval
|
≥5s
|
|
|
Channels per box
|
1
|
|
|
Charge
|
Charge mode
|
Constant current and constant voltage charging
|
|
Cut-off condition
|
Voltage, current, relative time, overcharge protection
|
|
|
Discharge
|
Discharge mode
|
Constant current discharge
|
|
Cut-off condition
|
Voltage, relative time, overcharge protection
|
|
|
Cycle
|
Cycle test range
|
1-999 times
|
|
Max steps in one cycle
|
100
|
|
|
Voltage current sample
|
4 wires
|
|
|
Database
|
SQL
|
|
|
Communication
|
TCP/IP, Serial port
|
|
Product Operation
1. Setting the parameters of the battery pack on the computer.

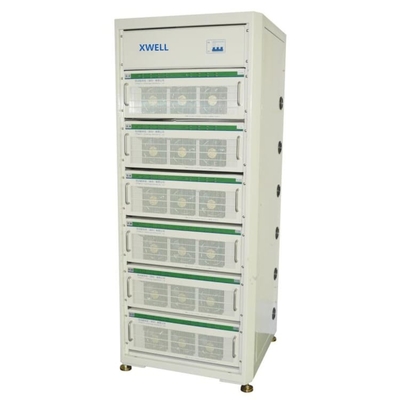

2. Put the battery pack into the carbinet.
3. Press the start button, it automatically complete all testing and grading actions.
