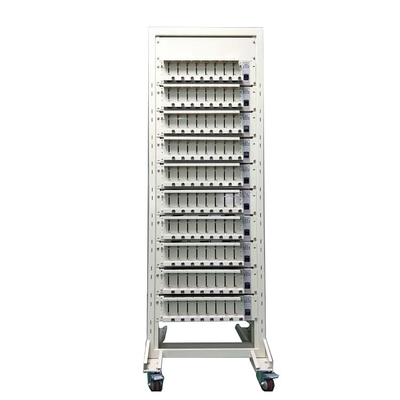

10A Battery Aging Machine , 5V Mah Tester For Battery 2000W Power
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-5V-5A-10A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Power Supply: | AC220V 50Hz | Power: | 2000W |
|---|---|---|---|
| Test Range: | 0-5V | Accuracy: | ±1‰ |
| Charge Range: | 200-5000mA / 10000mA | Charge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 200-5000mA / 10000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Min 200mA | ||
| Highlight: | 5V mah tester for battery,2000W Battery Aging Machine,10A Battery Aging Machine |
||
Product Description

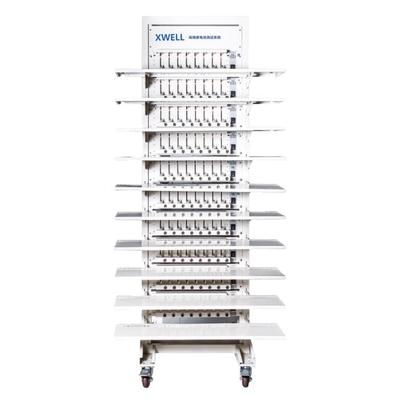

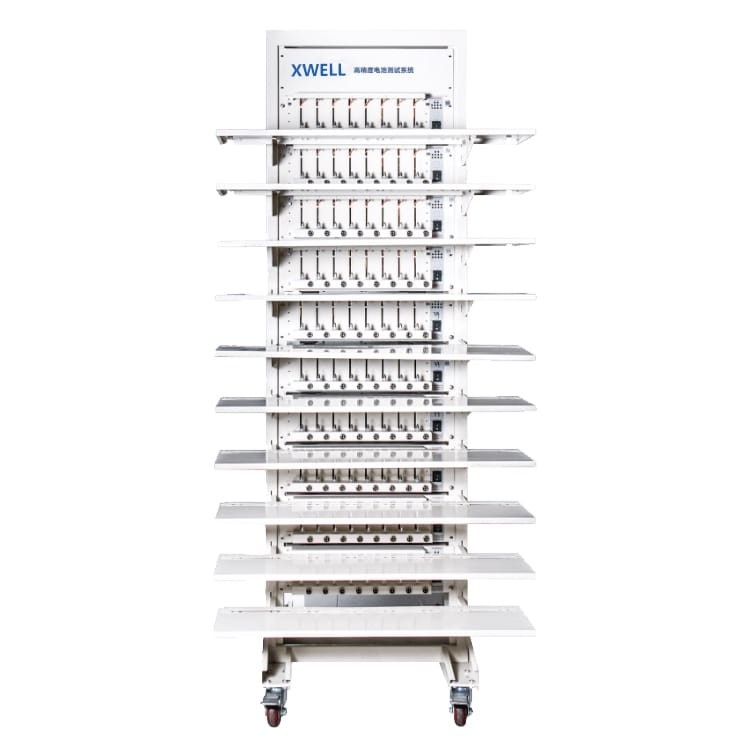

5V 6A 10A Charge And Discharge Battery Pack Testing Aging Machine
Product Description
The Battery Pack Charge and Discharge Aging Machine is mainly used for the charge and discharge cycle test of the finished lithium battery.
The test items include: battery charge protection voltage, discharge protection voltage, battery capacity, etc.; the equipment has 4 test steps of charging, discharging, shelving, and cycling. You can make the battery test in accordance with the set process.
The test functions are:
1) Battery charge protection voltage
2) Discharge protection voltage
3) Battery capacity
Product Features
1) Single channel control technology, each channel is independent of each other
2) Anti-reverse connection protection function, data is automatically saved in real time
3) Two communication methods: serial port and network
4) Data output to Excel, TXT
Product Specification
|
No
|
Item
|
XWELL
|
|
|
1
|
Power supply
|
AC220V 50Hz
|
|
|
2
|
Power
|
2000W
|
|
|
3
|
Voltage
|
Test range
|
0-5V
|
|
Accuracy
|
±(0.2% of reading +0.2% of range)
|
||
|
4
|
Current
|
Charge range
|
200-5000mA / 10000mA
|
|
Charge accuracy
|
±(0.2% of reading +0.2% of range)
|
||
|
Discharge range
|
200-5000mA / 10000mA
|
||
|
Discharge accuracy
|
±(0.2% of reading +0.2% of range)
|
||
|
5
|
Charge
|
Constant voltage cut-off current
|
Min 200mA
|
|
6
|
Capacity
|
Accuracy
|
±1‰
|
|
7
|
Power
|
Discharge power
|
≤4000w
|
|
8
|
Time
|
Inspection time
|
＜2s
|
|
Timing range
|
0-999 h/steps
|
||
|
9
|
Data record interval
|
≥5s
|
|
|
10
|
Channels per box
|
1
|
|
|
11
|
Charge
|
Charge mode
|
Constant current and constant voltage charging
|
|
Cut-off condition
|
Voltage, current, relative time, overcharge protection
|
||
|
12
|
Discharge
|
Discharge mode
|
Constant current discharge
|
|
Cut-off condition
|
Voltage, relative time, overcharge protection
|
||
|
13
|
Cycle
|
Cycle test range
|
1-999 times
|
|
Max steps in one cycle
|
100
|
||
|
14
|
Voltage current sample
|
4 wires
|
|
|
15
|
Database
|
SQL
|
|
|
16
|
Communication
|
TCP/IP, Serial port
|
|
|
17
|
Data output
|
EXCEL, TXT
|
|
|
18
|
Size
|
800*520*1370mm
|
|
|
19
|
Battery cabinet size
|
720*400*420mm
|
|
