5V 60A High Rate Discharge Tester , 65dB Battery Life Cycle Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-5V-60A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channels Feature: | Independent Pairs Of Closed Loop For Constant | Energy Feedback: | The Discharge Energy Can Be Fed Back To The Grid |
|---|---|---|---|
| Channels Control Mode: | Independent Control | Noise: | ≤65dB |
| Database: | MySQL | Communicatin: | TCP/IP |
| Data Export: | EXCEL、TXT、CSV、PDF、Plot/Graph | Disk Drive: | 500GB |
| Operating System: | Windows 7/8/10 64 Bit | Dimensions（W*D*H）(mm): | W*D*H：600*800*1300(mm) |
| Highlight: | 5V high rate discharge tester,65dB high rate discharge tester,60A battery life cycle tester |
||
Product Description

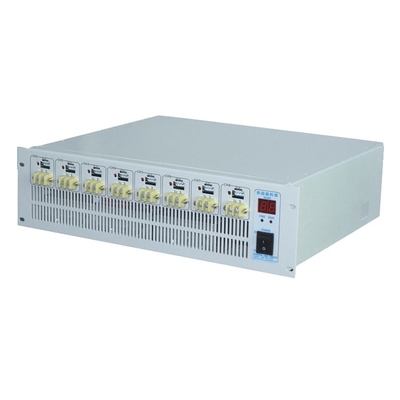

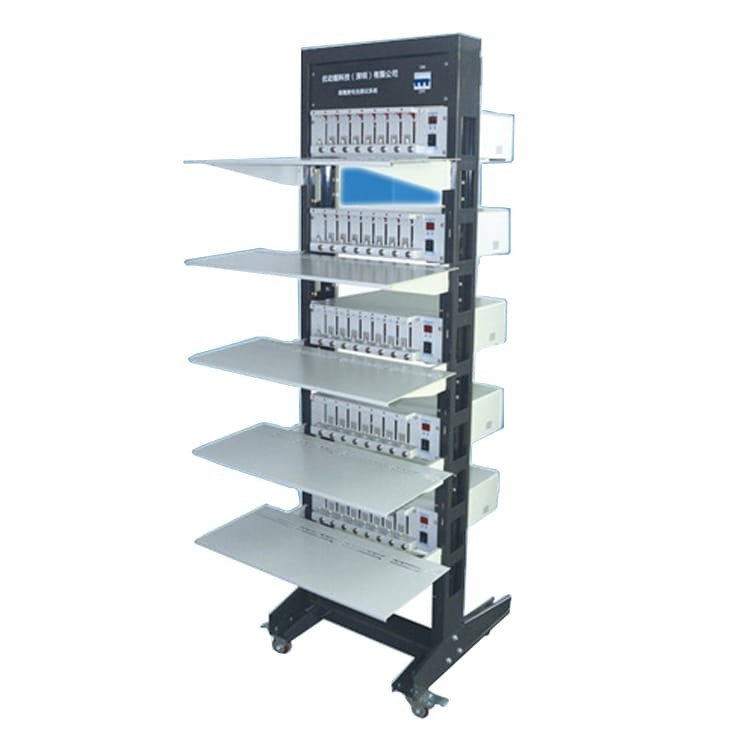

5V 60A Battery Pack Charge and Discharge Battery Tester EV Battery Life Cycle Aging Testing Tester
Product Description
Battery Pack Charge and Discharge Tester EV Battery Life Cycle Aging Testing Tester is mainly used for lithium battery charge and discharge cycle test and lithium battery pack charging discharging aging test. Test items include battery charge protection voltage, discharge protection voltage, capacity, etc.
The device has fourtest steps: charging, discharging, shelving, and cycling. By editing the corresponding steps, the battery can be tested according to the set process.
Product Features
1. In the network mode, it is automatically online without manual connection.
2. Use Mysql database to save the data to ensure that the data will not be lost, and provide the measurement data back-check function.
3. A small number of instruments can communicate with PC software through the serial port.
4. Many instruments can use network software to communicate with PC, which reduces the computer interface. Only one interface is needed to control all the instruments, ensuring the real-time and integrity of the communication data.
5. The instrument provides P + and P interfaces, as well as CH + and CH- interfaces, which can be used to measure special finished batteries and charge and discharge on the instrument.
Product Specification
|
Items
|
Values
|
|
Number of channels
|
4 CH
|
| Max voltage | 5V |
| Max current | 60A |
|
Dimensions(W*D*H)(mm)
|
W*D*H:600*800*1300(mm)
|
|
Efficiency of Charge and discharge
|
>85%
|
|
Protection level
|
IP20
|
|
Channels parallel
|
supported,
Parallel channels do not support pulse and simulation testing |
|
Channels feature
|
Independent pairs of closed loop for constant
|
|
Energy feedback
|
The discharge energy can be fed back to the grid
|
|
Channels control mode
|
Independent control
|
|
Noise
|
≤65dB
|
|
Database
|
MySQL
|
|
Communicatin
|
TCP/IP
|
|
Data export
|
EXCEL,TXT,CSV,PDF,Plot/Graph
|
|
Disk drive
|
500GB
|
|
Operating system
|
Windows 7/8/10 64 bit
|
|
Communication port
|
Ethernet port, CAN communication supports communication
with BMS to obtain cell voltage and temperature in BMS |
|
|
Power-off data protection
|
|
Off-line operation mode
|
|
|
User-defined protection conditions,
such as upper and lower limited current/voltage, delay time, temperature, etc. |
