220V Battery Aging Machine 50mA - 6000mA With Parameter Recording Function
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS100-20-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Power: | AC 220V ±10% 50Hz | Testing Range: | 0-5V |
|---|---|---|---|
| Accuracy: | ±1‰ | Charging Range: | 50-6000mA |
| Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) | Discharge Range: | 50-6000mA |
| Highlight: | 220V Battery Aging Machine,Recording Battery Aging Machine,6000mA battery cycle life tester |
||
Product Description

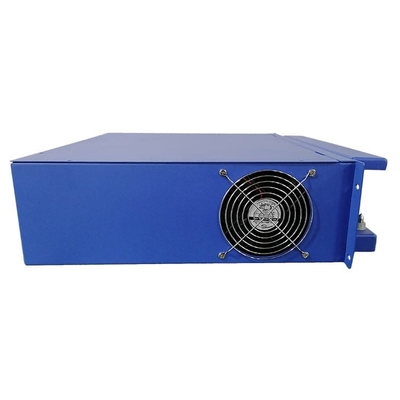

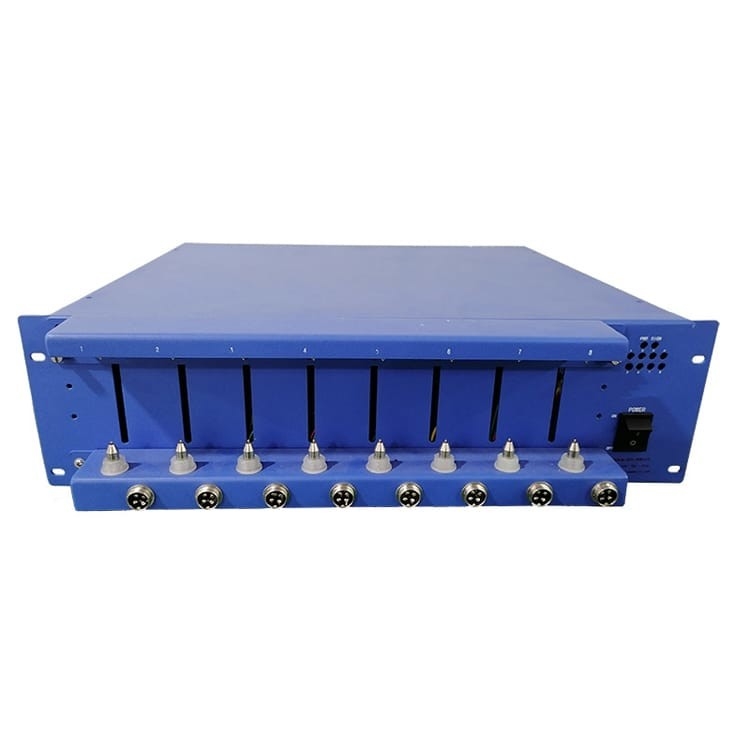

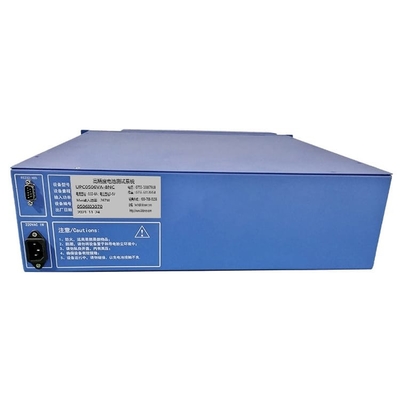

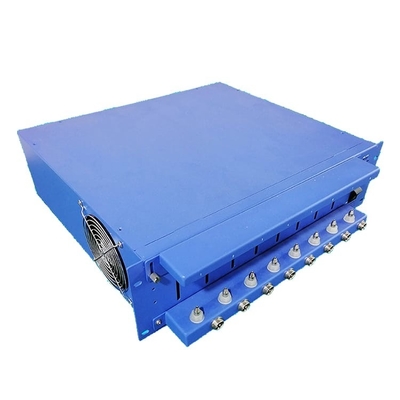

5V 6A 8 Channel Battery Charging & Discharging Testing Machine & Aging Cabinet With Parameter Recording Function
Product Description
Factory Direct Sale Battery Charging&Discharging Testing Machine & aging Cabinet with parameter recording function
Product Technical Parameter
Input power:AC 220v+/-10%/50Hz
Voltage: 0-5V
Current: charge range: 0-6A
discharge range: 0-6A
Charge:Min10mA
Discharge power :below 1400W
Time : Patrol time :under 5s
Timer range :0-999hours /step
Product Features
1.with constant current and constant voltage charging function .
2.with constant current discharging function .
3.By charging and discharging the battery ,the charge protection and discharge protection of the battery can bedetected.
4. Charging and discharging the battery,record the charge capacity and discharge capacity of battery.
Product Specification
|
Input power
|
AC 220V ±10% 50Hz
|
|
|
Voltage
|
Testing range
|
0-5V
|
|
Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
|
Electric current
|
Charging range
|
50-6000mA
|
|
Charging accuracy
|
±(0.2% of reading +0.2% of range)
|
|
|
Discharge range
|
50-6000mA
|
|
|
Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
|
Charge
|
Constant voltage cut-off current
|
50mA minimum
|
|
Capacity
|
Accuracy
|
±1‰
|
|
Power
|
Discharge power
|
≤700W
|
|
Time
|
Inspection time
|
Receive real time <2S
|
|
Timing range
|
0-999 hours/step
|
|
|
Data logging interval
|
≥5S
|
|
|
Number of cabinet channels
|
96 channels
|
|
|
Charge
|
Charging mode
|
Constant current and constant
voltage charging |
|
Cut-off condition
|
Voltage, current, relative time,
overcharge protection. |
|
|
Cycle
|
Cycle test range
|
1-999
|
|
Number of single cycle steps
|
100
|
|
|
Voltage and current
detection sampling |
Four-wire sampling
|
|
|
Database
|
Use SQL database to manage test data
|
|
|
Host computer
communication method |
Based on TCP/IP protocol, serial port
|
|
