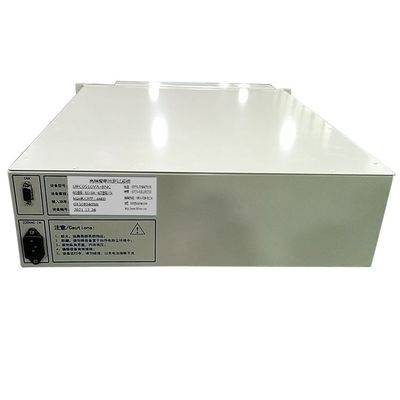

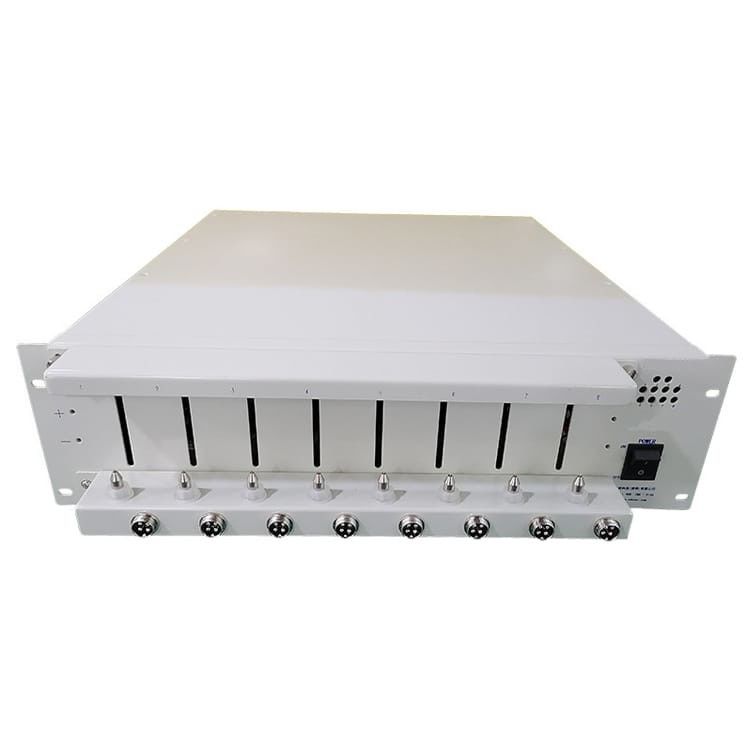

8 Channel High Rate Discharge Cell Tester , Lithium Ion Battery Capacity Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-5V10A8CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Power: | AC 220V ±10% / 50Hz | Discharge Accuracy: | 0.20% |
|---|---|---|---|
| Charging Range: | 1-10A | Discharge Range: | 0-10A |
| Constant Voltage Cut-off Current: | Minimum 10mA | Data Recording Interval: | >5S |
| Discharge Power: | <800W | Sound Intensity: | <50dB |
| Channel: | 8 Channels | Chassis Dimensions: | 45*30*17mm |
| Highlight: | 10A high rate discharge cell tester,8 Channel high rate discharge cell tester,lithium ion battery capacity tester |
||
Product Description
5V 10A 8 Channel Lithium Battery Pack Charging and Discharging Tester Aging Machine
Product Description
XW-5V10A8CH charging and discharging test equipment is mainly used for the charging and discharging cycle test of lithium batteries. The test items include: battery charging electric protection voltage, discharge protection voltage, capacity and so on. The device has four test steps of charging, discharging, setting and cycling. The battery can be tested according to the set process by editing the corresponding work steps.
Product Advantages
1. Power battery simulation, C-rate test.
2.Life cycle test.
3.Power test, capacity test, energy density test.
4.Power battery virtual distribution: charge/discharge curve fitting, battery consistency test and evaluation.
5.High rate charge/discharge test.
6.Power battery, serial energy-storage battery module test: single cell voltage, Single cell temperature monitoring(high-voltage equipment).
Product Specification
|
Item
|
Battery Charging and Discharging Aging Machine
|
|
Model
|
XW-5V10A8CH
|
|
Input power
|
AC 220V ±10% / 50Hz
|
|
Discharge Accuracy
|
0.20%
|
|
Charging Range
|
1-10A
|
|
Discharge Range
|
0-10A
|
|
Constant Voltage Cut-off Current
|
Minimum 10mA
|
|
Data Recording Interval
|
>5S
|
|
Discharge power
|
<800W
|
|
Sound Intensity
|
<50dB
|
|
Channel
|
8 channels
|
|
Chassis dimensions
|
45*30*17mm
|
|
Cabinet size
|
600*450*170mm
|
