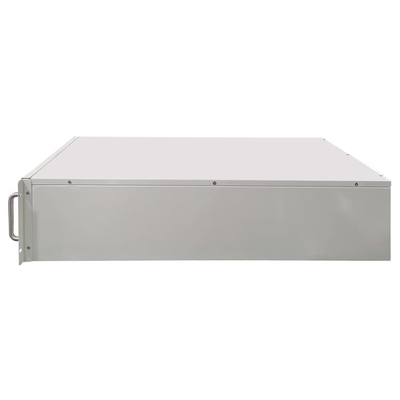

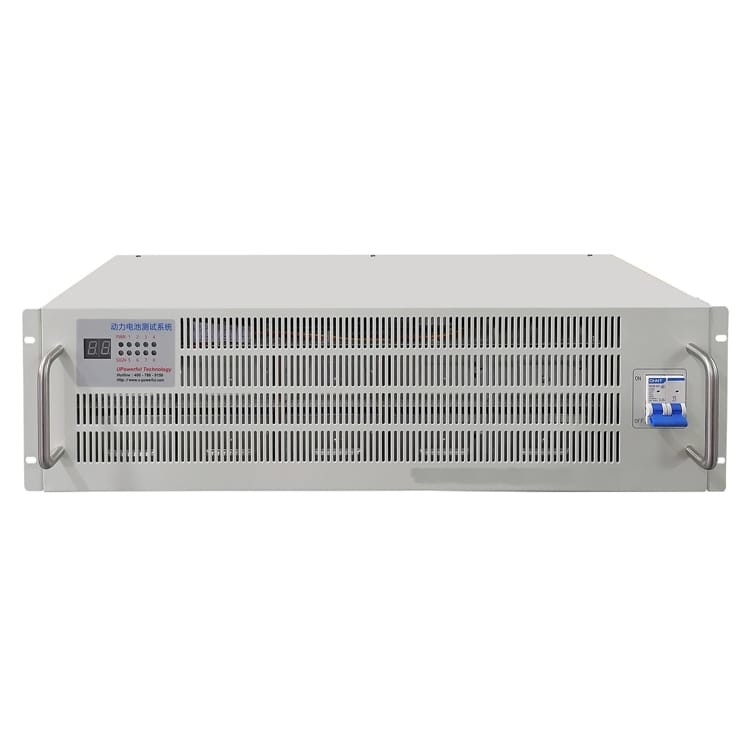

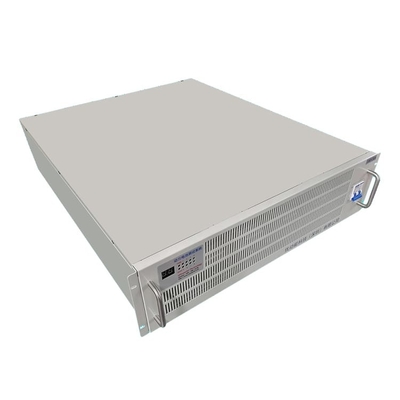

50dB Battery Aging Machine Charge And Discharge Machine 75V 20A 2 Channel
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW75V-20A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Power: | AC 380V ±10% / 50Hz | Measuring Range: | 10~75V |
|---|---|---|---|
| Accuracy: | ±(0.2% Of Reading + 0.2% Of Range) | Charging Range: | 0~20A |
| Charging Accuracy: | ±(0.2% Of Reading + 0.2% Of Range) | Discharge Range: | 0~20A |
| Median Version: | 1.1 Series | Charging Mode: | Constant Current And Constant Voltage Charging |
| Cut-off Condition: | Voltage, Current, Relative Time, Overcharge Protection | Discharge Mode: | Constant Current Discharge |
| Highlight: | 50dB Battery Aging Machine,2 Channel Battery Aging Machine,20A battery charge and discharge machine |
||
Product Description
75V 20A 2 Channel Battery Charge And Discharge Machine Battery Aging Machine For Testing Battery
Product Advantages
1.In network mode, online automatically, no manual connection is required.
2.Use Mysql database to save data, to ensure that data will not be lost, provide measurement data back-check function.
3.A small number of instruments, you can communicate with PC software through serial port.
4.Many instruments can use network to communicate with PC software, reduce the computer interface, only one interface, you can control all instruments, to ensure the real-time and integrity of communication data.
5.The instrument provides P + and P-interfaces, as well as CH + and CH-, which can measure special finished batteries and charge and discharge on an instrument.
Product Specification
| Power | AC 380V ±10% / 50Hz | |
| voltage | Measuring range | 10~75V |
| Accuracy | ±(0.2% of reading + 0.2% of range) | |
| Electric Current | Charging range | 0~20A |
| Charging accuracy | ±(0.2% of reading + 0.2% of range) | |
| Discharge range | 0~20A | |
| Accuracy | ±(0.2% of reading + 0.2% of range) | |
| Charging | Constant voltage cut-off current | Lowest 10mA |
| Capacity | Accuracy | ±1‰ |
| Power | Discharge power | Less than or equal to 2000W |
| Time | Inspection time | Receive real time <2S |
| Timing range | 0~999 H/ step | |
| Data recording interval | ≥5S | |
| Median version | 1.1 Series | |
| Charging | Charging mode | Constant current and constant voltage charging |
| Cut-off condition | Voltage, current, relative time, overcharge protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, relative time, over-discharge protection | |
| Circulates | Cyclic range | 1 ~ 999 times |
| Single cycle number of steps | 100 | |
| Voltage and current detection sampling | Four wire connection | |
| Noise | <50dB | |
| Database | Using My SQL database to manage test data | |
| Communication Mode of upper computer | Based on TCP / Ip Protocol, serial port | |
| Data output mode | EXCEL,TXT,Chart | |
| Communication interface | Mesh opening | |
| Number of channels per cabinet | 12 | |
| Case size | W*D*H:450MM*300MM*170MM | |
| Cabinet size | W*D*H:900MM*600MM*190MM | |
