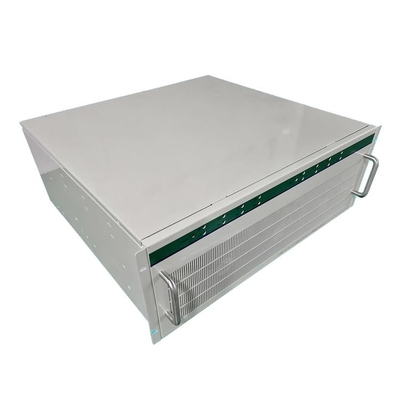

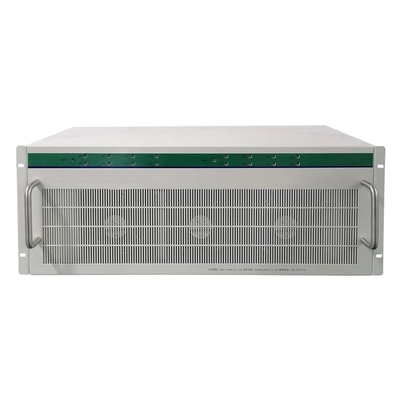

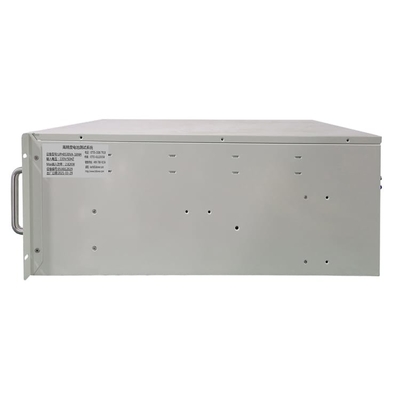

Lithium Ion Battery Aging Machine 16 Channel Charging And Discharging Tester

Product Description

5V 30A 16 Channel Charging Discharging Battery Pack Aging Machine Battery Charging And Discharging Aging Machine

Product Description

The XW series aging cabinet is mainly used for the charge and discharge cycle test of the finished lithium battery.
The test items include: battery charge protection voltage, discharge protection voltage, capacity, etc.;
the equipment has 4 test steps of charging, discharging, shelving, and cycling
By editing the corresponding steps, the battery can be tested according to the set process.

Product Features

1.Charging function: with constant current and constant voltage charging function.
2.Discharge function: with constant current discharge function.

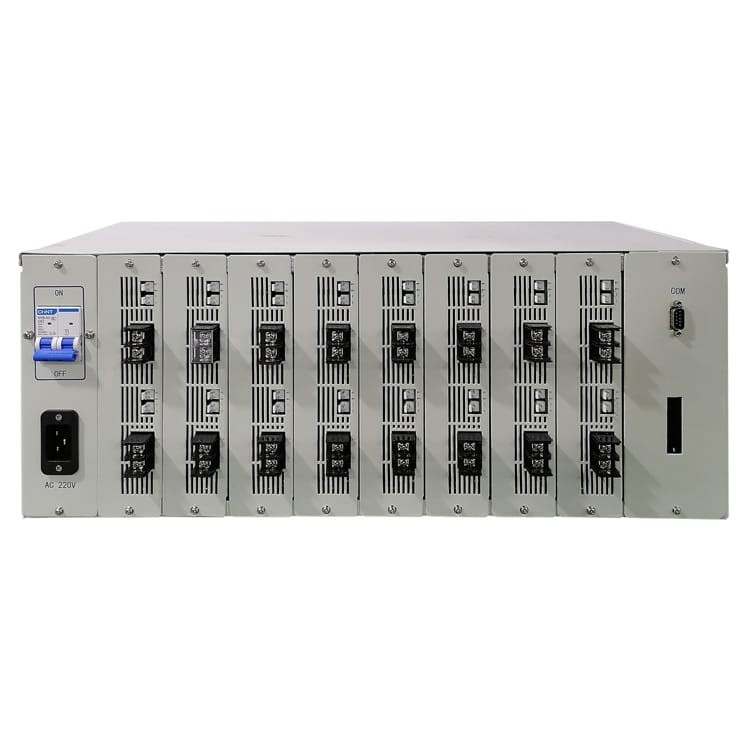

3.Charging and discharging interface: fully meet the requirements of charging and discharging the same port and charging and discharging separate ports of the battery pack, that is, 2 wires (P+ P- C-).
4.At the same time, it can age the power tool battery (CH+ P+ P-) with positive charge protection and negative plate discharge protection.
5.Check voltage protection: By charging and discharging the battery, you can check whether the battery's charge protection and discharge protection are working.
6.Charge and discharge the battery, record the charge and discharge capacity.
7.Safety protection: anti-reverse connection protection function; voltage upper and lower limit setting protection; safe discharge current protection.
8.Serial connection mode: If the instrument is single or less than 3, it can be connected to the PC through the serial port, which greatly reduces the complexity of using the instrument.
9.Network connection mode: If the customer chooses more than 3 devices, the network connection mode can be used, so that the PC computer only needs to provide a network port to control less than 60 instruments.
10.Control system:The software system of the aging instrument adopts the classic and mature C/S mode, and the communication methods include serial port and network. The serial port mode can realize the accurate communication of several instruments in a short distance, and the network mode can realize the accurate communication of multiple instruments in a long distance. In network mode, one server can control up to 60 instruments, realizing the unified operation of multiple instruments.
11.Management software: Based on the windows operation interface, the SQL database is used to store test data, which greatly facilitates the staff to query and export data online. According to the battery bar code, time, and device number, the charge and discharge aging curve can be viewed, and the curve can be exported.

Product Specification
