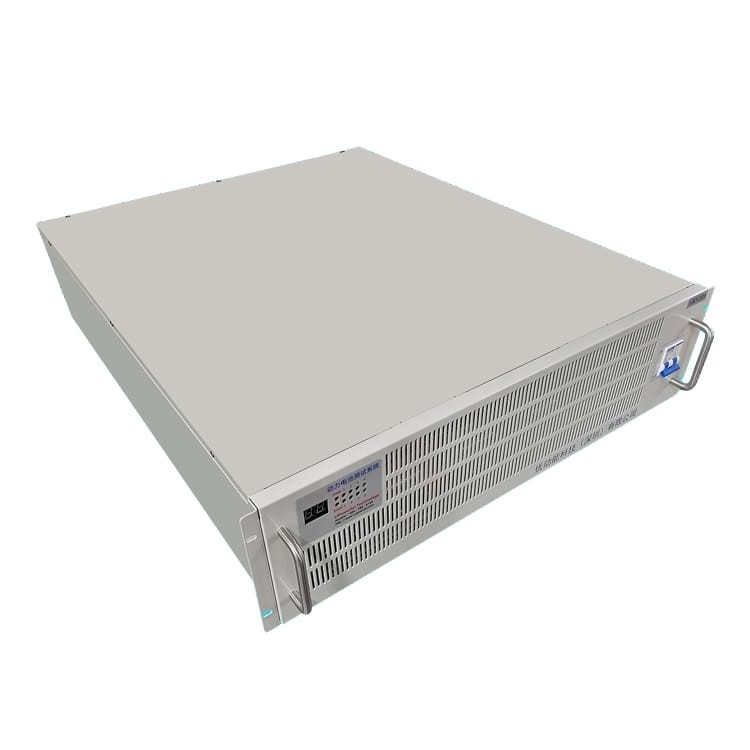

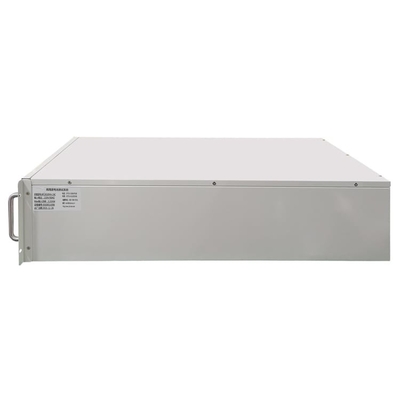

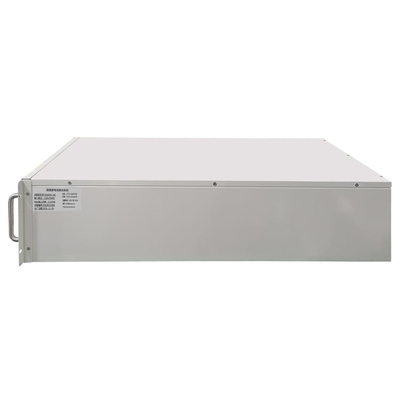

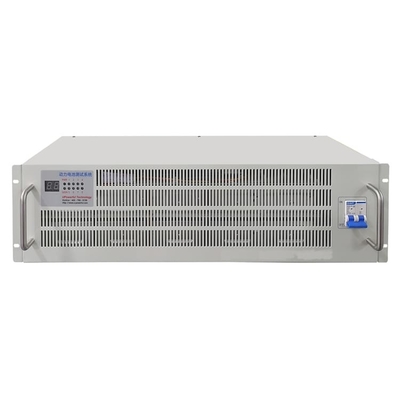

30V Battery Charge Discharge Tester , 1 Channels 100a Battery Load Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW30V-100A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Warranty:: | 1 Years | Place Of Origin:: | Guangzhou, Guangdong,China |
|---|---|---|---|
| Product Name:: | Aging Machine | Feature:: | Store Testing Data In MYSQL |
| Voltage:: | 30V | Charging Current:: | 100A |
| Discharging Current:: | 100A | Color:: | Picture |
| Package:: | Plywood Case | MOQ:: | 1 Set |
| Highlight: | 30V battery charge discharge tester,battery charge discharge tester,1 Channels 100a battery load tester |
||
Product Description
30V 100A 1 Channels Battery Automatic Charge And Discharge aging Machine for Lithium Battery
Product Description
This machine is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.
1.In the network mode, it is connected automatically, without manual connection.
2.Use MYSQL database to save data to ensure that data will not be lost
3.The instrument number is displayed through LED lights
4.The battery can be charged as long as the battery is in the test range
5.In addition to the P+ and P- interfaces, the instrument also provides CH+ and CH-, which can test special finished batteries and charge and discharge them on one instrument.
batteries and charge and discharge them on one instrument.
| Charging function | With constant current and constant voltage charging function |
| Discharge function | With constant current and current limiting discharge function |
| Charge and discharge interface | Fully meet the requirements of charging and discharging the same port and separate charging and discharging of the battery pack, that is, 2 wires (P+ P-) and 3 wires (P+ P- C-) |
| Equipped with a usb interface | It is used for scanning gun to collect the ID number of the battery pack, which is convenient for data query after battery aging |
| Security protection | Anti-reverse protection function |
| Voltage upper and lower limit setting protection | |
| Safe discharge current protection (maximum current 10A) | |
| Charging requirements | Charging voltage 0-70V, continuously adjustable, accuracy ±1mV(high precision dedicated) |
| Charging current 0-5000mA, continuously adjustable, accuracy ±1mA (high precision dedicated) | |
| Discharge requirements | Discharge voltage 0-70V, accuracy ±1mV (high precision dedicated) |
| Discharge current 0-10A, accuracy ±1mA (high precision dedicated) | |
| Discharge capacity error 1‰ (high precision dedicated) |
Product Specification
| Warranty: |
1 years
|
| Place of Origin: |
Guangzhou, Guangdong,China |
| Product name: |
Aging Machine
|
| Feature: |
Store testing data in MYSQL
|
| Voltage: |
30V
|
| Charging current: |
100A
|
| Discharging current: |
100A
|
| Color: |
|
| Package: |
Plywood Case
|
| MOQ: |
1 Set
|
