Lithium Battery Charge And Discharge Tester 30V 10A Heavy Duty
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS100-20-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Power: | AC220V±10%/50Hz | Measuring Range: | 0-30V |
|---|---|---|---|
| Accuracy: | ±(0.2% Of Reading +0.2% Of Range) | Charging Range: | 200-10000mA |
| Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) | Discharge Range: | 200-20000mA |
| Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) | Constant Voltage Cut-off Current: | Minimum 200mA |
| Highlight: | Lithium battery charge and discharge tester,30V battery charge and discharge tester,heavy duty battery discharge tester |
||
Product Description

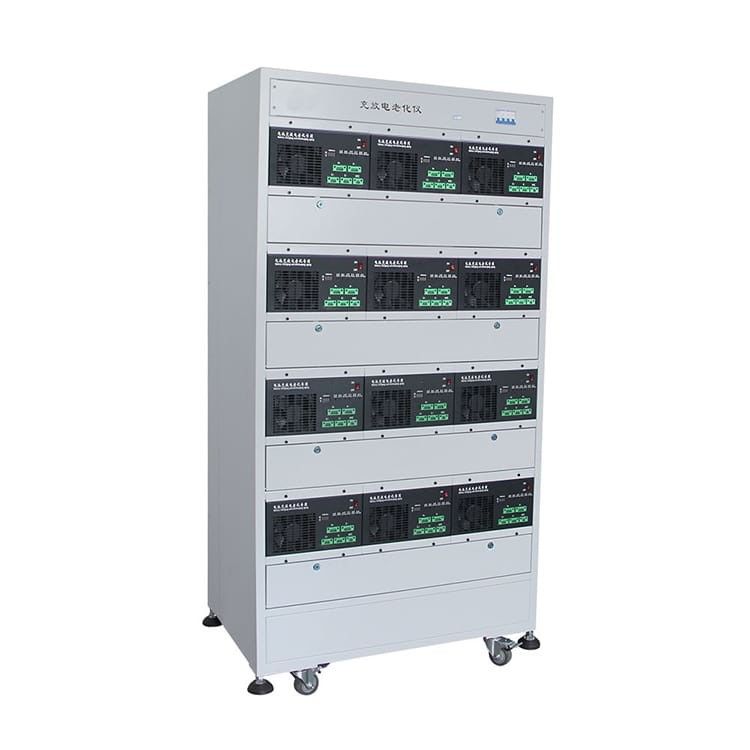

30V 10A 20A Lithium Battery Pack Charge And Discharge Tester Aging Machine
Product Description
The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.
Product Features
1. Single Point Control Technology
2. Each channel is independent of each other.
3. Anti-backup protection function
4. Automatic real-time data preservation
5. Two communication modes: serial port and network
Product Specification
| Technical Parameter | ||
| Input power | AC220V±10%/50Hz | |
|
Voltage
|
Measuring Range | 0-30V |
| Accuracy | ±(0.2% of reading +0.2% of range) | |
|
Current
|
Charging Range | 200-10000mA |
| Charging Accuracy | ±(0.2% of reading +0.2% of range) | |
| Discharge Range | 200-20000mA | |
| Discharge Accuracy | ±(0.2% of reading +0.2% of range) | |
| Charge | Constant Voltage Cut-off Current | Minimum 200mA |
| Capacity | Accuracy | ±1% |
| Power | Discharge Power | ≤4KW |
|
Time
|
Inspection Time | Real-time Collection<2S |
| Timing Range | 0-999h/step | |
| Data Recording Interval | ≥5S | |
| Middle Machine Version | 1:1 series | |
|
Charge
|
Charging Mode | Constant Current and Constant Voltage Charging |
| Cut-off condition | Voltage, Current, Relative Time, Overcharge Protection | |
|
Discharge
|
Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, Relative Time and Over-discharge Protection | |
|
Loop
|
Cyclic measurement range | 1-999 times |
| Single cycle step number | 100 | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port | |
| Cabinet size | 800x520x1370mm | |
| Spatial Dimension of Discharge Battery | 720x400x420mm | |
