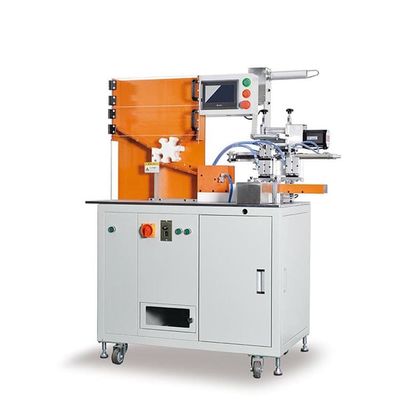

Automatic Sticker Labeling Machine , 18650 21700 50100 Lithium Battery Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Gas Source: | 0.5-0.8Mpa | Function Style: | Stepper Drive With Pneumatic |
|---|---|---|---|
| Input Voltage: | AC220V | Sticker Matrials: | Barley Paper Or PVC |
| Sticker Matrials Size: | Barley Paper Maxium 350mm;Scroll Internal Diameter 72-75MM | Adaptable Battery Cell: | 18650 Battery |
| Power: | Electric Power Or Pneumatic | Control Instrument: | 7.5feet Contact Screen,PLC Programming Machine And Step Motor |
| Electrodes To The Body Distance: | 100 Mm (Scalable Adjustable) | External Dimensions: | 1.2M*0.9M*1.7M |
| Highlight: | 21700 automatic sticker labeling machine,aa cr123 automatic sticker labeling machine,50100 lithium battery machine |
||
Product Description
aa cr123 Battery Padding Sticking Machine aaa 18650 21700 50100 Cylinder Cell Labeling Sticker Machine
Product Features
1.Using hopper feed, one-time can put 450-500PCS cell (the machine can work about 10 minutes) , can also be gradually added.
2.The insulating highland barley paper uses the roll material, reduces the waste, saves the cost.
3.The double manipulator takes and puts the battery, guarantees the battery to transfer freely from the channel normally.
4.Equipment debugging is simple, easy to learn, fixed parameters, with manual operation and one-step operation and automatic operation procedures.
5.Equipment with fault alarm, according to the prompt to clear the fault
Product Specification
|
Input gas source
|
0.5-0.8Mpa
|
|
Function style
|
Stepper drive with pneumatic
|
|
Input voltage
|
AC220V
|
|
Sticker matrials
|
Barley paper or PVC
|
|
Sticker matrials size
|
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM
|
|
Adaptable battery cell
|
18650 battery
|
|
Power
|
Electric power or pneumatic
|
|
Control instrument
|
7.5feet contact screen,PLC programming machine and step motor
|
|
Electrodes to the body
distance |
100 mm (Scalable adjustable)
|
|
Producivity
|
4000pcs/h; singal 4pcs
|
|
External dimensions
|
1.2M*0.9M*1.7M
|
|
Power
|
<3KW
|
|
Sticker efficiency
|
>80PPM
|
|
Sticker Frame Material
|
High quality thick cold rolled steel sheet, aluminium material
|
|
Indoor temperature
|
-30℃-50℃
|
|
Indoor humidity
|
Above 55%
|
Battery sticking machine details
